ALTRONIX

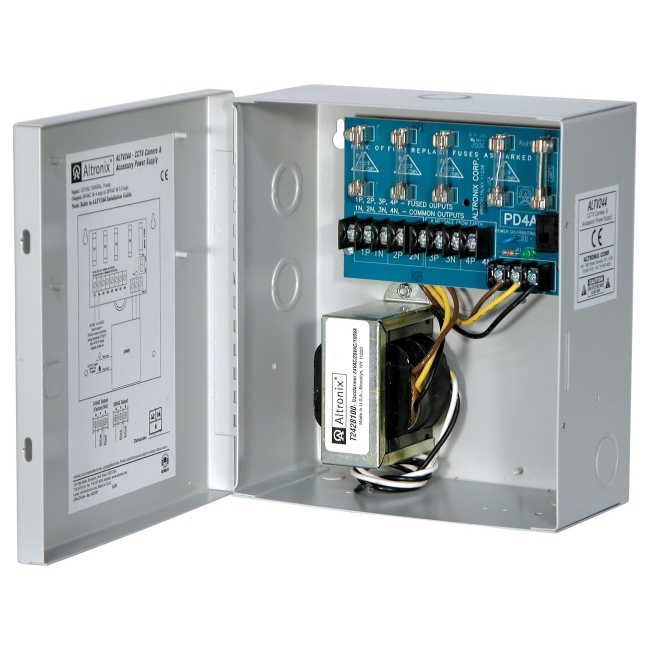

ALTV244 Altronix Close Circuit TV Camera AC Power Supply
Mfg Part Number: ALTV244 , Item #: 321498
Image may not reflect the actual item.
Price: $140.61
+ Free Shipping
Quantity:
More to Come
Last Updated: Oct 14, 2025
No Sales Tax except these states
, PO and Wire.
Model ALTV244 provides 24VAC or 28VAC distributed via four (4) fuse protected outputs.
Main Specification
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | ALTV244 |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Altronix |
| Product Name | Close Circuit TV Camera AC Power Supply |
| Packaged Quantity | 1 |
| Product Type | Proprietary Power Supply |
| Power Description | |
| Input Voltage Type | AC |
| Input Voltage | 115 V AC |
| Output Voltage | 28 V AC |
| Output Voltage | 24 V AC |
| Input Current | 900 mA @ 110V |
| Controls/Indicators | |
| Status Indicators | AC power LED indicator |
| Physical Characteristics | |
| Height | 8.5" |
| Width | 7.5" |
| Depth | 3.5" |
| Weight (Approximate) | 6.80 lb |
| Miscellaneous | |
| Additional Information |
|
| Compatibility | Close Circuit TV cameras, heaters, and other video accessories |
| Certifications & Standards | CE |
| Country of Origin | United States |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | Lifetime |
MODEL-ALTV244 VENDOR-ALTRONIX CORP.
FEATURES- The Altronix ALTV244 CCTV Power Supply is designed with four (4) individually fused outputs for powering CCTV Cameras and other video accessories. It will provide 24VAC distributed via four (4) fused outputs with a total of 4 amps continuous supply current.
SPECIFICATIONS
*Input 115VAC 50 / 60 Hz, .9 amps
* 4 amps (100VA) supply current.
* Four (4) 24VAC individually fused outputs.
* Output fuses are rated at 3.5 amps / 250VAC.
* Main fuses are rated at 5 amps / 250VAC.
* AC power LED indicator.
* Power ON/OFF switch.
* Spare fuse included.
* Surge protected outputs.
* Unit maintains camera synchronization.
* Ease of installation saves time and eliminates costly labor.
Enclosure dimensions: 8.5"H x 7.5"W x 3.5".
http://www.altronix.com/p_html/ALTV244.htm
