SIIG

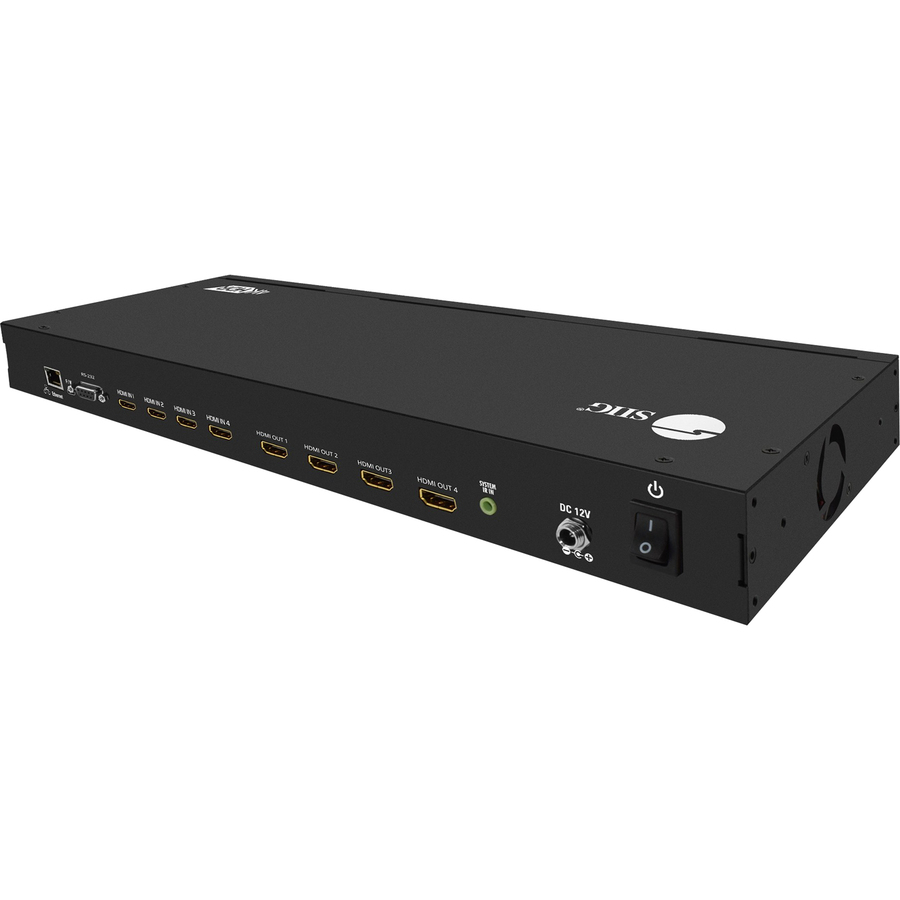

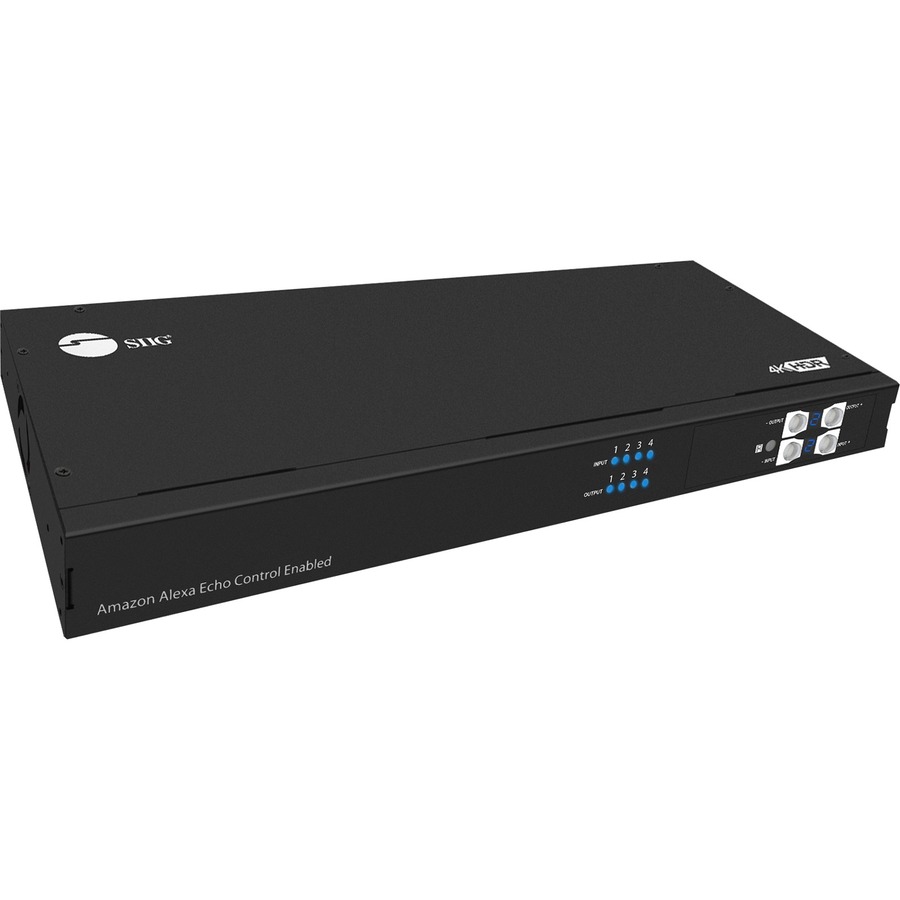

SIIG CE-H23H11-S1 HDMI 2.0 4X4 MATRIX W/AMAZON ECHO CTRL ENABLED
Mfg Part Number: CE-H23H11-S1 , Item #: 3120142
Image may not reflect the actual item.
Price: $494.97
+ Free Shipping
Quantity:
In Stock: 7
Last Updated: Aug 29, 2025
No Sales Tax except these states
, PO and Wire.
Allows you to select and switch between any of the 4 HDMI source devices to display on any of the 4 HDMI displays simultaneously

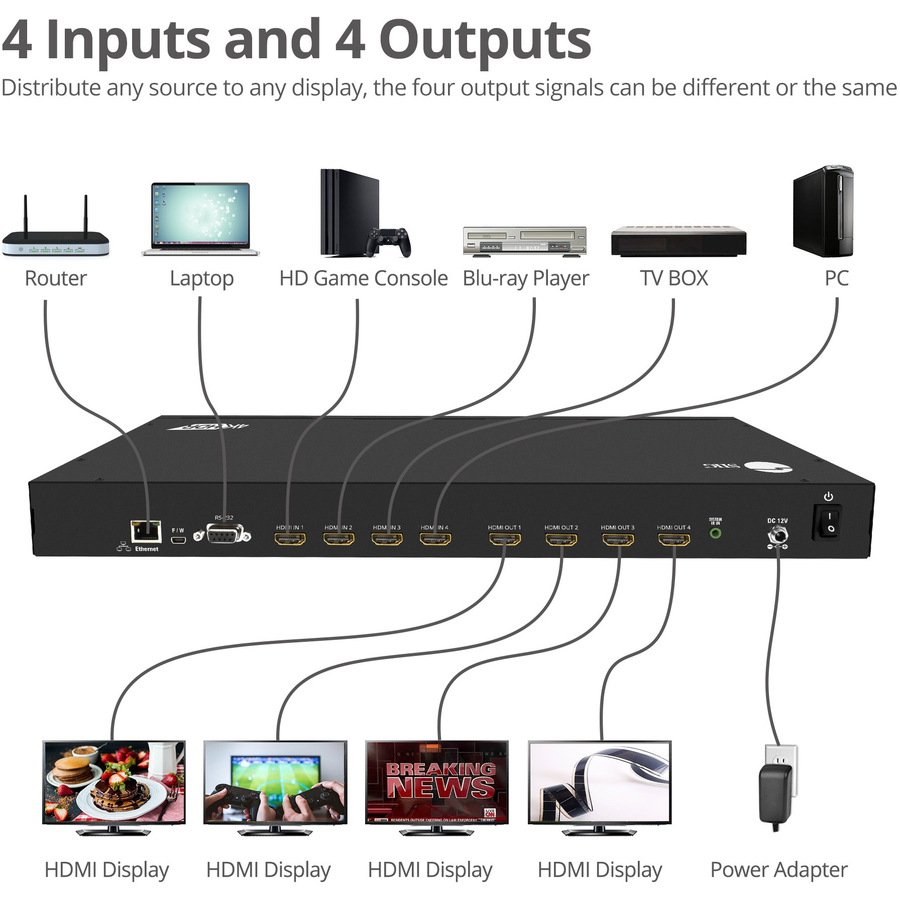

- Allows any of the four HDMI monitors to display content from any of the four HDMI sources simultaneously

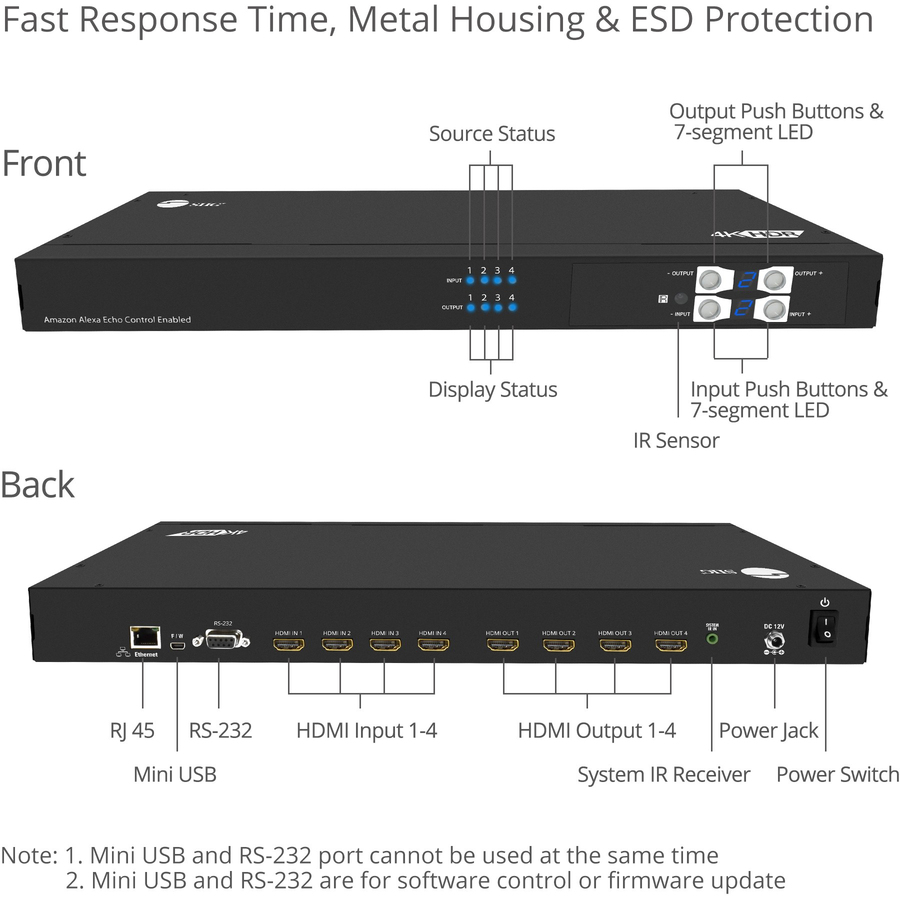

- Easily switch between HDMI source and display using push button, IR remote control, RS-232, and Ethernet control
- Supports fast HDMI link response time below 3 sec for device switching
- Supports resolution up to 4Kx2K @60Hz YUV 4:4:4, 8bit
- Supports HDR 4Kx2K @60Hz YUV 4:2:0, 10bit
- Supports default EDID and EDID learning of the connected displays
- Metal housing for excellent RF shielding and heat dissipation, delivers reliable performance and long life
- Included mounting ears let you easily mount this product on the wall or shelf
- Works with Amazon Alexa Echo voice control for convenient device and display switching
Main Specification
| General Information | |
| Manufacturer | SIIG, Inc |
| Manufacturer Part Number | CE-H23H11-S1 |
| Manufacturer Website Address | http://www.siig.com |
| Brand Name | SIIG |
| Product Name | HDMI 2.0 4x4 Matrix with Amazon Echo Control Enabled |
| Product Type | Audio/Video Switchbox |
| Technical Information | |
| Connectivity Technology | Cable |
| Number of Input Devices Supported | 4 |
| Device Supported | Set-top Box |
| Device Supported | Notebook |
| Device Supported | Computer |
| Device Supported | Gaming Console |
| Device Supported | Blu-ray Disc Player |
| Device Supported | DVD Player |
| Device Supported | Media Player |
| Device Supported | Display |
| Device Supported | TV |
| Number of Displays Supported | 4 |
| Video | |
| Graphics Modes | 4K |
| Maximum Video Resolution | 4096 x 2160 |
| Interfaces/Ports | |
| HDMI In | Yes |
| HDMI Out | Yes |
| Connectivity (RJ-45) | Yes |
| Number of Connectivity (RJ-45) Ports | 1 |
| Number of USB Ports | 1 |
| Number of HDMI Inputs | 4 |
| Number of HDMI Outputs | 4 |
| Media & Performance | |
| Maximum Operating Distance | 32.81 ft |
| Physical Characteristics | |
| Form Factor | Wall Mountable |
| Form Factor | Rack-mountable |
| Height | 1.7" |
| Width | 6.9" |
| Depth | 17.3" |
| Weight (Approximate) | 5.21 lb |
| Miscellaneous | |

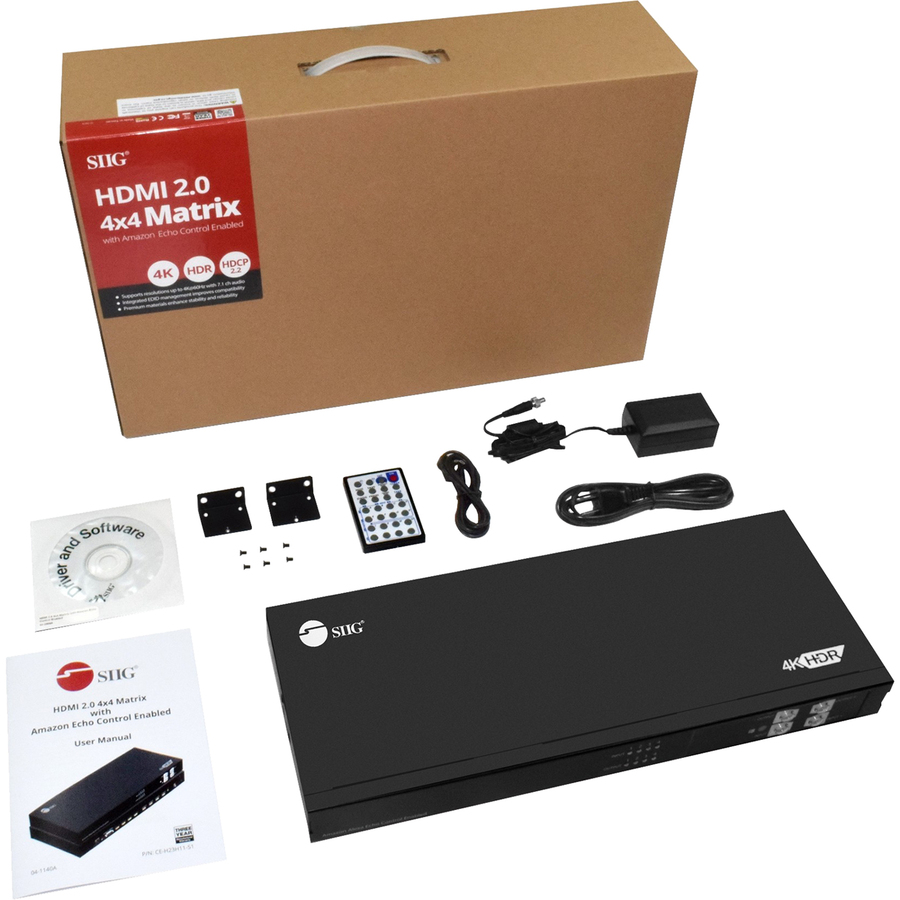

| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
