COMNET

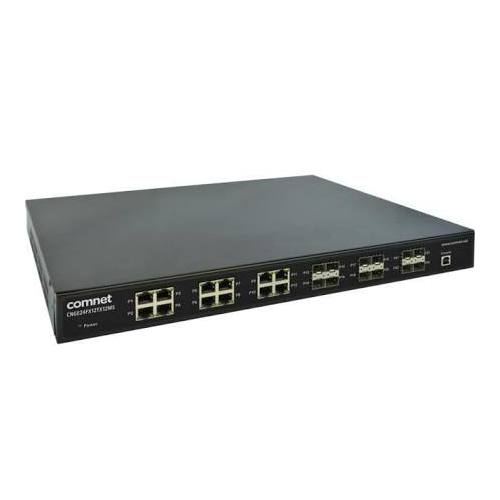

COMNET CNGE24FX12TX12MSPOE 24-Port Hardened Managed Ethernet Switch with (12) 10/100/1000Base-TX & (12) 100/1000Base-FX SFP Ports TX Ports provide 30w PoE Internal Power Supply
Mfg Part Number: CNGE24FX12TX12MSPOE , Item #: 3118937
, PO and Wire.
The ComNet CNGE24FX12TX12MS[POE] has twelve 100/1000Base-FX SFP ports and twelve 10/100/1000Base-TX ports. All SFP ports utilize ComNet SFP modules for fiber and connector type and distance. The IEEE802.3-compliant unit offers multiple Ethernet redundancy protocols (MSTP/RSTP/STP/ERPS (G.8032)) which protect your applications from network interruptions or temporary malfunctions by redirecting transmission within the network. The switch provides advanced IP-based management that can limit the maximum bandwidth for each connected IP device, allowing the user to adjust usage. The CNGE24FX12TX12MSPOE models provide twelve electrical ports supporting up to thirty watts of power. All PoE ports are IEEE 802.3at compliant. Each model is provided with redundant power inputs which can be either one mains voltage and one or two low voltage DC inputs or two low voltage DC inputs.
Features
- Supports IPV6 new internet protocol version
- Provided HTTPS/SSH protocol enhances network security
- Supports Device Binding security function
- IGMP v2/v3 (IGMP snooping support) for filtering multicast traffic
- Supports SNMP v1/v2c/v3 & RMON & 802.1Q VLAN Network Management
- Supports ACL, 802.1x User Authentication for security
- Multiple notifications warn of unexpected events
- Fast Redundancy/Recovery - MSTP/RSTP/STP (IEEE802.1s/w/D) and ERPS (G.8032)
- Supports IP-based bandwidth management
- Supports application-based QoS management
- Supports LLDP Protocol
- 19 inch rack mountable design
- Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput
- Web-based, Telnet and Console (CLI) configuration, and Windows-based (eVision) monitoring
- Supports Jumbo Frame up to 9.6KB for streaming video applications
- Multiple power supply options available including internal mains AC and/or dual external DC inputs
| General Information | |
| Manufacturer | ACRE |
| Manufacturer Part Number | CNGE24FX12TX12MSPOE |
| Manufacturer Website Address | http://www.acre-co.com |
| Brand Name | ComNet |
| Product Series | CNGE24FX12TX12MS[POE] |
| Product Name | CNGE24FX12TX12MS[POE] Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 24 |
| Modular | Yes |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet PoE+ |
| Port/Expansion Slot Details | 12 x Gigabit Ethernet Expansion Slot |
| Media & Performance | |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Gigabit Ethernet |
| Network Technology | 10/100/1000Base-TX |
| Network Technology | 1000Base-FX |
| I/O Expansions | |
| Total Number of Expansion Slots | 12.0 |
| Expansion Slot Type | SFP (mini-GBIC) |
| Shared SFP Slot | No |
| Number of SFP Slots | 12 |
| Network & Communication | |
| Layer Supported | 3 |
| Management & Protocols | |
| Manageable | Yes |
| Power Description | |
| Power Source | Power Supply |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Height | 17" |
| Width | 10" |
| Depth | 1.5" |
| Weight (Approximate) | 11 lb |
| Miscellaneous | |
| Country of Origin | United States |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
