CYBERPOWER
CYBERPOWER OL10KRT 10KVA 10KW ONLINE UPS 6U RT PF 1 208V IN OUT RMCARD205 INCL
Mfg Part Number: OL10KRT , Item #: 3109493
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.

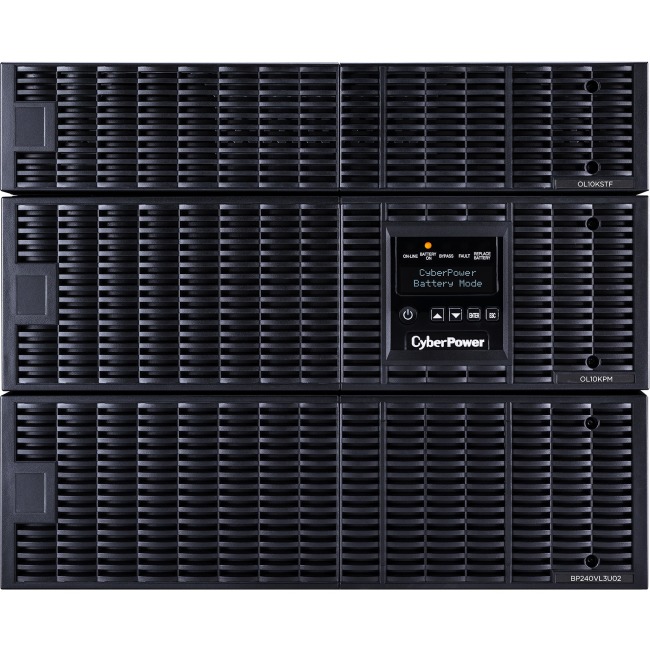

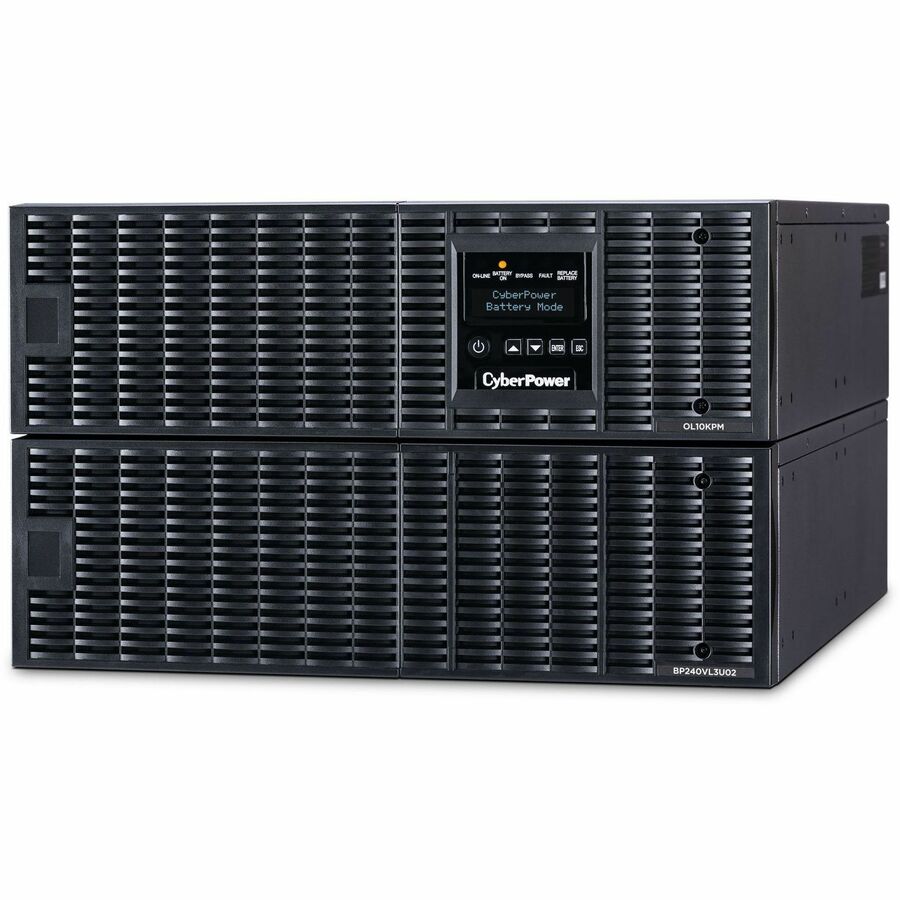

The CyberPower Smart App Online OL10KRT is a 6U rack/tower double-conversion UPS. It provides sine wave output to multiple types of critical IT infrastructure requiring seamless power protection. The OL10KRT is generator compatible and delivers consistent 200-240 V power with zero-transfer time. Automatic-bypass ensures connected equipment continues to operate seamlessly when an overload or internal fault is detected.
The OL10KRT features a removable LCD control panel to reposition it in a more convenient location (with optional DB-26 cable), and it has a RMCARD205 pre-installed network card. Smart-battery management charging technology increases battery life by up to 50%. Fast-charge technology helps replenish battery charge from 0-90% in five hours, regardless of the number of Extended Battery Modules (EBM) connected. The energy-saving GreenPower UPS™ ECO Mode allows the UPS to reach up to 97% efficiency to reduce power consumption and thermal dissipation.
This UPS can use the BP240VL3U01 extended battery module for more runtime. The OL10KRT comes with a three-year warranty (including batteries) and a $300,000 connected equipment guarantee.
| General Information | |
| Manufacturer | CyberPower Systems, Inc |
| Manufacturer Part Number | OL10KRT |
| Manufacturer Website Address | https://www.cyberpowersystems.com/ |
| Brand Name | CyberPower |
| Product Line | Smart App Online |
| Product Model | OL10KRT |
| Product Name | Smart App Online UPS OL10KRT 10KVA Tower/Rack Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | NEMA L6-30R |
| Receptacle Detail | 3 x NEMA L6-30R |
| Transfer Time | 0 ns |
| Dataline Protection | RJ-45 |
| Dataline Protection | RJ-11 |
| Protection Type | Backfeed |
| Protection Type | Short Circuit |
| EMI/RFI Noise Filter | Yes |
| Application/Usage | Server |
| Application/Usage | Network Device |
| Application/Usage | VoIP |
| Application/Usage | Storage Device |
| Circuit Breaker Current Rating | 63 A |
| Efficiency | 97% |
| Power Description | |
| Load Capacity (VA) | 10000 VA |
| Load Capacity (Watt) | 10 kW |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Input Voltage Range | 200 V AC - 240 V AC |
| Input Voltage Range | 120 V AC - 139 V AC |
| Output Voltage | 292 V AC |
| Output Voltage | 220 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 198 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 208 V AC |
| Output Voltage | 200 V AC |
| Input Frequency | 70 Hz |
| Input Frequency | 40 Hz |
| Output Frequency | 50.25 Hz |
| Output Frequency | 49.75 Hz |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 2430 J |
| Input Power Factor | 0.99 |
| Output Power Factor | 1 |
| Display & Graphics | |
| Display | LCD |
| Management | |
| Network Management | Dry Contact |
| Alarm | Battery Mode |
| Interfaces/Ports | |
| Serial Port | Yes |
| Network (RJ-45) | Yes |
| USB | Yes |
| USB (HID Compliant) Port | Yes |
| EPO Port | Yes |
| Battery Information | |
| Number of Batteries | 20 |
| Battery Characteristics | Sealed |
| Battery Chemistry | Lead Acid |
| Battery Size | 12V |
| Battery Capacity | 9000 mAh |
| Backup/Run Time (Full Load) | 3.60 Minute |
| Backup/Run Time (Half Load) | 10 Minute |
| Typical Battery Recharge Time | 5 Hour |
| Replaceable Battery | Yes |
| Environmental Conditions | |
| Maximum Operating Temperature | 104°F (40°C) |
| Maximum Operating Elevation | 10000 ft |
| Operating Humidity | 0% - 90% |
| Storage Relative Humidity | 0% - 95% |
| Sound Emission (A-Weighted) | 65 dB(A) |
| Thermal Dissipation | 941.05 W |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack/Tower |
| Rack Height | 6U |
| Height | 10.5" |
| Width | 17" |
| Depth | 26" |
| Weight (Approximate) | 226.59 lb |
| Miscellaneous | |
| Certifications & Standards | UL1778 5th Ed. |
| Energy Star | No |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
| Directly Connected Equipment Guarantee | $300000 Lifetime |
Remote Management Adapters
CyberPower RMCARD205 UPS & ATS PDU Remote Management Card - SNMP/HTTP/NMS/Enviro Port
