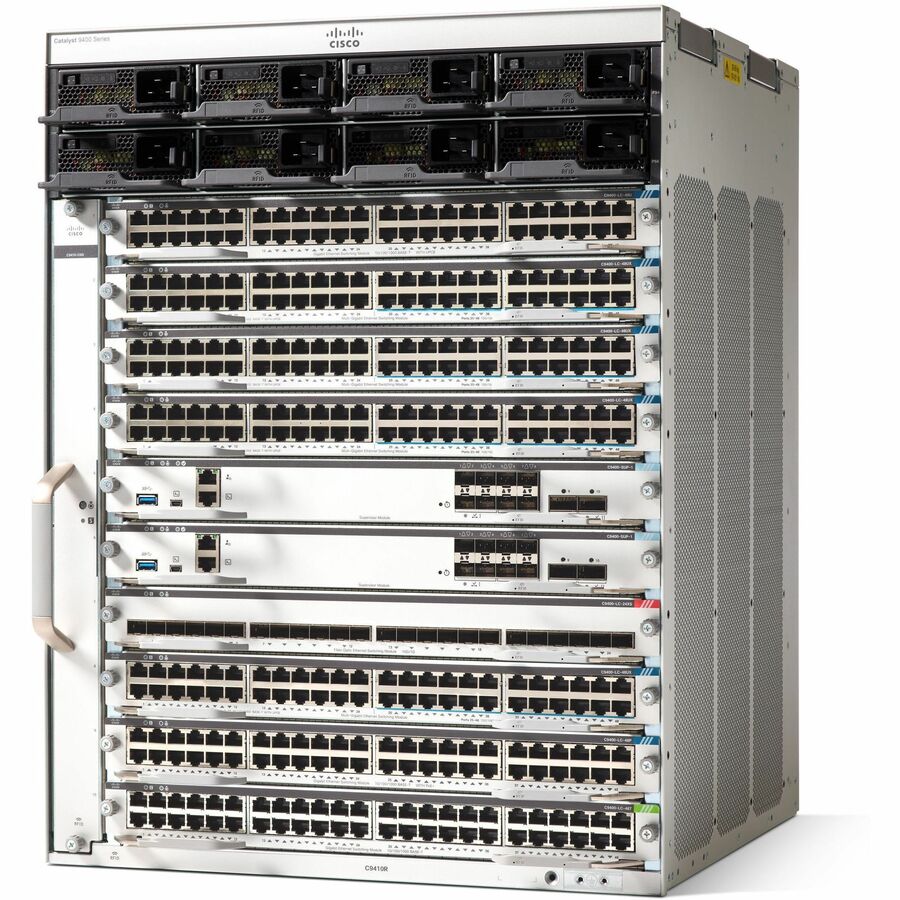

CISCO C9410R-1A FED ONLY C9400 SERIES 10 SLOT CHAS 1YR

Built for Security, IoT, Mobility, and Cloud

Cisco® Catalyst® 9400 Series switches are Cisco's lead modular enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place. The Catalyst 9400 Series, including the Catalyst 9400 SUP-2/2XL supervisor and line cards, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.

Advanced persistent security threats, exponential growth of Internet of Things (IoT) devices, mobility everywhere and cloud adoption require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating business service rollout.

The Cisco Networking Cloud and Software-Defined Access (SD-Access) is the network fabric that powers business. Cisco Networking Cloud is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:

• Simplified device deployment
• Unified management of wired and wireless networks
• Network virtualization and segmentation
• Group-based policies
• Context-based analytics

General Information
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	C9410R1A
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Line	Catalyst
Product Series	9400
Product Model	C9410R
Product Name	Catalyst C9410R Chassis
Product Type	Switch Chassis
Technical Information
Features	Hot-swappable
Interfaces/Ports
Modular	Yes
Port/Expansion Slot Details	10 x Expansion Slot
I/O Expansions
Total Number of Expansion Slots	10
Expansion Slot Type	Line Card
Expansion Slot Type	Supervisor Engine
Network & Communication
Layer Supported	3
Networking Standards	IEEE 802.3
Power Description
Power Source	AC/DC
Redundant Power Supply Supported	Yes
Number of Power Supplies Supported	8
Physical Characteristics
Color Family	Gray
Product Color	Gray
Compatible Rack Unit	13U
Form Factor	Rack-mountable
Height	22.6"
Width	17.3"
Depth	16.3"
Weight (Approximate)	65 lb
Miscellaneous
Package Contents	Catalyst C9410R Chassis 19-in. Rack Hardware Cable Guide
Application/Usage	Enterprise
Application/Usage	Business
Certifications & Standards	CE UL 60950-1 CAN/CSA-C222.2 No. 60950-1 EN 60950-1 IEC 60950-1 AS/NZS 60950.1 IEEE 802.3 47 CFR Part 15 CISPR22 Class A KN 32 Class A EN 300 386 V1.6.1 EN 55022 Class A EN 55032 Class A CISPR 32 Class A EN61000-3-2 EN61000-3-3 ICES-003 Class A TCVN 7189 Class A V-3 Class A CNS13438 Class A CISPR24 EN 300 386 EN55024 TCVN 7317 KN35
Environmentally Friendly	Yes
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	Lifetime
