CISCO DS-C9148T-24PITK9 MDS 9148T 32G FC SWITCH W/ 24ACTIVE PORTS +32G SW INTAKE

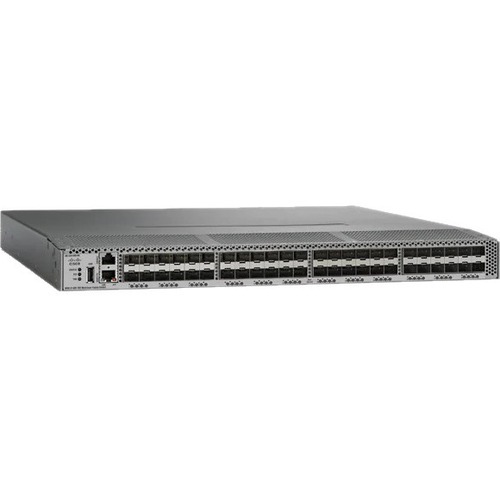

The next-generation Cisco® MDS 9148T 32-Gbps 48-Port Fibre Channel Switch (Figure 1) provides high-speed Fibre Channel connectivity for All-Flash arrays. This switch offers state-of-the-art analytics and telemetry capability built into its next-generation Application-Specific Integrated Circuit (ASIC) platform. This switch allows seamless transition to Fibre Channel Non-Volatile Memory Express (FC-NVMe) workloads whenever available without any hardware upgrade in the SAN. It empowers small, midsize, and large enterprises that are rapidly deploying cloud-scale applications using extremely dense virtualized servers, providing the benefits of greater bandwidth, scale, and consolidation. Some of the main benefits for a small-scale Storage Area Network (SAN) are automatic zoning, nonblocking forwarding, and smaller port groups of 16 ports. Benefits for a mid- to large-size SAN include higher scale for Fibre Channel control-plane functions, virtual SANs, fabric login (FLOGI), device alias and name server scale, 48 ports of 32-Gbps non-oversubscribed line-rate ports, bidirectional airflow, and a fixed-form FC-NVMe-ready SAN switch with enhanced Buffer-to-Buffer (B2B) credits connecting both storage and host ports and Fibre Channel link encryption. Large-scale SAN architectures built with SAN core directors can expand 32-Gbps connectivity to the server rack using these switches in either switch mode or Network Port Virtualization (NPV) mode. Additionally, the switch supports enhanced diagnostic features such as Inter-Switch Link (ISL) and Host-Bus-Adapter (HBA) diagnostics, read diagnostic parameter, link cable beacon, and advanced reliability features such as Forward Error Correction (FEC) with HBA ports.

General Information
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	DS-C9148T-24PITK9
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	MDS 9100
Product Name	MDS 9148T 32-Gbps 48-Port Fibre Channel Switch
Product Type	Fibre Channel Switch
Interfaces/Ports
Number of Fibre Channel Ports	24
Media & Performance
Data Transfer Rate	32 Gbit/s
Management & Protocols
Manageable	Yes
Power Description
Redundant Power Supply	Yes
Physical Characteristics
Compatible Rack Unit	1U
Form Factor	Rack-mountable
Height	1.7"
Width	17.3"
Depth	22.3"
Weight (Approximate)	18.74 lb
