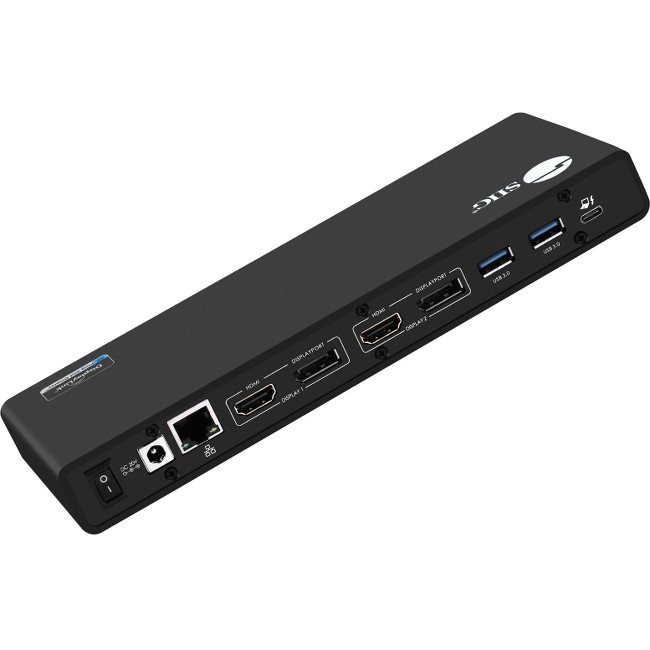

SIIG JU-DK0811-S1 USB 3.1 TYPE-C DUAL 4K DOCKING STATION WITH POWER DELIVERY

Advanced docking station adds DisplayPort, HDMI, USB 3.1, USB-C, Audio/Microphone and Gigabit Ethernet connectivity and PD charging up to 60W to your USB-C or Thunderbolt 3 enabled laptop

• Leading Edge USB Docking Solution - Transforms a single USB-C port (Thunderbolt 3 compatible) into multiple connectivity options to your USB-C computer
• Industry Recognized Display Technology from DisplayLink® - Supports single 5K @60Hz Ultra HD video output through dual DisplayPort
  Note: In order to support 5K video output, connect both DisplayPort outputs to a single 5K TV/Monitor
• Flexible Video Interface - Enables dual 4K @60Hz displays through HDMI/HDMI, DP/DP or HDMI/DP outputs with 5.1ch surround sound
• USB-C PD Charging - Supports up to 60W power output to charge your laptop
  Note: The laptop's USB-C port must also support USB Power Delivery (PD) technology
• Maximize USB 3.1 Connectivity - Adds four USB 3.1 Type-A and two USB-C Gen 1 ports to connect to various USB devices simultaneously
• Reliable Wired Ethernet - Network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
• Convenient Audio Connectivity - Connect stereo earphones/speakers and microphone through built-in 3.5mm audio jack and microphone jack respectively
• Power Switch - Conserves energy when not in use, built-in LED provides easy recognition of power status
• OS Compatibility - Supports various Windows and Mac computers
  Note: Our adapter DOES NOT work with the latest Mac OS 10.13.4 update. Apple discontinued support for Video over USB on the new update. Apple has not said if they will provide updates to fix this issue. It's recommended to stay with 10.13.3 or earlier.
• Enterprise Features: Wake on LAN, MAC Address Pass-Through and PXE Boot

More from the Manufacturer

General Information
Manufacturer	SIIG, Inc
Manufacturer Part Number	JU-DK0811-S1
Manufacturer Website Address	http://www.siig.com
Brand Name	SIIG
Product Name	USB 3.1 Type-C Dual 4K Docking Station with Power Delivery 60 watts
Product Type	Docking Station
Technical Information
Connectivity Technology	Wired
Device Supported	Notebook
Number of Displays Supported	2
Screen Mode Supported	4K
Screen Mode Supported	5K
Supported Resolutions	3840 x 2160
Network & Communication
Ethernet Technology	Gigabit Ethernet
Interfaces/Ports
Host Interface	USB 3.1 Type C
Audio Line In	Yes
Audio Line Out	Yes
Total Number of USB Ports	7
Number of USB 3.2 Gen 1 Type-A Ports	4
USB Type-C	Yes
USB Type-C Detail	2 x USB 3.2 Gen 1 Type-C, up to 5Gbps data transfer rate, 5V/900mA
Network (RJ-45)	Yes
Number of RJ-45 Ports	1
Number of DisplayPorts	2
DisplayPort	Yes
Microphone	Yes
Number of HDMI Ports	2
HDMI	Yes
Thunderbolt	Yes
USB Power Delivery	Type-C Up to 60W
Software
Operating System Supported	macOS
Operating System Supported	Windows
Power Description
Maximum Power Supply Wattage	100 W
Power Source Type	AC
Physical Characteristics
Height	1.02"
Width	3.15"
Weight (Approximate)	12.32 oz
Miscellaneous
Package Contents	USB 3.1 Type-C Dual 4K Docking Station with Power Delivery Power Adapter (DC 20V/5A) USB-C (M) to USB-C (M) Cable Driver CD User Reference Guide
Compatibility	Windows Compatibilty: 10 8 7 Mac Compatibilty: 10.14 10.13.3 to 10.7
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Country of Origin	China
Warranty
Limited Warranty	2 Year
