BLACK BOX
BLACK BOX ACU5520A KVM EXTENDER DUAL LINK DVI-D USB HID CATX SINGLE-ACCESS
Mfg Part Number: ACU5520A , Item #: 3092560
, PO and Wire.
Extend lossless HD video

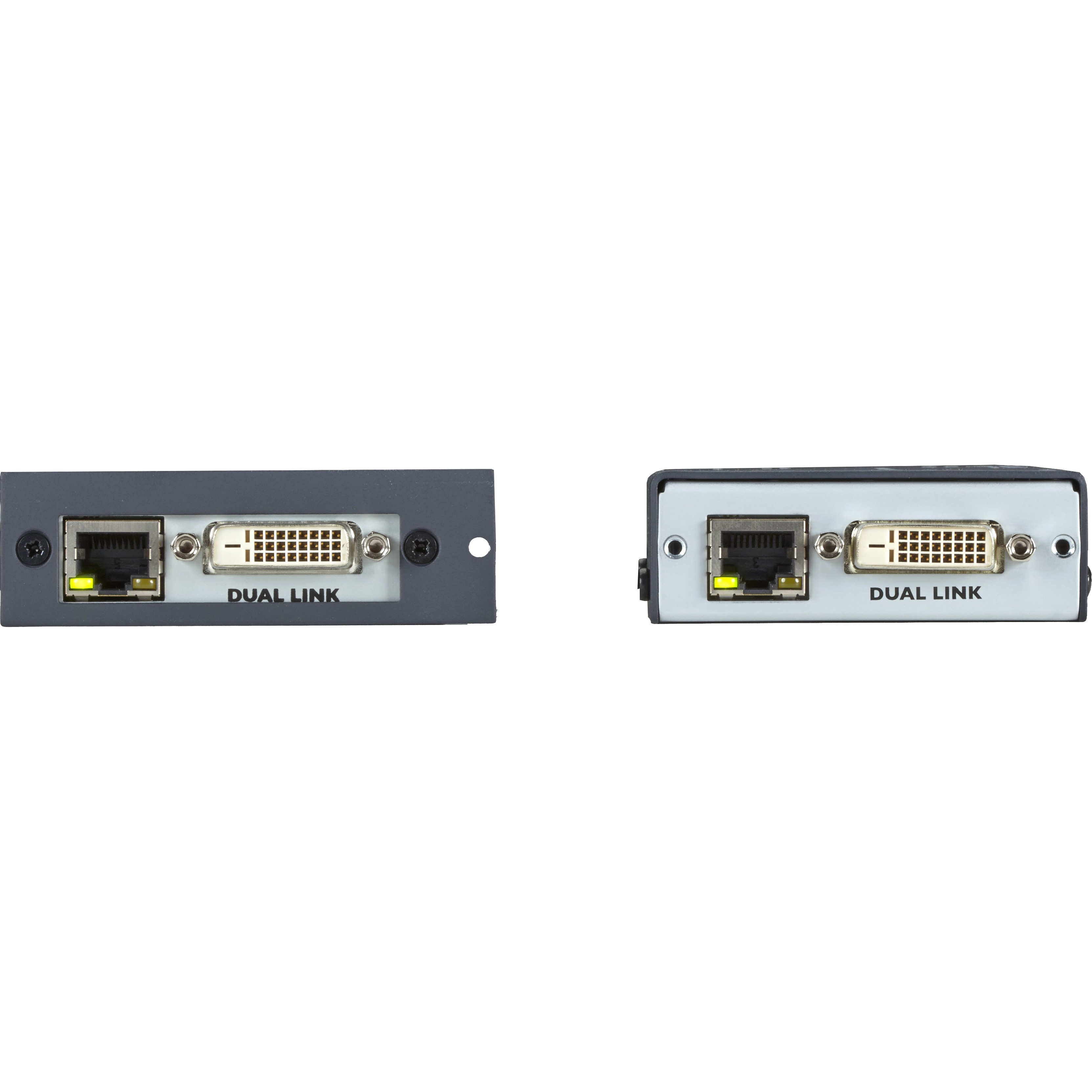

KVM Extender DL DVI USB transmits lossless DVI video up to 160 feet, enabling workstations to be put in quiet, climate controlled areas while CPUs are housed separately and securely. Lossless video ensure a high image quality, without delay or visible artifacts.
Use CATx cable
These extenders use a single CATx cable for dual-link DVI, USB 2.0, and analog audio, so they integrate directly and easily into your infrastructure. The extender set is plug-and-play, with no need for configuration or software downloads.

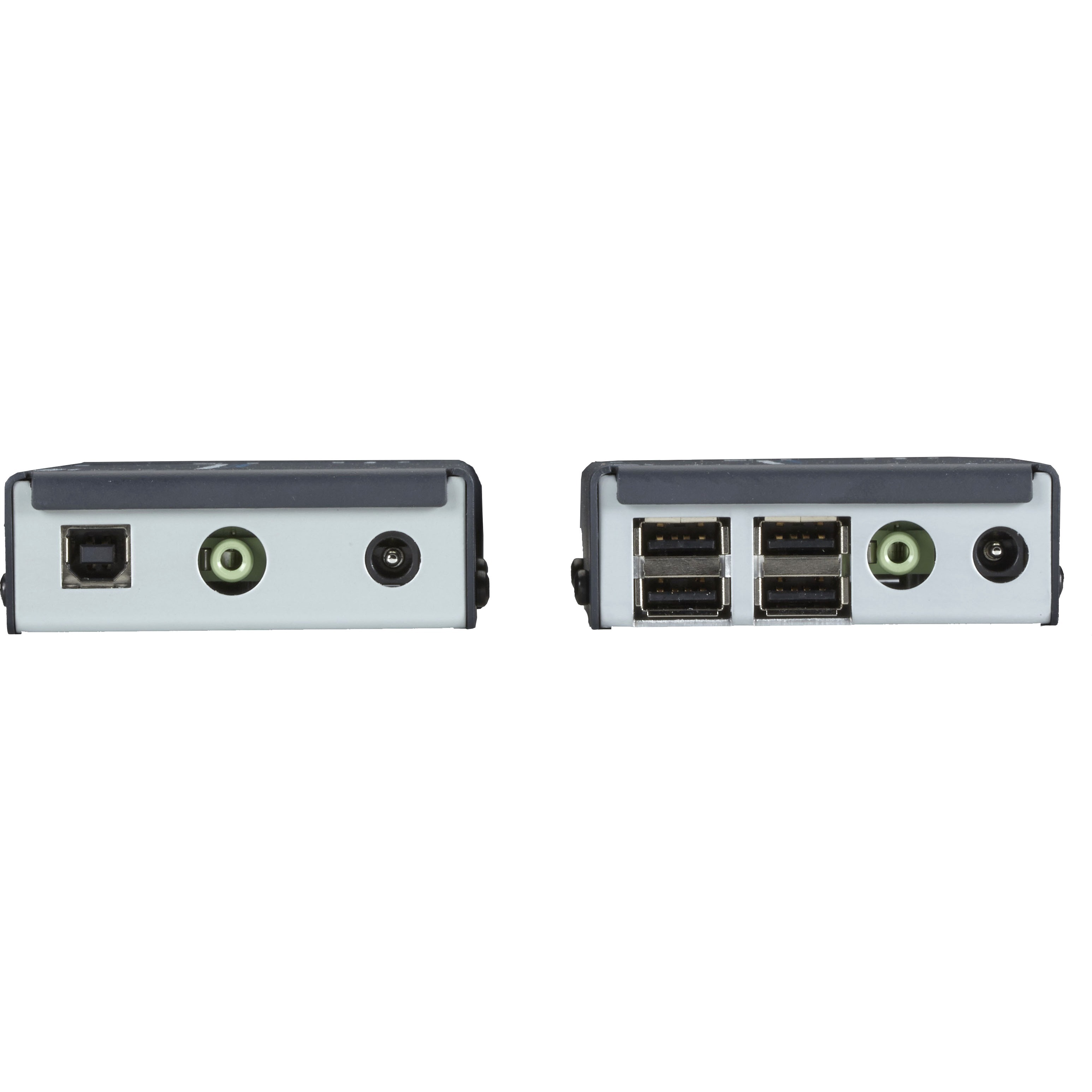

USB 2.0
USB support is for low-speed and full-speed USB devices, from keyboards, mouse, and touchscreen monitors, to graphics tablets and mass storage devices.
EDID management
The extender system features intelligent EDID management so that the true data characteristics of the monitor are shared with the computer.
| General Information | |
| Manufacturer | Black Box Corporation |
| Manufacturer Part Number | ACU5520A |
| Manufacturer Website Address | http://www.blackbox.com |
| Brand Name | Black Box |
| Product Model | ACU5520A |
| Product Name | Wizard SRX ACU5520A KVM Console/Extender |
| Product Type | KVM Console/Extender |
| Technical Information | |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 164.04 ft |
| Video | |
| Maximum Video Resolution | 2560 x 1600 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| USB | Yes |
| DVI | Yes |
| Headphone | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Number of USB Ports | 5 |
| Number of DVI Ports | 2 |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 240 V AC |
| Input Voltage Range | 120V AC to 230V AC |
| Physical Characteristics | |
| Transmitter Height | 1.02" |
| Transmitter Width | 4.66" |
| Transmitter Depth | 2.94" |
| Receiver Height | 1.02" |
| Receiver Width | 4.66" |
| Receiver Depth | 2.94" |
| Transmitter Weight (Approximate) | 11.20 oz |
| Receiver Weight (Approximate) | 11.20 oz |
| Miscellaneous | |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 2 Year |
