BRAINBOXES

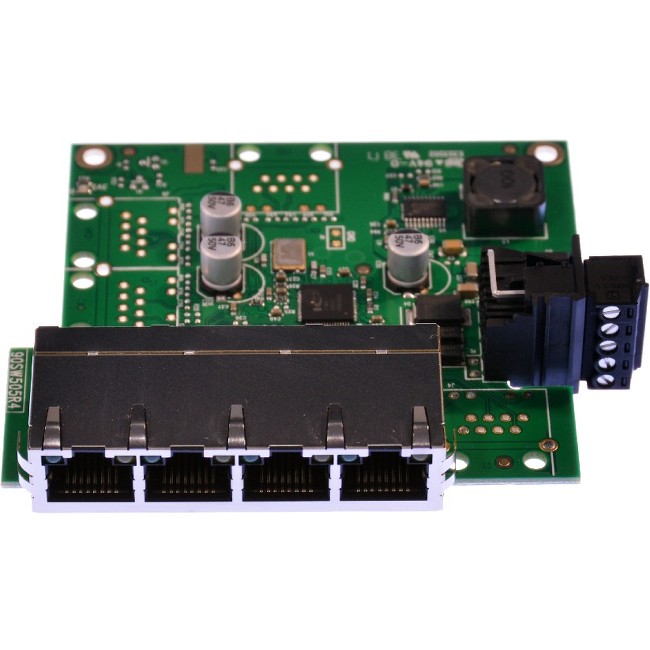

BRAINBOXES SW-104 EMBEDDED 4PORT ETHERNET SWITCH TEMPERATURE RANGE OF -40F TO +176F
Mfg Part Number: SW-104 , Item #: 3089616
Image may not reflect the actual item.
Price: $89.99
Quantity:
In Stock: 424
Last Updated: Oct 13, 2025
No Sales Tax except these states
, PO and Wire.
Industrial Ethernet 4 Port unmanaged switch. Galvanically Isolated Ethernet Ports capable of 10/100 Mbps. Industrial temperature range of -40°C to +80°C (-40°F to 176°F) and dual input redundant power supply with wide voltage range means it can be powered from USB or on the 24V factory floor. Power terminal is removable with numbered pins for easy wiring. Power consumption is optimised based on the status of the link device. No software required. Ideal for embedded applications.
Main Specification
| General Information | |
| Manufacturer | Brainboxes Limited |
| Manufacturer Part Number | SW-104 |
| Manufacturer Website Address | http://www.brainboxes.com |
| Brand Name | Brainboxes |
| Product Model | SW-104 |
| Product Name | Industrial Embeddable 4 Port Ethernet Switch |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 4 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 4 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-T |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Power Description | |
| Power Source | Power Supply |
| Power Source | USB |
| Physical Characteristics | |
| Height | 0.8" |
| Width | 3.7" |
| Depth | 3.3" |
| Weight (Approximate) | 2.15 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | United Kingdom |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | Lifetime |
