SUPERMICRO

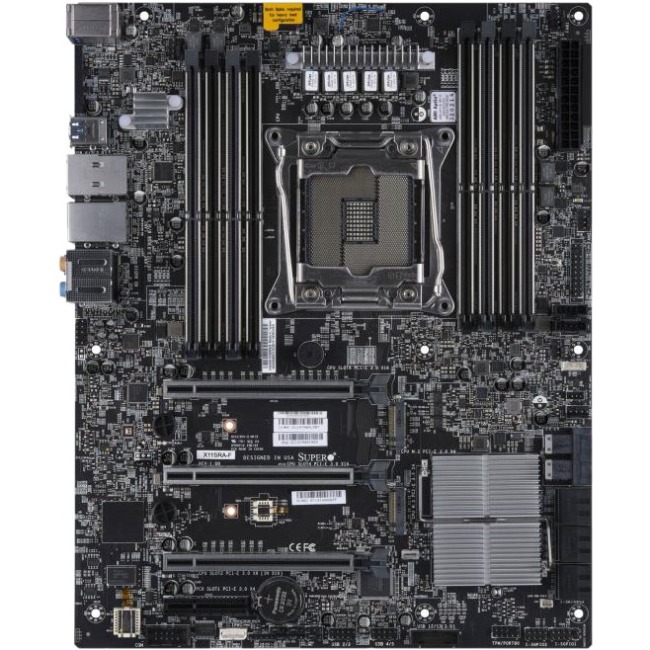

Supermicro MBD-X11SRA-O LGA2066/ Intel C422/ DDR4/ SATA3&USB3.1/ A&2GbE/ ATX Server Motherboard
Mfg Part Number: MBD-X11SRA-O , Item #: 3087994
Image may not reflect the actual item.
Price: $430.20
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 04, 2025
No Sales Tax except these states
, PO and Wire.
UP Xeon® Motherboards - Socket R4 (LGA 2066)
BOARDS supporting Intel® Xeon® W Processors / Socket R4 (LGA 2066)
Supermicro's single processor Socket R4 design features the Intel® C422 chipset and the Intel® Xeon® W processor. The outstanding features include DDR4 ECC RDIMM/LRDIMM memory, onboard OCuLink connectors for Intel Virtual RAID on Chip (VROC) support, PCI-E 3.0, M.2 and SATA 3.0 (6Gbps) HDD/SSD, 1GbE networking and IPMI 2.0 plus KVM with dedicated LAN. Designed with performance, reliability, and manageability, Supermicro's single processor motherboards are the perfect solution for a variety of server and workstation applications.
Main Specification
| General Information | |
| Manufacturer | Supermicro Computer, Inc |
| Manufacturer Part Number | MBD-X11SRA-O |
| Manufacturer Website Address | http://www.supermicro.com |
| Brand Name | Supermicro |
| Product Model | X11SRA |
| Product Name | X11SRA Workstation Motherboard |
| Packaged Quantity | 1 |
| Package Type | Retail |
| Product Type | Workstation Motherboard |
| Processor & Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C422 |
| Total Processor Supported | 1 |
| Processor Socket | Socket R4 LGA-2066 |
| Processor Supported | Xeon |
| Memory | |
| Number of Memory Slots | 8 |
| Memory Form Factor | DIMM |
| Memory Form Factor | RDIMM |
| Memory Form Factor | LRDIMM |
| Maximum Memory Supported | 512 GB |
| Memory Technology | DDR4 SDRAM |
| Memory Speed Supported | 2133 MHz |
| Memory Speed Supported | 1866 MHz |
| Memory Speed Supported | 2400 MHz |
| Memory Speed Supported | 2666 MHz |
| Memory Speed Supported | 1600 MHz |
| Intel Optane Memory Ready | Yes |
| I/O Controller | |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 10 |
| RAID Levels | 0 |
| RAID Levels | 1 |
| RAID Levels | 5 |
| Video | |
| Onboard Video | No |
| Audio | |
| Audio Channels | 7.1 |
| Network & Communication | |
| Gigabit Ethernet | Yes |
| I/O Expansions | |
| Total Number of Expansion Slots | 4 |
| Total Number of PCI Express Slots | 4 |
| Number of PCI Express x4 Slots | 1 |
| Number of PCI Express x16 Slots | 3 |
| Interfaces/Ports | |
| Total Number of USB Ports | 8 |
| Number of USB 3.0 Ports | 4 |
| Number of USB 3.1 Ports | 2 |
| Onboard Interfaces | |
| Number of SATA Interfaces | 6 |
| Number of M.2 Interfaces | 2 |
| Total Number of Onboard USB Ports | 6 |
| Number of Onboard USB 3.0 Ports | 2 |
| Physical Characteristics | |
| Form Factor | ATX |
| Width | 12" |
| Depth | 9.6" |
| Miscellaneous | |
| Compatibility | SuperChassis:
|
