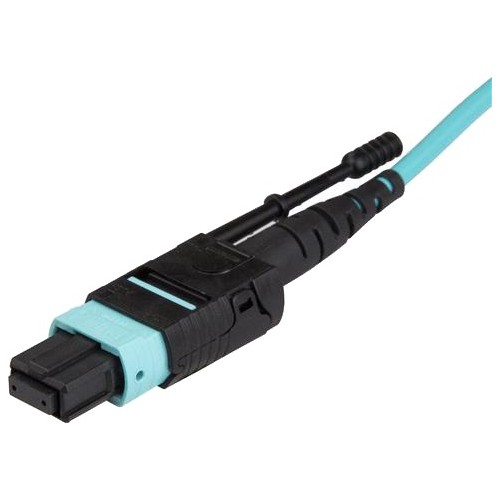

STARTECH MPO12PL3M 3M MPO/MTP FIBER OPTIC CABLE OM3 40GB PUSH/PULL TAB

This MPO/MTP fiber optic cable houses 12 fibers and lets you interface between different networking devices of varying speeds. For example, you can set up a one-to-one connection between two 40Gbps switches or servers. Alternatively, you can connect a 40Gbps switch and break out the 40Gbps into six duplex 10Gbps LC connections on a patch panel or network cassette, which then fans out to individual 10Gbps devices. The MTP connector provides twelve times the density of an SC connector and saves circuit card and rack space. Plus, the push-and-pull tabs optimize accessibility by letting you install or remove the connectors with one hand without needing additional tools. The MTP to MTP cable is housed in a plenum-rated jacket and is ideal for installations where CMP fire rating is required. Each OM3 fiber cable has been individually tested for insertion loss and return loss. The full test report is included in each cable bag. The MPO12PL3M from StarTech.com is backed by a lifetime warranty. More from the Manufacturer

More from the Manufacturer

General Information
Manufacturer	StarTech.com
Manufacturer Part Number	MPO12PL3M
Manufacturer Website Address	http://www.startech.com
Brand Name	StarTech.com
Product Name	Fiber Optic Network Cable
Packaged Quantity	1 Each
Product Type	Network Cable
Technical Information
Cable Type	Fiber Optic
Fiber Optic Mode	Multi-mode
Fiber Optic Cable Core/Cladding Specification	50/125 µm
Cable Length	9.84 ft
Connector Type on First End	MTP/MPO Network - Female
Connector Gender on First End	Female
Connector on First End Details	1 x MTP/MPO Network - Female
Connector Type on Second End	MTP/MPO Network - Female
Connector Gender on Second End	Female
Connector on Second End Details	1 x MTP/MPO Network - Female
Jacket Type	Plenum
Jacket Type	OFNP
Device Supported	Network Device
Device Supported	Switch
Device Supported	Patch Panel
Device Supported	Router
Device Supported	Media Converter
Device Supported	Hub
Device Supported	Server
Data Transfer Rate	40 Gbit/s
Physical Characteristics
Color Family	Green
Product Color	Aqua
Weight (Approximate)	0.06 lb
Shipping Height	0.51"
Shipping Width	7.87"
Shipping Weight (Approximate)	1.60 oz
Miscellaneous
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Environmental Compliance	Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin	China
Warranty
Limited Warranty	Lifetime
