TYAN

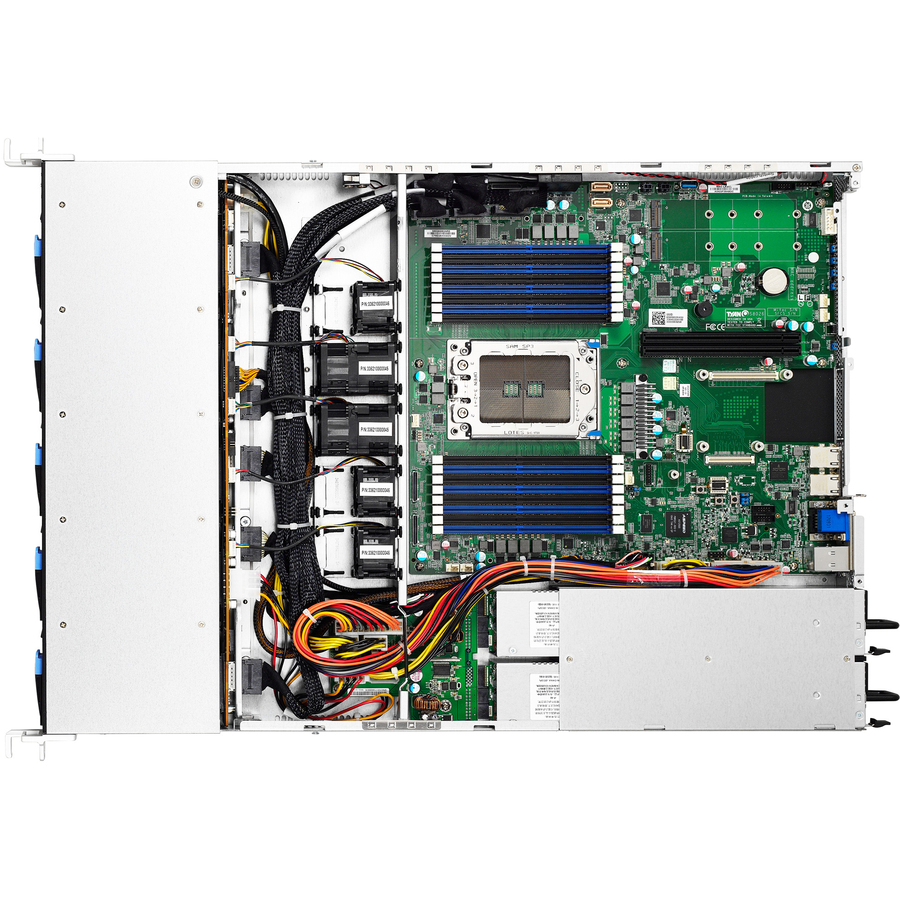

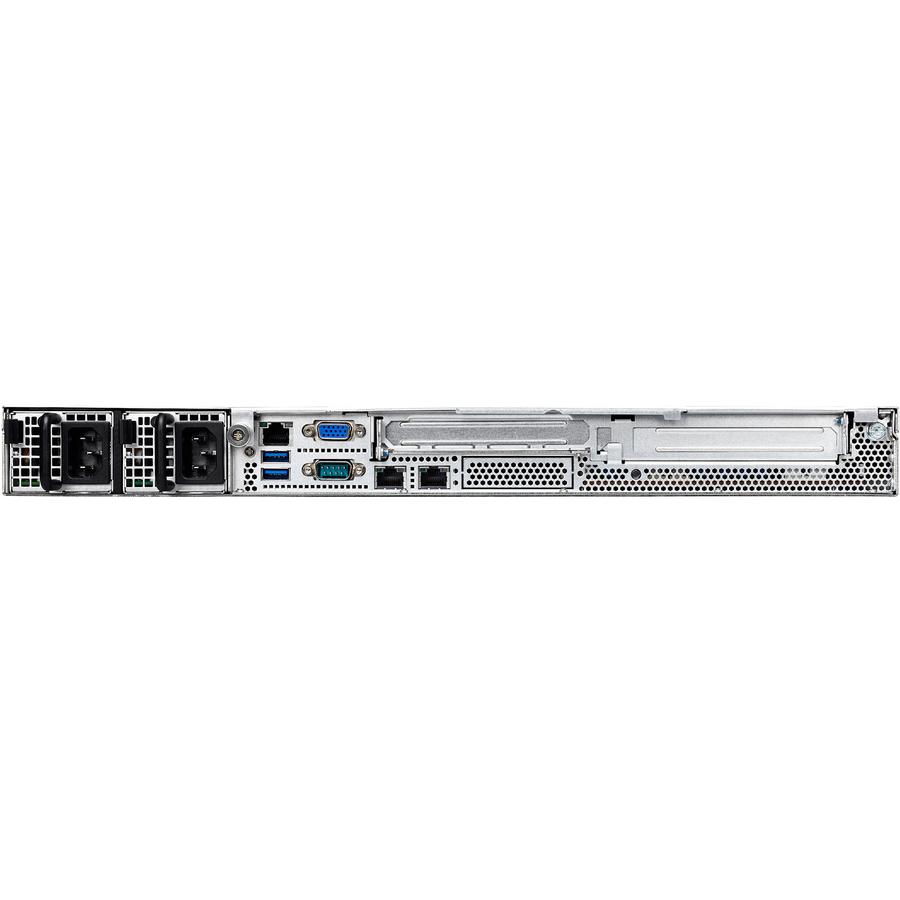

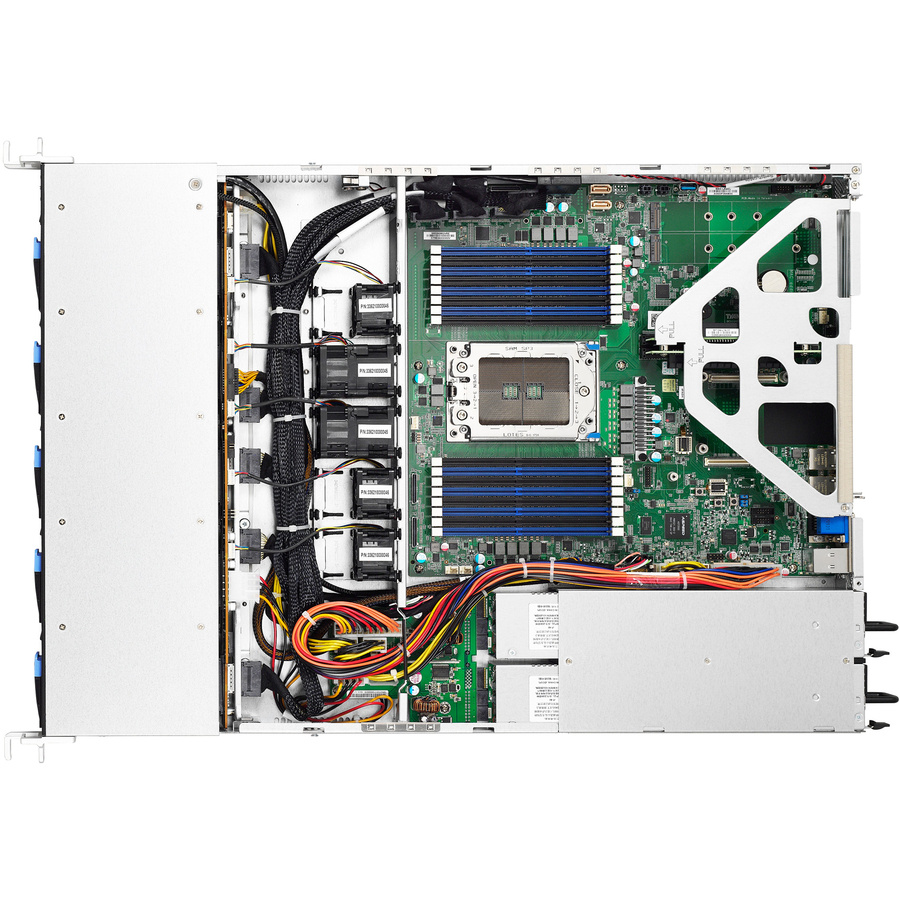

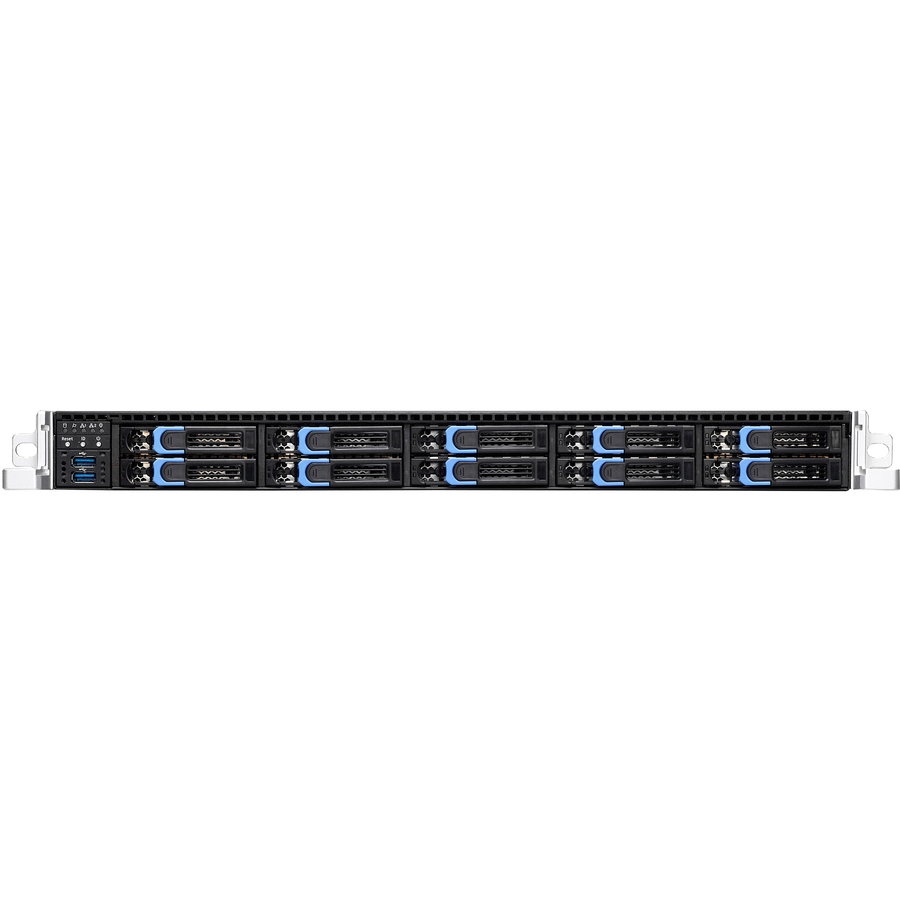

TYAN B8026G62FV10HR-LE - SERVER BAREBONE - RACK-MOUNTABLE - POWER SUPPLY - AC 100-240
Mfg Part Number: B8026G62FV10HR-LE , Item #: 3059350
Image may not reflect the actual item.
Price: $1,830.24
+ Free Shipping
Quantity:
More to Come
Last Updated: Sep 14, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Tyan Computer Corp |
| Manufacturer Part Number | B8026G62FV10HR-LE |
| Manufacturer Website Address | http://www.tyan.com |
| Brand Name | Tyan |
| Product Line | Transport SX |
| Product Model | GT62F-B8026-LE |
| Product Name | Transport SX GT62F-B8026-LE 16 DIMM Single Socket EPYC Storage Server |
| Packaged Quantity | 1 |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Processor Socket | Socket SP3 |
| Processor Supported | EPYC |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | AMD |
| Memory | |
| Maximum Memory Supported | 1 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 16 |
| Controllers | |
| Controller Type | Serial ATA/600 |
| RAID Supported | No |
| Display & Graphics | |
| Graphics Controller Model | AST2500 |
| Graphics Memory Capacity | 32 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Total Number of Expansion Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Interfaces/Ports | |
| Total Number of USB Ports | 4 |
| Number of USB 3.0 Ports | 4 |
| Number of SATA Interfaces | 10 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 7.2 x64 |
| Operating System Supported | SuSE Linux Enterprise Server 12 x64 |
| Operating System Supported | Windows Server 2012 x64 |
| Operating System Supported | SuSE Linux Enterprise Server 11 x64 |
| Operating System Supported | Red Hat Enterprise linux 7.4 x64 |
| Operating System Supported | Windows Server 2016 x64 |
| Operating System Supported | Ubuntu 16.04 x64 |
| Operating System Supported | Red Hat Fedora Core |
| Operating System Supported | Red Hat Enterprise linux 7.3 x64 |
| Operating System Supported | Windows 8.1 Enterprise x64 |
| Operating System Supported | Red Hat Enterprise Linux 6.5 x64 |
| Operating System Supported | Ubuntu 17.04 x64 |
| Operating System Supported | CentOS 7.3 x64 |
| Operating System Supported | CentOS 7.2 x64 |
| Operating System Supported | Windows 10 Enterprise x64 |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 650 W |
| Physical Characteristics | |
| Form Factor | Rack-mountable |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 17.2" |
| Depth | 24.6" |
| Weight (Approximate) | 23.15 lb |
| Miscellaneous | |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 3 Year |
