BGEARS

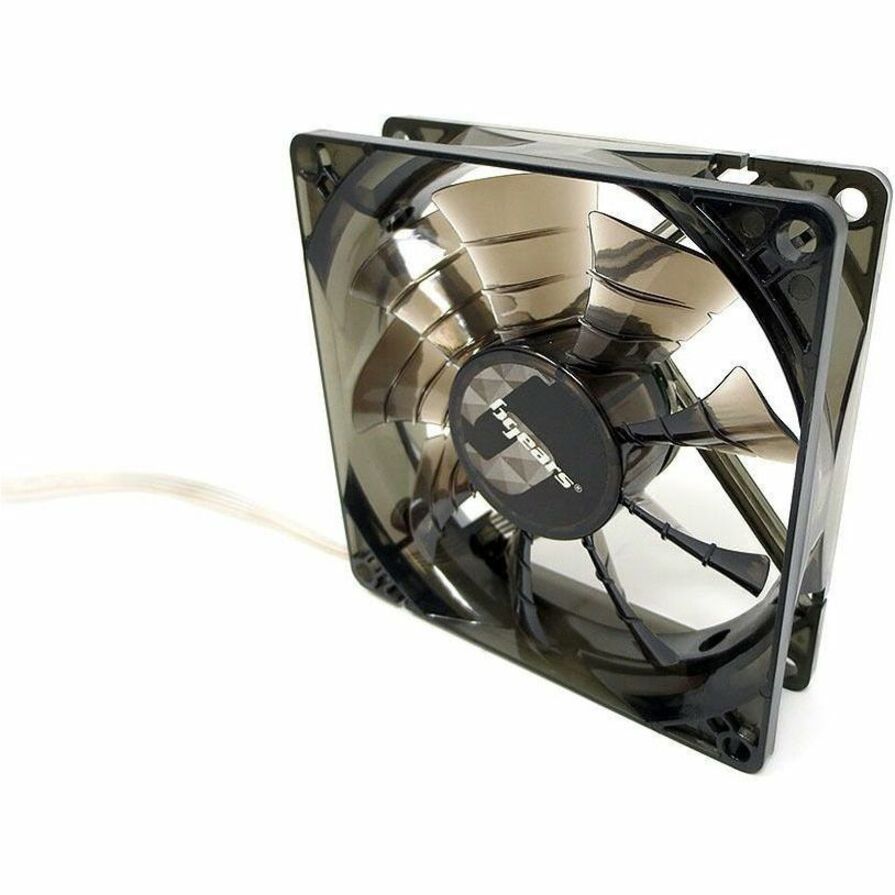

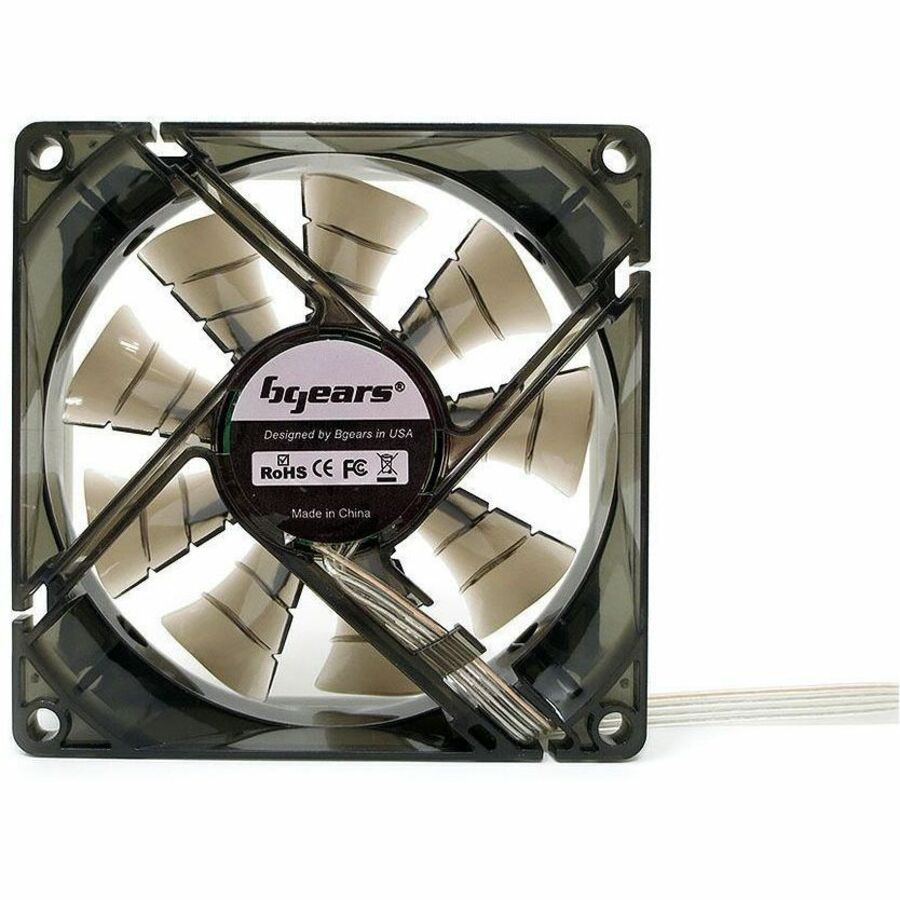

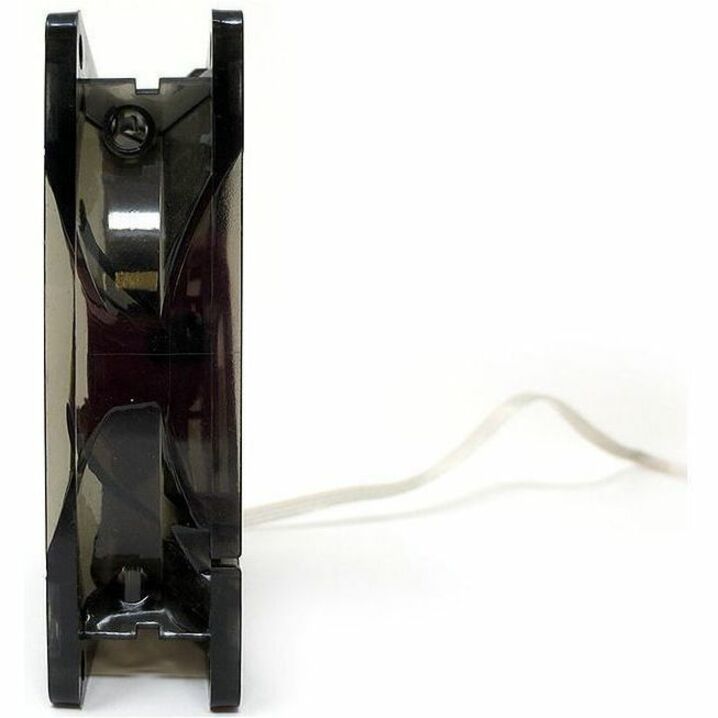

B-PWM 90 BLACK Bgears B-PWM 90mm PWM Case Fan (Black)
Mfg Part Number: B-PWM 90 BLACK , Item #: 3049681
Image may not reflect the actual item.
Price: $17.50
Quantity:
More to Come
Last Updated: Oct 23, 2026
No Sales Tax except these states
, PO and Wire.
Connection
The Bgears Fan (Depending on the model) comes with either a 3-pin connector (Like the b-Blaster Series), or 4-pin PWM (Like the b-PWM series) fan connector for fully automatic speed control via your mainboard's 4-pin PWM fan headers.

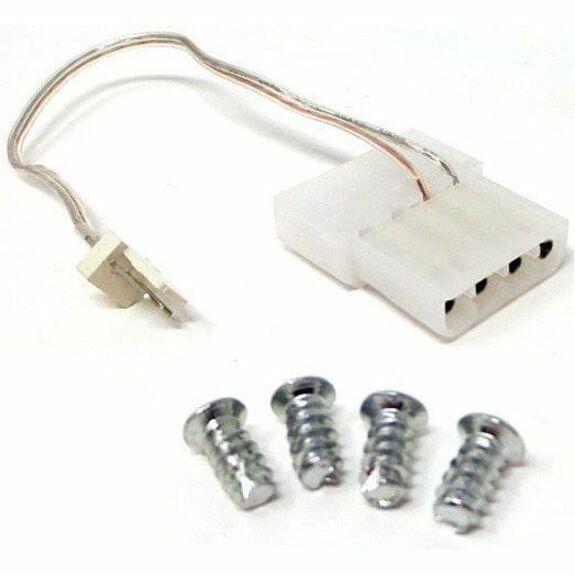

Please check the model you have purchased to verify the type of connector the fan is designed for. The package also come with a 3-pin to 4-pin Molex adapter. This Adapter is to convert the existing 3-pin or 4pin fan connector on the fan into a 4-pin Molex connector so it can be connected directly to a power source that come in 4-pin Molex type connector.
Main Specification
| General Information | |
| Manufacturer | Bgears, Inc |
| Manufacturer Part Number | B-PWM 90 BLACK |
| Manufacturer Website Address | http://www.bgears.com |
| Brand Name | Bgears |
| Product Series | b-PWM |
| Product Model | b-PWM 90 |
| Product Name | b-PWM 90 Cooling Fan |
| Product Type | Cooling Fan |
| Fan Information | |
| Number of Fans | 1 |
| Fan Bearing Type | Dual Ball Bearing |
| Fan Speed (Min) | 500 rpm |
| Fan Speed (Max) | 4000 rpm |
| Maximum Airflow | 88 CFM |
| Noise Levels (A-Weighted) | 39 dB(A) |
| Maximum Air Pressure | 6.45mmH2O |
| Interfaces/Ports | |
| Connectors | 4-pin |
| Connectors | 3-pin |
| Power Description | |
| Rated Current | 620 mA |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Translucent Black |
| Maximum Fan Diameter | 3.54" |
| Height | 3.5" |
| Width | 3.5" |
| Depth | 1" |
| Weight (Approximate) | 3 oz |
| Miscellaneous | |
| Package Contents |
|
| Application/Usage | Motherboard |
| Application/Usage | Case |
