KRAMER 10-80441090 VM-4UX. 4K 1:4 12G SDI DA

Mfg Part Number:  10-80441090
Image may not reflect the actual item.
Price: $592.96
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Nov 09, 2025
No Sales Tax except these states
, PO and Wire.

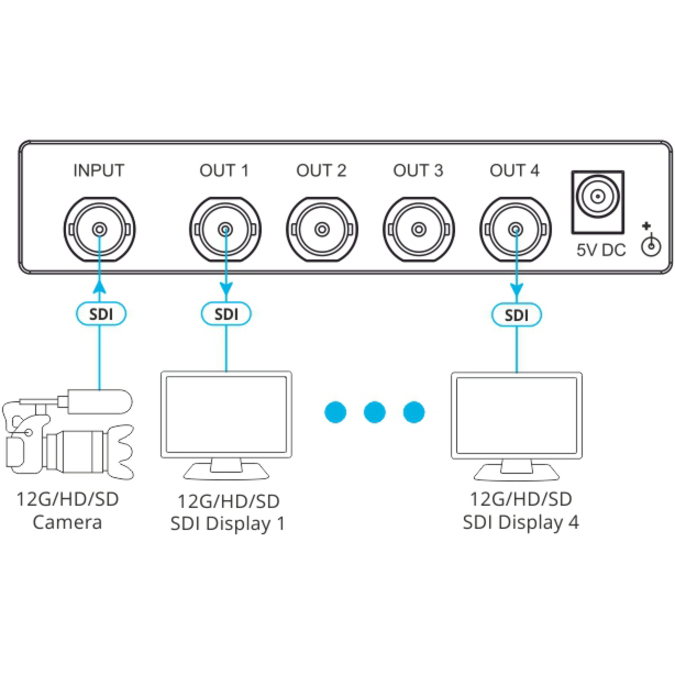

The VM-4UX is a compact and high performance 1:4 4K distributor for standard broadcast-grade SDI signals of up to 12G transmitted data rate. It auto-adapts to the data rate of one SDI input signal, equalizes and re-clocks the signal to improve transmitted signal reach, and distributes the signal to four identical SDI outputs.

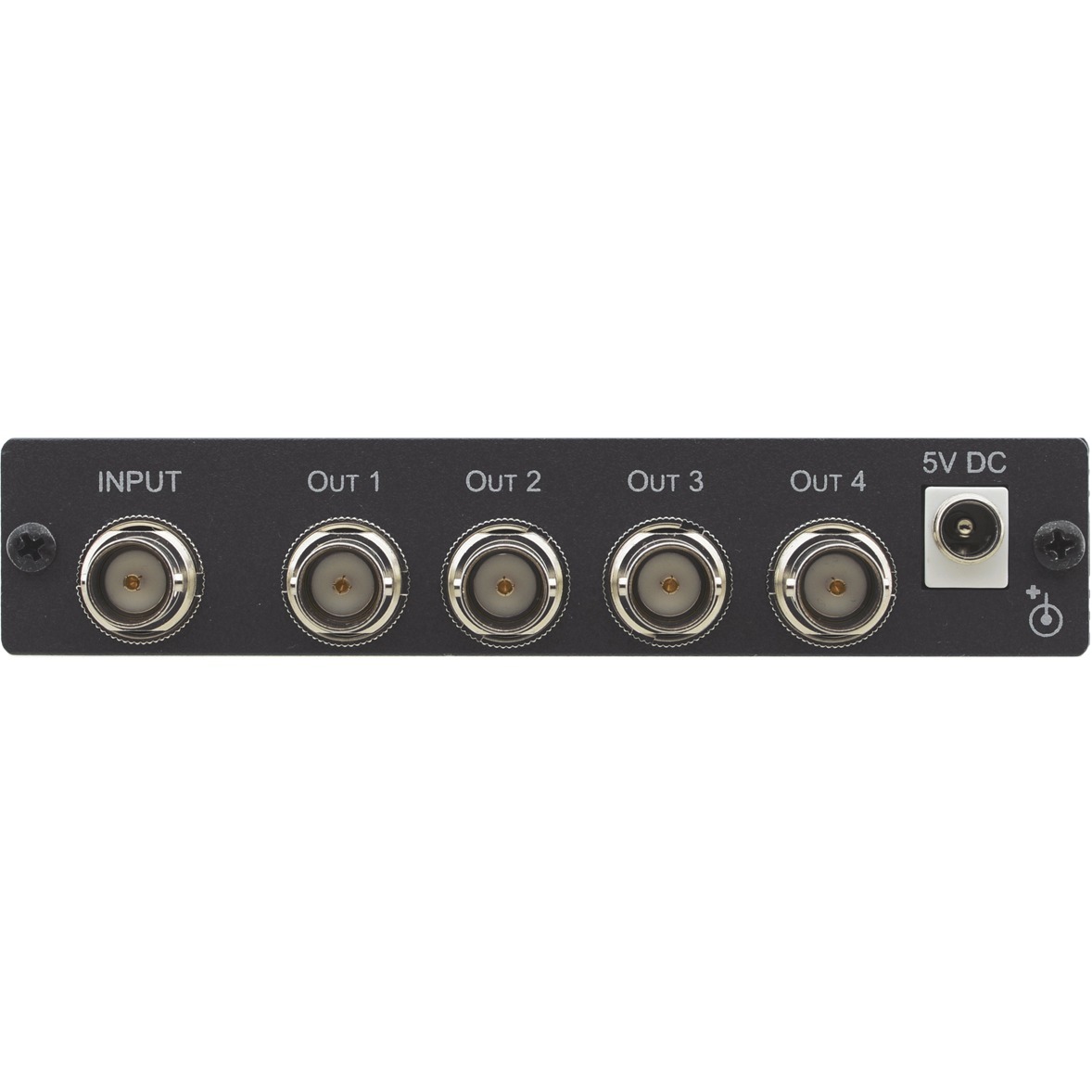

  • Reliable Wire Connectivity - Coaxial broadcast-grade cables are reliably connected via lockable BNC connectors, preventing unintentional wire disconnections, to gain fast and highly professional uncompressed SDI signals distribution deployments.
  • Extended-reach Input Extension - Input signal equalization and output signals reclocking to gain extended-reach signal extension. Using Kramer high-quality coaxial SDI cables, supports extension of up to 300m (984ft) for SD signals; 200m (656ft) for 1.5G HD signals; 100m (328ft) for 3G and 6G HD signals; 80m (262ft) for 12G 4K signals.Note: Reach depends on signal resolution, and quality of copper cable used. Reach extension performance may vary while using non-Kramer coaxial cables.
  • Transmitted Data Rate - Auto-adapting from 270Mbps to 12Gbps data rates.
  • Compliance - Complies with SMPTE 259M (SD-SDI), 292M (HD-SDI), 344M (ED-SDI), 424M (3G HD-SDI), ST-2081 (6G-SDI) and ST-2082 (12G-SDI) standards.
  • Max. Resolution - 4K@60Hz (4:2:2) 30bpp.
  • SDI Signal Transmission - SDI, HD-SDI, 3G HD-SDI, 6G and 12G SDI compliant signals, supporting pass-through of standard embedded audio channels with ancillary ID and metadata information.
  • LED Indicators - Status indicators for transmitted SDI data rate of input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.

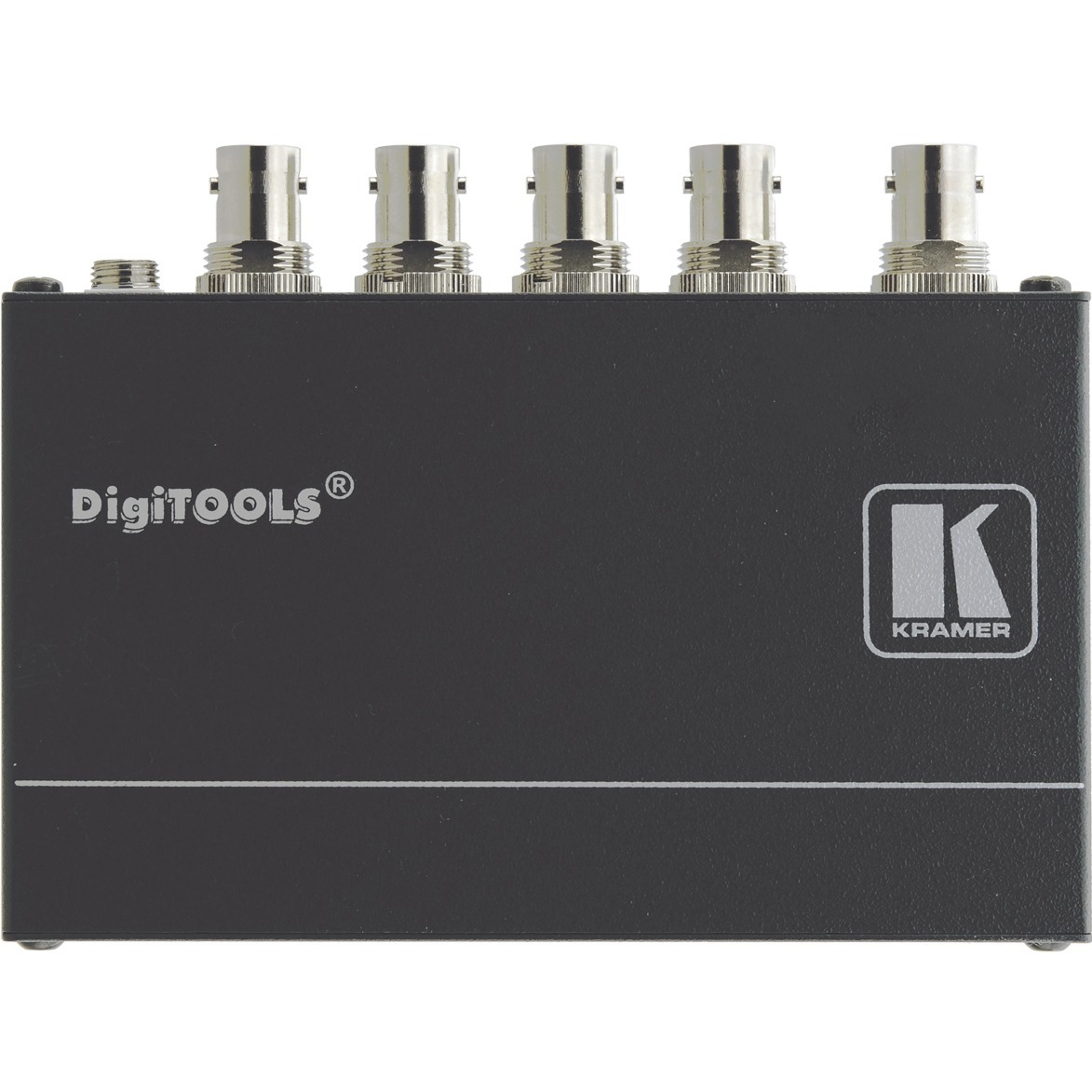

  • Easy Installation - Compact DigiTOOLS™ fan-less enclosure for small footprint spaces and over-ceiling mounting, or side-by-side rack mounting.
Main Specification
General Information
Manufacturer Kramer Electronics LTD
Manufacturer Part Number 10-80441090
Manufacturer Website Address http://www.kramerelectronics.com
Brand Name Kramer
Product Line DigiTOOLS
Product Model VM-4UX
Product Name 1:4 4K 12G SDI DA
Product Type Audio/Video Distribution Amplifier
Video
Maximum Video Resolution 4096 x 2160
Media & Performance
Maximum Operating Distance 984.25 ft
Power Description
Input Voltage 5 V DC
Physical Characteristics
Height 1"
Width 4.7"
Depth 2.8"
Weight (Approximate) 7.05 oz
Miscellaneous
Package Contents
  • 1:4 4K 12G SDI DA
  • Power Supply
  • Mounting Bracket
  • 2 x Male BNC 75Ω Terminators
Warranty
Limited Warranty 7 Year
