SUNON

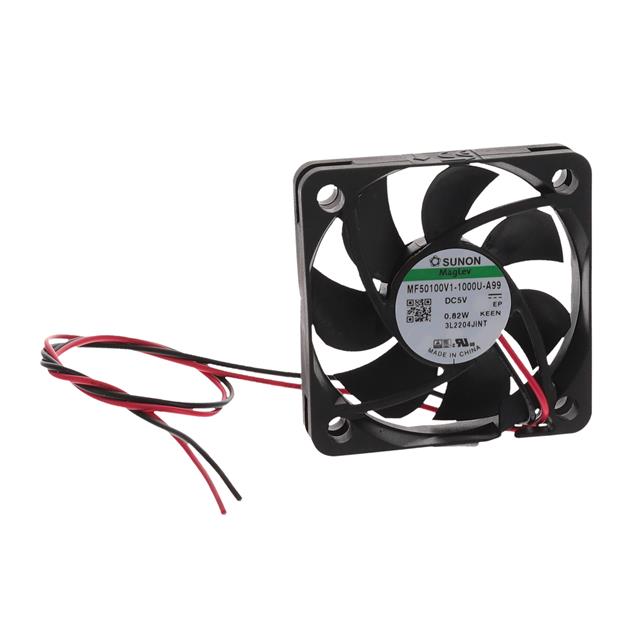

SUNON MF50100V1-1000U-A99 DC Fans, Fan Tubeaxial 5VDC Square - 50mm L x 50mm H Vapo-Bearin 13.8 CFM (0.386m³/min) 2 Wire Leads
Mfg Part Number: MF50100V1-1000U-A99 , Item #: 3023164
Image may not reflect the actual item.
Price: $15.30
Quantity:
In Stock: 2188
Last Updated: Dec 10, 2025
No Sales Tax except these states
, PO and Wire.
|
Voltage - Rated |
|
|
|
Size / Dimension |
Square - 50mm L x 50mm H |
|
|
Width |
10.00mm |
|
|
Air Flow |
13.8 CFM (0.386m³/min) |
|
|
Static Pressure |
0.150 in H2O (37.4 Pa) |
|
|
Bearing Type |
Vapo-Bearing™ |
|
|
Fan Type |
|
|
|
Features |
Auto Restart |
|
|
Noise |
30.7dB(A) |
|
|
Power (Watts) |
780 mW |
|
|
RPM |
|
|
|
Termination |
2 Wire Leads |
|
|
Ingress Protection |
- |
|
|
Operating Temperature |
14 ~ 158°F (-10 ~ 70°C) |
|
|
Approval Agency |
cURus, TUV |
|
|
Weight |
0.044 lb (19.96 g) |
|
|
Current Rating (Amps) |
0.155A |
|
|
Voltage Range |
3.5 ~ 6VDC |
|
|
Material - Frame |
Polybutylene Terephthalate (PBT) |
|
|
Material - Blade |
Polybutylene Terephthalate (PBT) |
|
|
Lifetime @ Temp. |
70000 Hrs @ 40°C |
