BE QUIET!
BGW23 be quiet! Dark Base 700 No Power Supply ATX Mid Tower w/ Window
Mfg Part Number: BGW23 , Item #: 3010795
, PO and Wire.
SUPER VERSATILE MOTHERBOARD TRAY
Adapts to your specific needs
The motherboard tray can be installed alongside the left panel in an inverted layout with an amended airflow. It is also removable for use as a bench table.

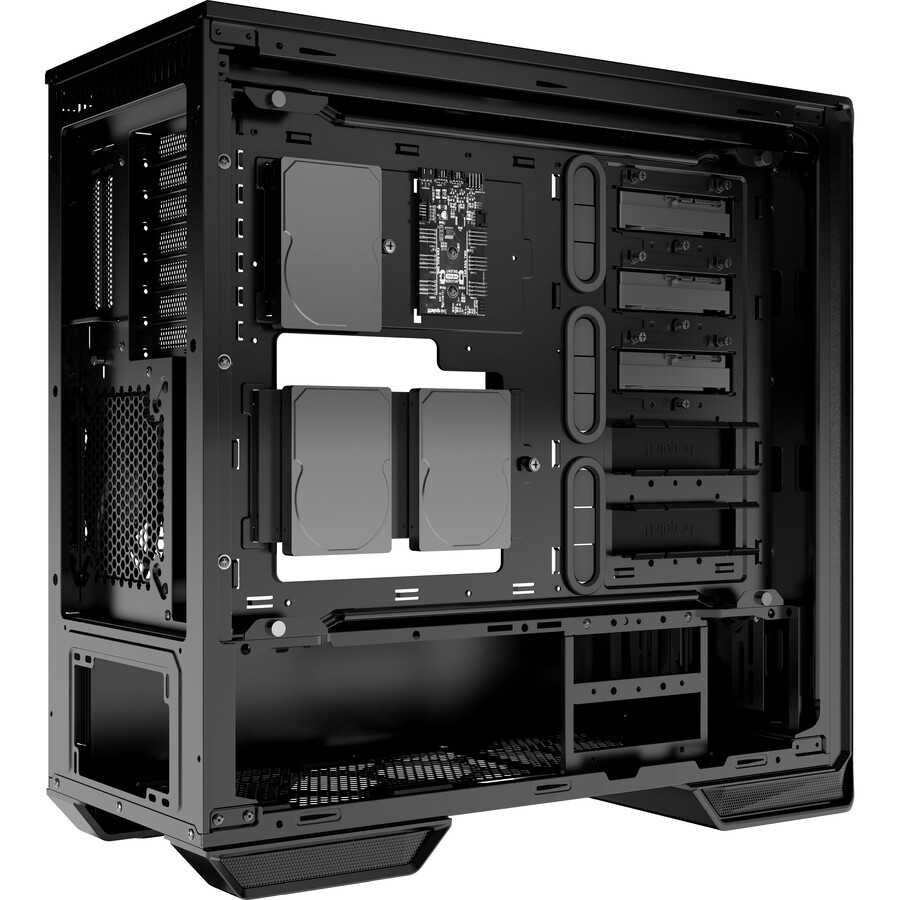

MODULAR HDD SLOTS
Generous space for your setups
Very flexible installation options thanks to three repositionable single HDD slots. You have seven possibilities for installing the HDDs - two of these hidden behind the PSU shroud. The practical slot covers serve to hide any unused HDD slots and keep the inner workings neat and tidy. This enables you to create systems that are just as individual as you are yourself.

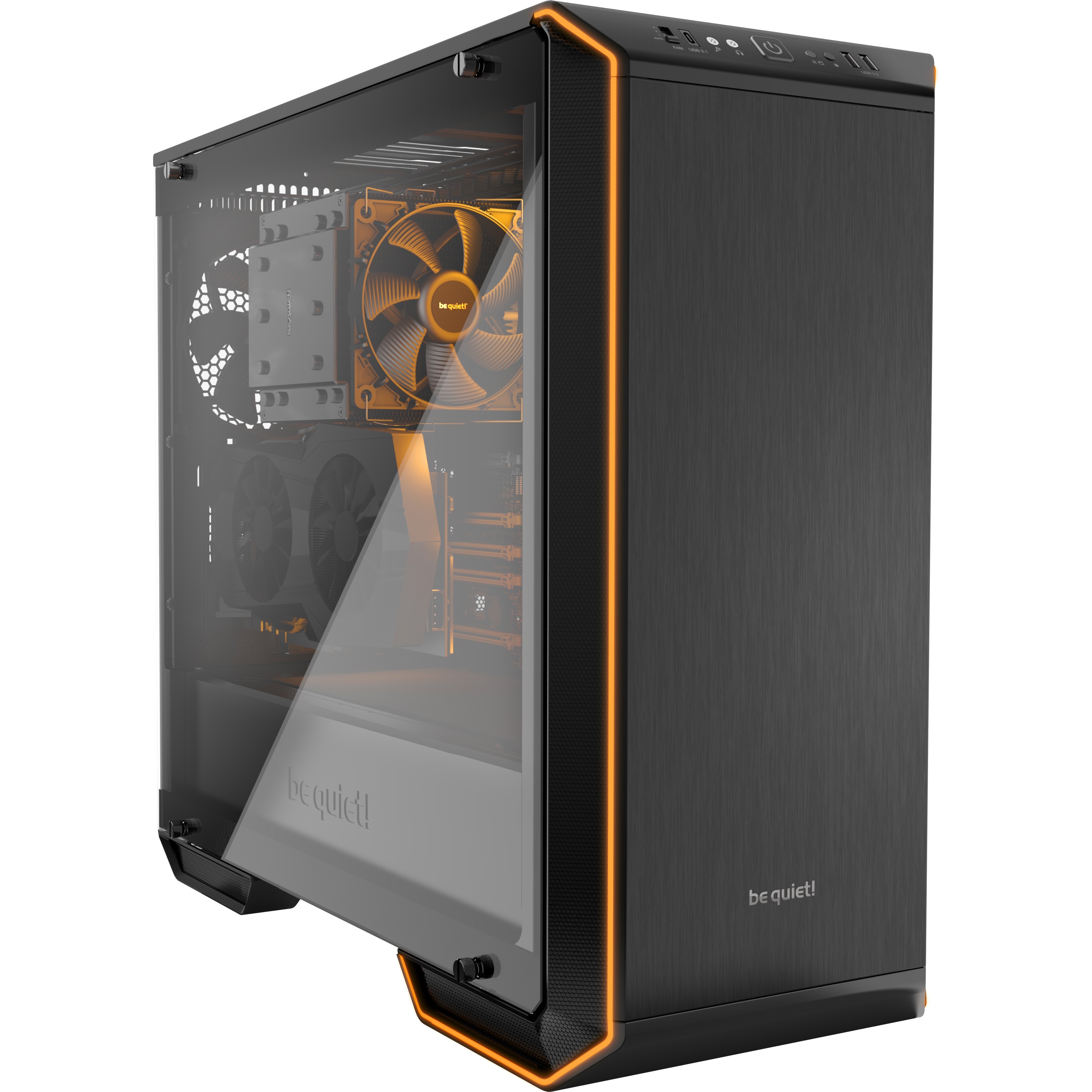

EYE-CATCHING FROM INSIDE AND OUTSIDE
Multi-mode RGB LEDs and elegant side window
The case is equipped with an elegant, fully windowed side panel that is made of tinted and tempered glass. The eye-catching exterior RGB LED illumination on the front panel comes in six switchable colors and three modes. LED synchronization with your motherboard or RGB controller is also an option.
SILENT WINGS 3
Impeccable cooling and silence
The two virtually inaudible SilentWings® 3 140mm PWM fans are equipped with a smooth-running 6-pole motor, durable fluid-dynamic bearing and an airflow-optimized fan blade. The frame has funnel-shaped air inlets that generate high air pressure. When set to Performance Mode the fans are able to achieve an impressive 1,600rpm.
DUAL RAIL FAN CONTROLLER
Creating separate cooling zones
The six PWM fan connectors are divided over two rails, and each is switchable between Silence and Performance Mode. This makes it possible to create two cooling zones that can be controlled by just the front panel switch. If you want all fans to run at the same speed, you can switch both channels to the same mode.
INGENIOUS COOLING CONCEPT
Optimized for overclocked and water-cooled PCs

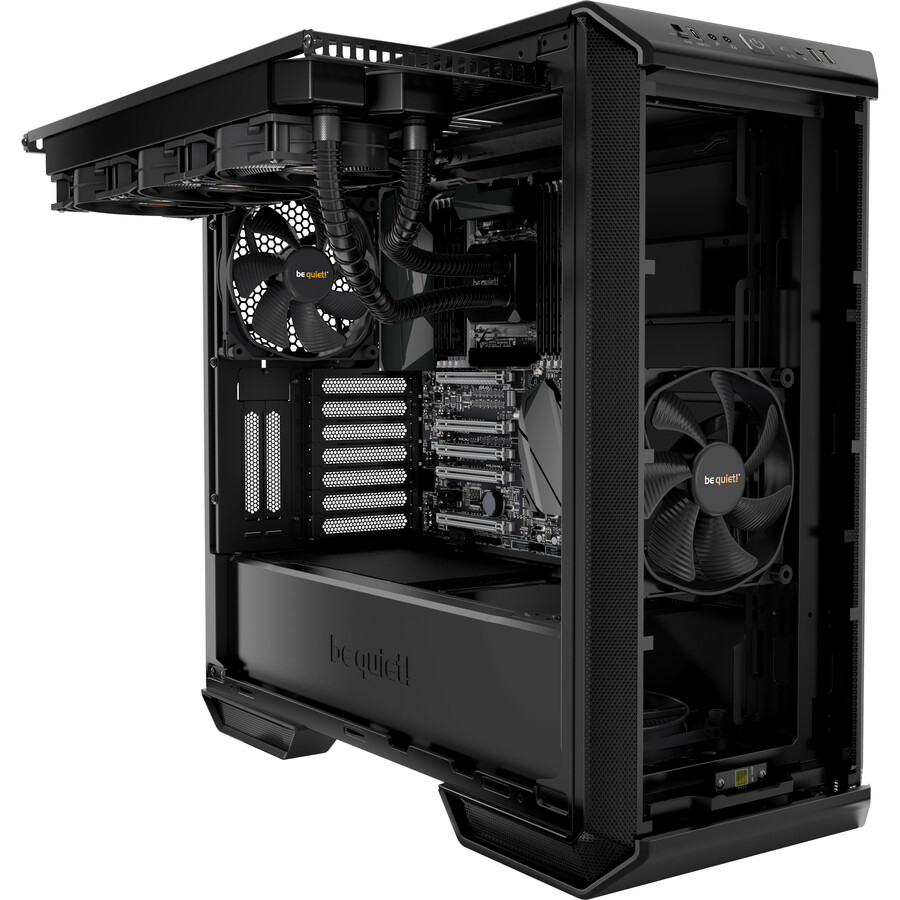

The Dark Base 700 creates an effective airflow with noise dampened vents that may be boosted by up to seven additional fans. There are also three areas provided for water coolers up to 360mm. A clever feature is the detachable top bracket on which you can install radiators and fans before mounting them as a complete unit into the case.
VERY FUNCTIONAL PSU SHROUD
Offering unexpected possibilities
The PSU shroud offers you a variety of solutions - not just for hiding the PSU and to keep the system neat and tidy. The cover plates are separately detachable, making it possible to install fans at the bottom of the case or the top of the PSU shroud and leave enough space for a radiator in the front.

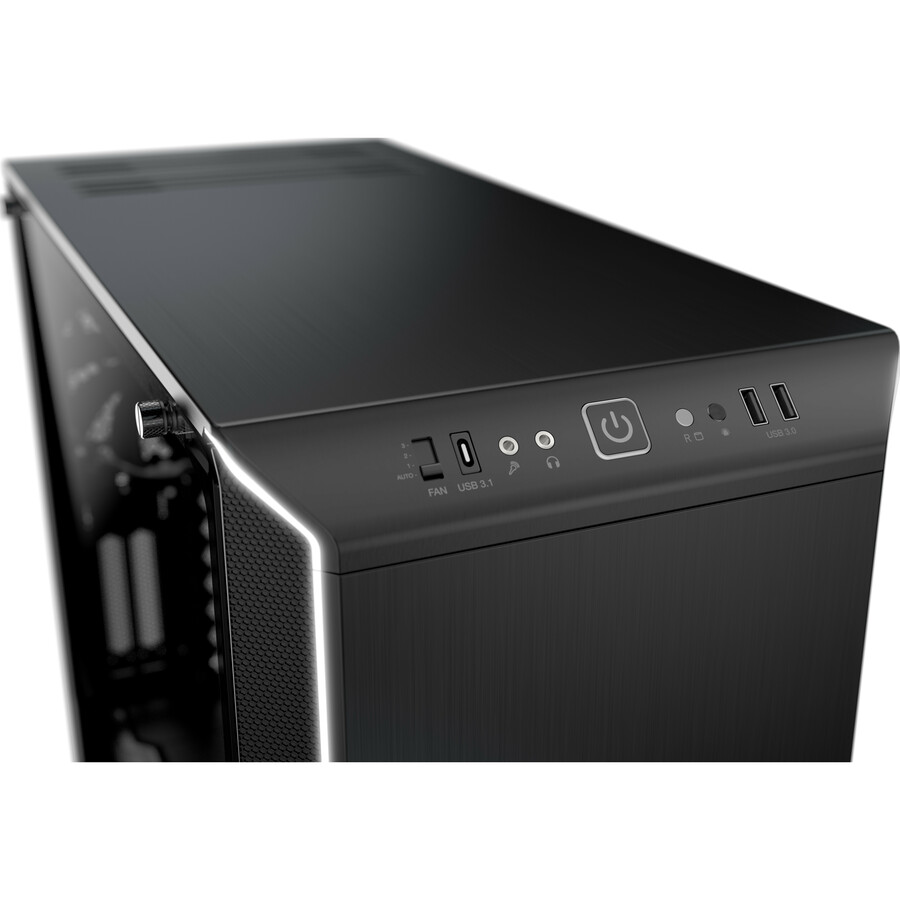

SMART I/O PORT
State-of-the-art technology for your system
The front I/O port provides you with some convenient features for your high-end PC. A connector of USB 3.1 Type C Gen 2 is supported. The dual rail PWM fan controller is controlled by the slider control on the front panel, with four possible settings to determine the speed of your fans. It can be set to PWM hub or operate in a manual 3-step mode. There is also a switch on the front panel to control the exterior LEDs.
| General Information | |
| Manufacturer | Listan GmbH & Co. |
| Manufacturer Part Number | BGW23 |
| Manufacturer Website Address | http://www.listan.de |
| Brand Name | be quiet! |
| Product Line | Dark Base 700 |
| Product Model | DARK BASE 700 |
| Product Name | DARK BASE 700 Computer Case |
| Product Type | Computer Case |
| Technical Information | |
| Motherboard Supported | Mini ITX |
| Motherboard Supported | Micro ATX |
| Motherboard Supported | EATX |
| Motherboard Supported | ATX |
| Number of Fans Supported | 9 |
| Number of Fans Installed | 1 |
| Installed Fan Size | 5.51" |
| Bays | |
| Number of Internal 3.5" Bays | 7 |
| Number of Internal 2.5" Bays | 17 |
| Number of Total Expansion Bays | 24 |
| I/O Expansions | |
| Total Number of Expansion Slots | 9 |
| Interfaces/Ports | |
| Total Number of USB Ports | 3 |
| Total Number of Audio In Ports | 1 |
| Total Number of Audio Out Ports | 1 |
| Power Description | |
| Power Supply Installed | No |
| Number of Power Supplies Supported | 1 |
| Number of Power Supplies Installed | 0 |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Product Material | ABS Plastic |
| Product Material | Aluminum |
| Product Material | Tempered Glass |
| Product Material | Steel |
| Form Factor | Mid-tower |
| Height | 20.4" |
| Width | 9.5" |
| Depth | 21.4" |
| Weight (Approximate) | 29.21 lb |
Specifications
- Mfr Part Number: BGW23
- Case Type: ATX Mid Tower
- Color: N/A
- Material:
- Top Cover: Aluminium
- Side Panel: Steel
- Side Panel Window: 4mm tempered glass
- Front Panel: ABS, Aluminium
- Stands: ABS
- M/B Type: E-ATX (30.5 x 27.5 cm), ATX, MicroATX, Mini-ITX
- Drive Bays: 24
- Internal: 7x 3.5", 17x 2.5"
- Expansion Slots: 7+2
- Cooling System:
- Front: 2x 140mm Fan Vents (Fans not included), 1x 140mm PWM be quiet! SilentWings 3 Fan
- Rear: 1x 140mm PWM be quiet! SilentWings 3 Fan
- Top: 3x 140mm / 3x 120mm Fan Vents (Fans not included)
- Bottom: 1x 120/140mm Fan Vents (Fans not included)
- Side Windows: Yes, 4mm Tempered Glass Window
- Front I/O Panel: 1x USB 3.1 Gen 2 Port (Type C), 2x USB 3.0 Ports, HD Audio I/O
- Maximum Compatibility:
- CPU Cooler Height: 180 mm
- VGA Card Length: 286 mm (HDD cage installed); 430 mm ( HDD cage removed)
- Power Supply: Supports ATX PS2 Power Supply, 285 mm (w/o bottom fan)/ 240 mm (w/ bottom fan) Max PSU Length
- Dimensions (WxLxH): 241.0 x 544.0 x 519.0 mm (w/ stands)
- Weight: 13.25 kg
