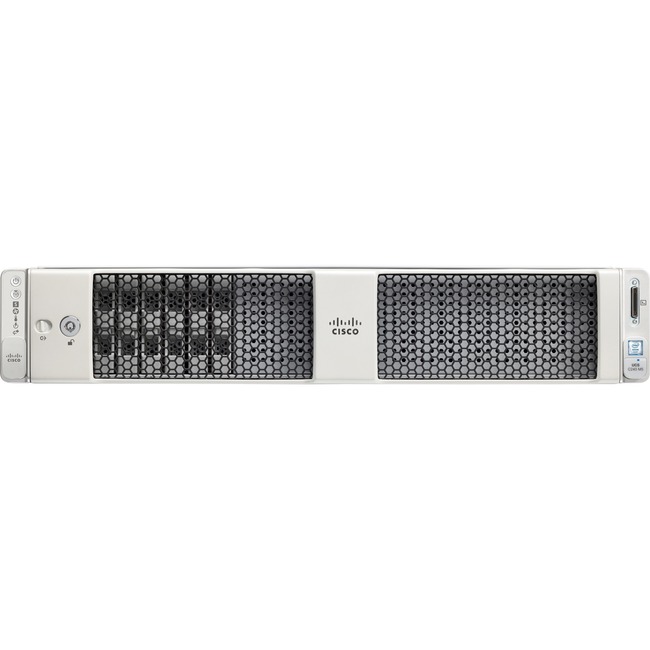

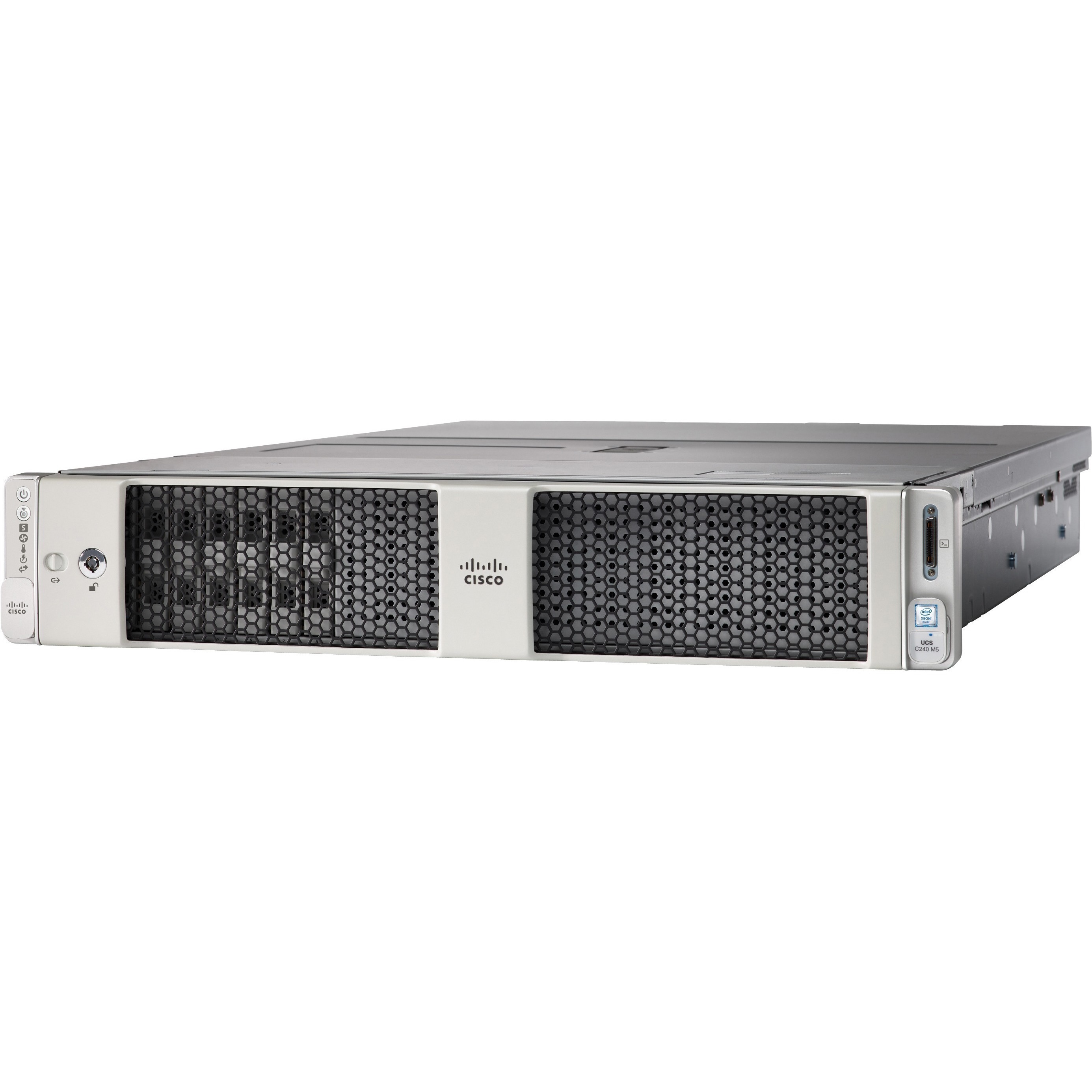

CISCO UCS-SP-C240M5-F1 SP C240 M5SX 2X5122 6X32GB MEM VIC1387

UCS C240 M5 SFF server extends the capabilities of Cisco's Unified Computing System portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666 MHz DDR4 DIMMs and capacity points up to 128GB, up to 6 PCI Express (PCIe) 3.0 slots, and up to 26 internal SFF drives. The C240 M5 SFF server also includes one dedicated internal slot for a 12G SAS storage controller card.

The latest update includes support for 2933 MHz DDR4 memory that is used with the latest 2nd Generation Intel® Xeon® Processor. With this combination and the new 512GB Intel® OptaneTM DC Persistent Memory (DCPMM - Data Center Persistent Memory Module), up to 9 TB of memory is possible (12x256GB DDR4 DIMMs1 and 12x512GB DCPMMs).

The C240 M5 server includes a dedicated internal modular LAN on motherboard (mLOM) slot for installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.

The Cisco UCS C240 M5 server can be used standalone, or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.

General Information
Manufacturer	Cisco Systems, Inc
Manufacturer Part Number	UCS-SP-C240M5-F1
Manufacturer Website Address	http://www.cisco.com
Brand Name	Cisco
Product Series	C240 M5
Product Name	UCS C240 M5 Server
Product Type	Server
Processor
Number of Processors Supported	2
Number of Processors Installed	2
Processor Type	Xeon Gold
Processor Model	5122
Processor Core	Octa-core (8 Core)
Processor Speed	2.10 GHz
Memory
Standard Memory	192 GB
Maximum Memory Supported	9 TB
Memory Technology	DDR4 SDRAM
Total Number of Memory Slots	24
Number of Occupied Memory Slots	6
Intel Optane Memory Ready	Yes
Storage
Total Hard Drive Capacity	No
Optical Drive Type	No
Controllers
Controller Type	12Gb/s SAS
RAID Supported	Yes
RAID Levels	0, 1, 5, 6, 10, 50, 60, JBOD
I/O Expansions
Number of Total Expansion Bays	26
Number of Internal 2.5" Bays	26
Hot Swappable Bays	Yes
Display & Graphics
Graphics Controller Model	G200e
Graphics Memory Capacity	8 MB
Network & Communication
Ethernet Technology	40 Gigabit Ethernet
Operating System
Operating System	No
Power Description
Input Voltage	120 V AC
Input Voltage	230 V AC
Number of Power Supplies Supported	2
Number of Power Supplies Installed	2
Maximum Power Supply Wattage	1600 W
Redundant Power Supply	Yes
Physical Characteristics
Form Factor	Rack-mountable
Rack Height	2U
Height	3.4"
Width	19"
Depth	30.2"
Weight (Approximate)	57.50 lb
Warranty
Limited Warranty	3 Year
