TAOGLAS
TAOGLAS MA850.A.LBICG.002 COLOSSEUM 5IN1 0.3M RG-174 GNSS-FAKRA LTE D:2.4/5.8GHZ
Mfg Part Number: MA850.A.LBICG.002 , Item #: 2999329
Image may not reflect the actual item.
Price: $103.17
Quantity:
In Stock: 39
Last Updated: Sep 10, 2025
No Sales Tax except these states
, PO and Wire.

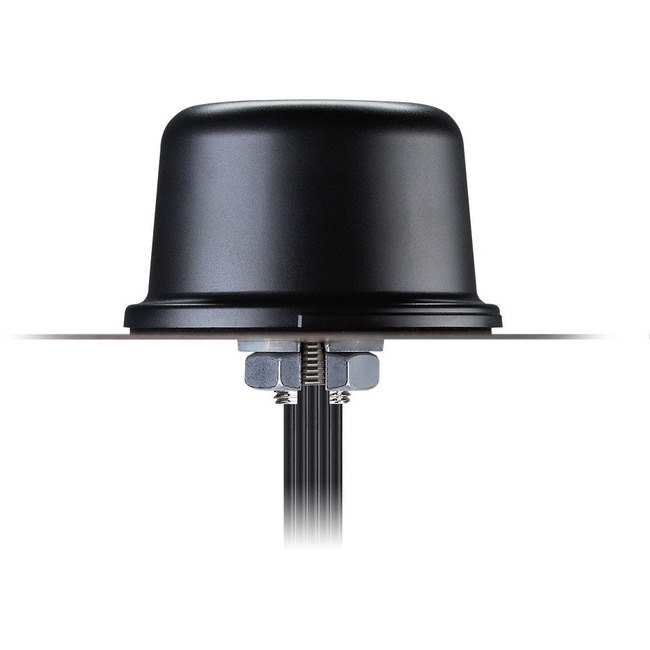

The Colosseum MA850 5in1 antenna is a low profile, heavy-duty, fully IP69K waterproof external M2M antenna for use in worldwide telematics applications which require best in class LTE, Wi-Fi and GNSS performance. It is ideal for solutions that do not have space for mounting the larger Pantheon dome antennas but still require good efficiency and gain. This unique product, at only 57.4mm tall, delivers powerful worldwide 4G LTE MIMO antenna technology at 700MHz/800MHz/1700MHz/1800MHz/2600MHz, dual-band Wi-Fi MIMO, plus GPS-GLONASS-GALILEO-BeiDou for next-generation location accuracy. The LTE antenna also includes legacy 3G and 2G bands to enable fallback using the correct modems in areas where there is no 4G signal.
Main Specification
| General Information | |
| Manufacturer | Taoglas |
| Manufacturer Part Number | MA850.A.LBICG.002 |
| Manufacturer Website Address | http://www.taoglas.com |
| Brand Name | Taoglas |
| Product Line | Colosseum |
| Product Model | MA850 |
| Product Name | Colosseum MA850 Antenna |
| Product Type | Antenna |
| Technical Information | |
| Operating Frequency Range | 1710 MHz to 2170 MHz |
| Operating Frequency Range | 698 MHz to 960 MHz |
| Operating Frequency Range | 2.4 GHz to 5.8 GHz |
| Operating Frequency Range | 2490 MHz to 2690 MHz |
| Antenna Gain (Isotropic) | 4.3 dBi |
| Antenna Type | Upper |
| Interfaces/Ports | |
| Connector Type | FAKRA |
| Physical Characteristics | |
| Product Color | Black |
| Height | 2.26" |
| Diameter | 3.71" |
| Weight (Approximate) | 8.82 oz |
| Miscellaneous | |
| Application/Usage | Wireless Data Network |
| Application/Usage | GPS |
| Application/Usage | Cellular Network |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| Warranty | |
| Limited Warranty | 1 Year |
