Elo TouchSystems
Elo TouchSystems E351600 2202L 22IN WIDE LCD DT FULL HD PROJ CAP 10TCH USB CTLR ZERO-BEZEL with Stand
Mfg Part Number: E351600 , Item #: 2985671
, PO and Wire.

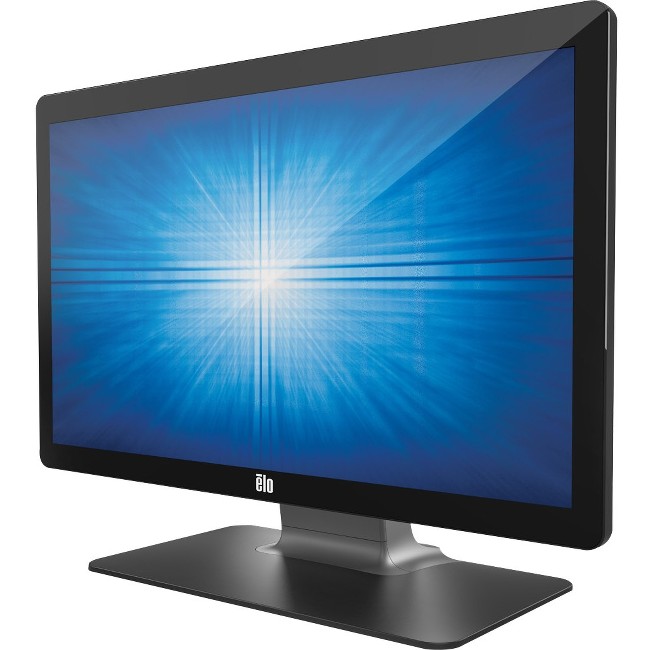

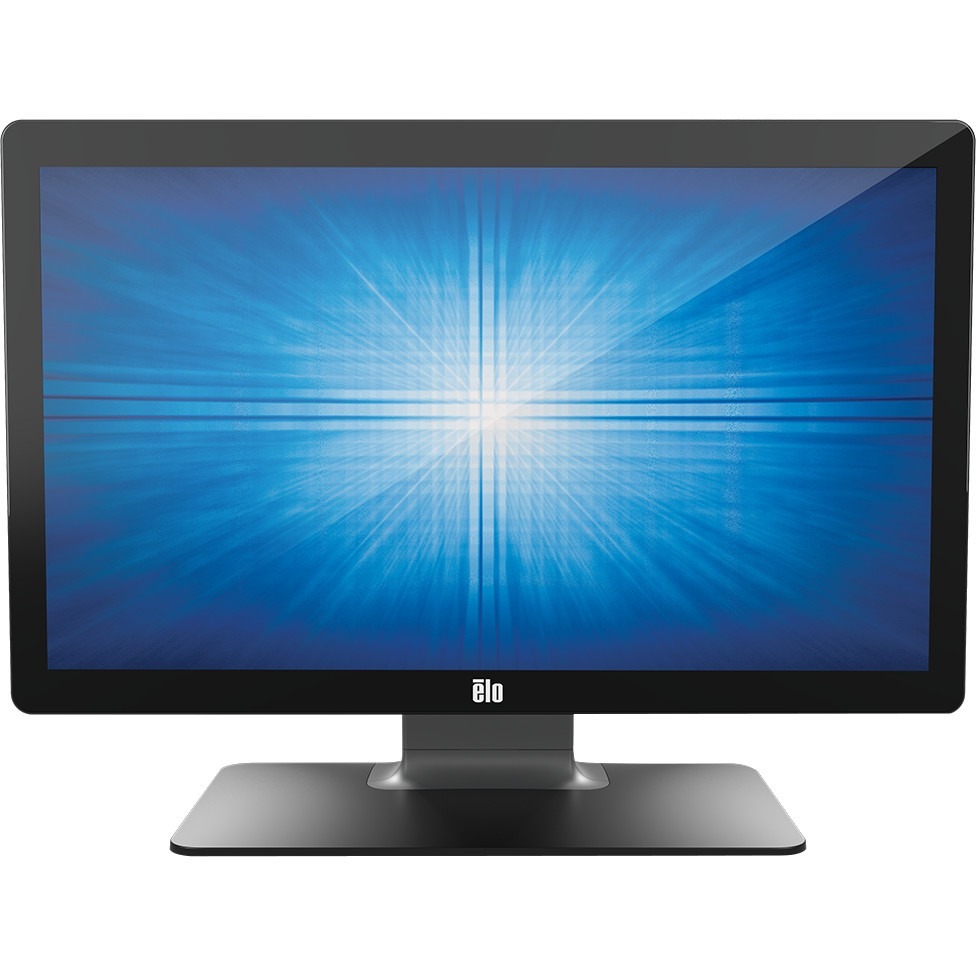

2202L Touchscreen Monitor
The Elo 02-Series of Touchscreen Monitors designed with seamless style across all sizes includes four options - a 19-inch square aspect ratio display and 22, 24 and 27-inch wide aspect ratio displays. With a compact form factor and clean design for easy integration, the 02-Series monitors are well-suited for point-of-sale, point of information, signage and hospitality applications. And with a variety of peripherals, the monitors can be transformed to meet the demands of your blueprint.
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo's industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for...
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Connect your Accessories
From a barcode scanner to an EMV, Elo's 02-Series Monitors are compatible with a large set of peripherals purpose-built for commercial applications.
Fingerprint Reader
The Biometric Fingerprint Reader can be attached to provide secure and quick login.
MSR
Elo offers the flexibility of integrating payment devices, including a Magtek 3-track encryptable MSR payment terminal.
Barcode Scanner
Enhance self-service checkout and price-checker applications by coupling a high-performance barcode scanner onto the Elo touchscreen.
NFC
The Near Field Communication (NFC) adapter can be integrated for easy mobile payments with just a touch of the phone.
Privacy Matters
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.
One for You. One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Privacy Matters
Optional privacy screens can help provide a physical safeguard for private information or sensitive data from the view of others. Whether you are the employee or the customer, privacy matters.
One for You. One for Your Customers.
Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.

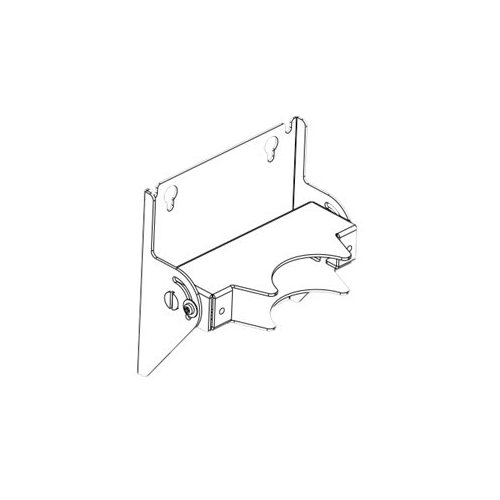

Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
| General Information | |
| Manufacturer | Elo Touch Solutions, Inc |
| Manufacturer Part Number | E351600 |
| Manufacturer Website Address | http://www.elotouch.com |
| Brand Name | Elo |
| Product Series | 02 |
| Product Model | 2202L |
| Product Name | 2202L 22" Touchscreen Monitor |
| Packaged Quantity | 1 |
| Product Type | LCD Touchscreen Monitor |
| Technical Information | |
| Screen Size Class | 22" |
| Viewable Screen Size | 21.5" |
| Screen Mode | Full HD |
| Panel Technology | Thin Film Transistor (TFT) |
| Response Time | 14 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Shelf Mount |
| Mount Type | Pole Mount |
| Mount Type | Wall Mountable |
| Placement | Tabletop |
| Backlight Technology | LED |
| Features | Cable Lock Slot |
| Features | On-screen Display (OSD) |
| Horizontal Frequency | 30 kHz to 82 kHz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Curved Screen | No |
| Video | |
| Maximum Resolution | 1920 x 1080 |
| Color Supported | 16.7 Million Colors |
| Contrast Ratio | 3,000:1 |
| Native Contrast Ratio | 1,000:1 |
| Brightness | 250 Nit |
| Audio | |
| Speakers | Yes |
| Touchscreen Information | |
| Touchscreen Type | TouchPro Projected Capacitive |
| Multi-touch Screen | Yes |
| Number of Simultaneous Touchpoints | 10 |
| Interfaces/Ports | |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| Built-in Devices | |
| Built-in Devices | USB Hub |
| Power Description | |
| Operating Power Consumption | 22.50 W |
| Physical Characteristics | |
| Product Color | Black |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 100 x 100 |
| Height | 12.9" |
| Width | 20.7" |
| Depth | 1.7" |
| Height with Stand | 15.11" |
| Width with Stand | 20.74" |
| Depth with Stand | 7.61" |
| Weight (Approximate) | 10.47 lb |
| Weight with Stand (Approximate) | 14.88 lb |
| Miscellaneous | |
| Package Contents |
|
| TAA Compliant | No |
| Warranty | |
| Limited Warranty | 3 Year |
