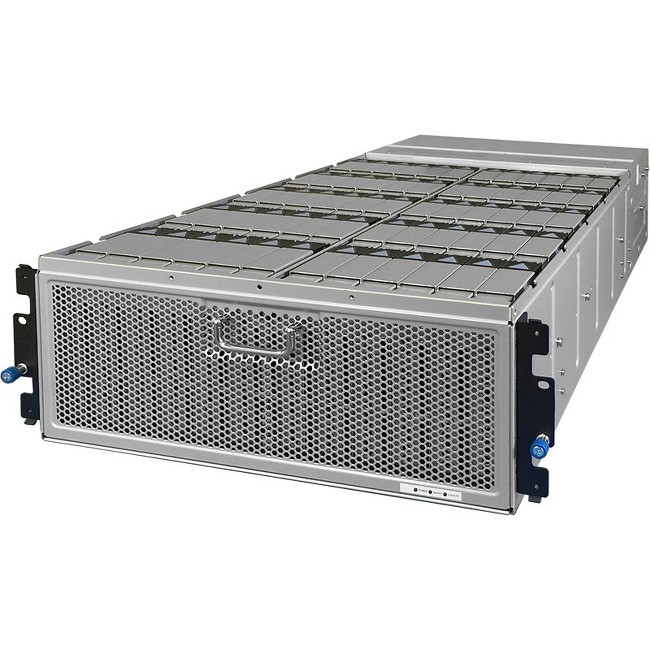

When data centers need storage expansion that delivers low power and high capacity with high-availability, they rely on the HGST 4U60G2 Storage Platform. This high density, scalable, and cost-effective design includes up to 60 Ultrastar® 3.5-inch drive modules in a 4U enclosure, supports up to 8 hosts with SAS 12Gb/s performance, and delivers enterprise-class serviceability with hot-swappable components.
This integrated platform is qualified, tested and certified to support a broad range of HGST HDDs. It's available with SAS drives for high-availability (HA) applications, with SATA drives for cost-optimized applications, and can be configured with up to twelve (12) 800GB SSDs to create separate performance tiers within the platform.
Main Specification
| General Information | |
| Manufacturer | Western Digital Corporation |
| Manufacturer Part Number | 1ES0365 |
| Manufacturer Website Address | http://www.wdc.com |
| Brand Name | HGST |
| Product Model | 4U60 |
| Product Name | 4U60 Drive Enclosure |
| Product Type | Drive Enclosure |
| Technical Information | |
| Number of Hard Drives Supported | 60 |
| Number of Hard Drives Installed | 60 |
| Total Hard Drive Capacity Installed | 720 TB |
| Number of Solid State Drive Supported | 12 |
| Number of Solid State Drive Installed | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 60 |
| Number of 3.5" Bays | 60 |
| Interfaces/Ports | |
| Host Interface | 12Gb/s SAS |
| Physical Characteristics | |
| Cooling Fan | Yes |
| Form Factor | Rack-mountable |
| Rack Height | 4U |
| Height | 6.9" |
| Width | 16.7" |
| Depth | 34.7" |
| Weight (Approximate) | 198 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 5 Year |
