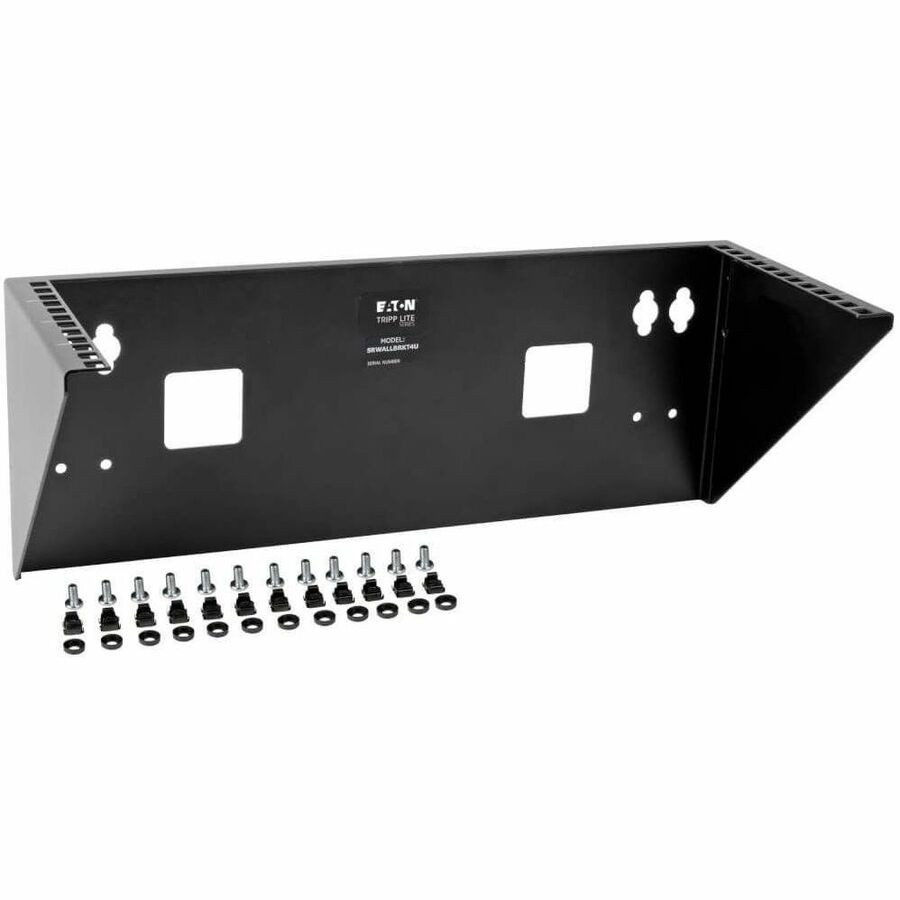

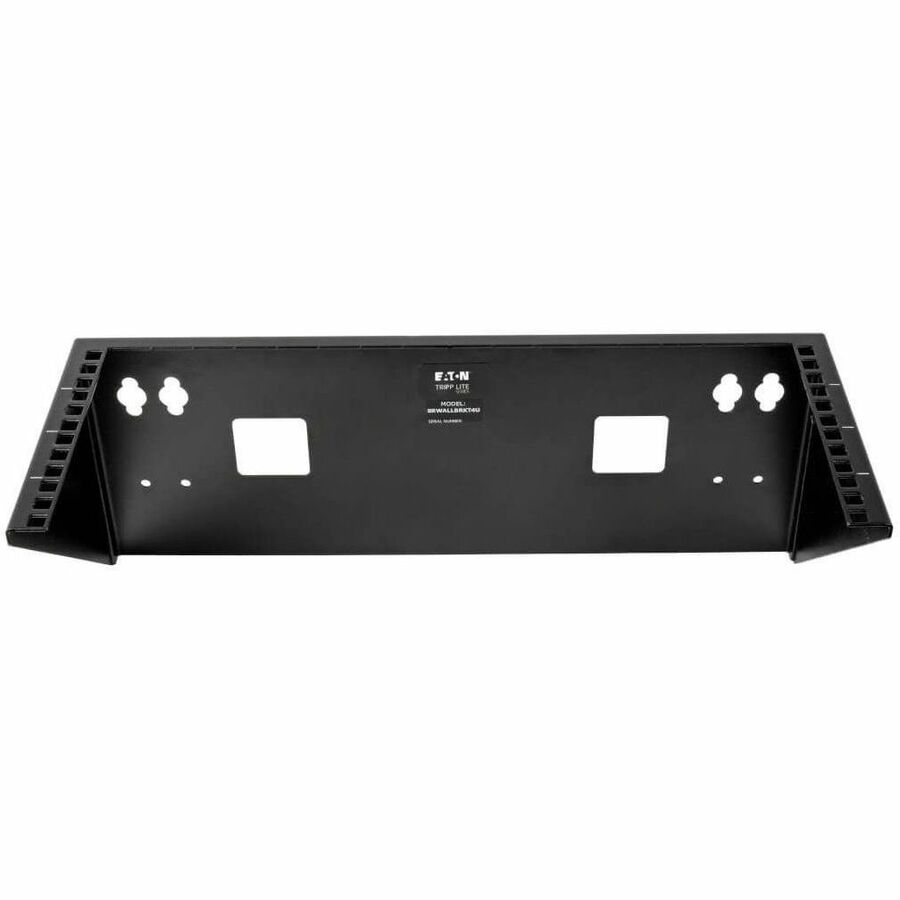

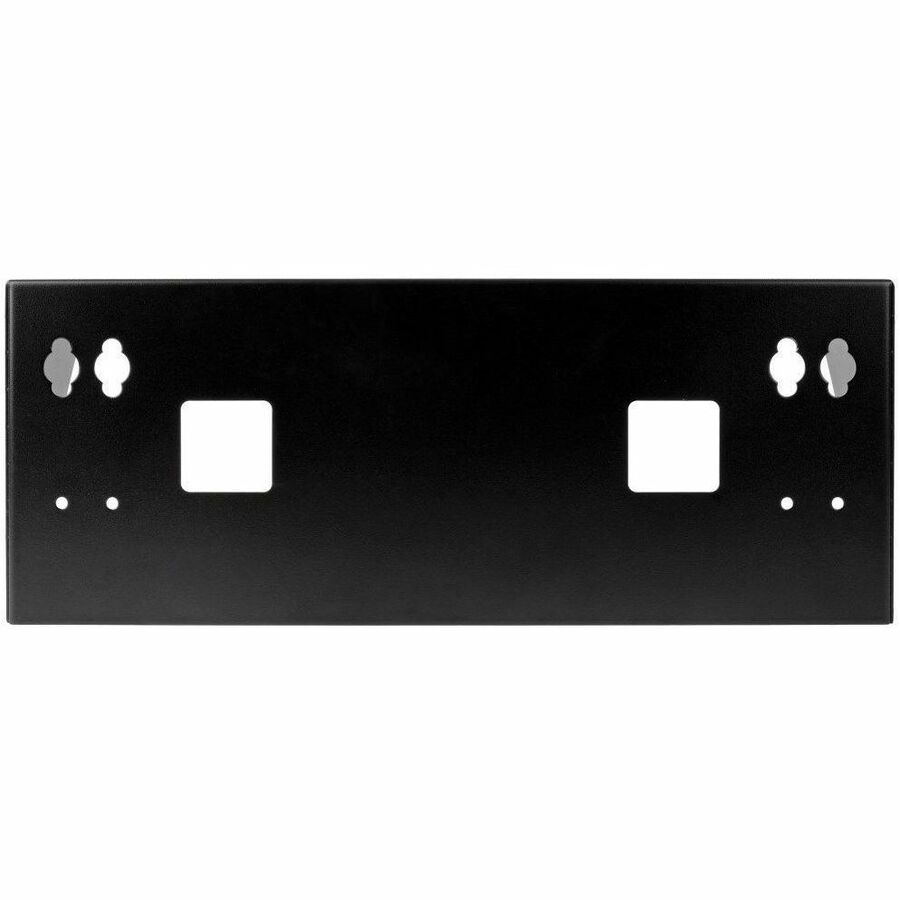

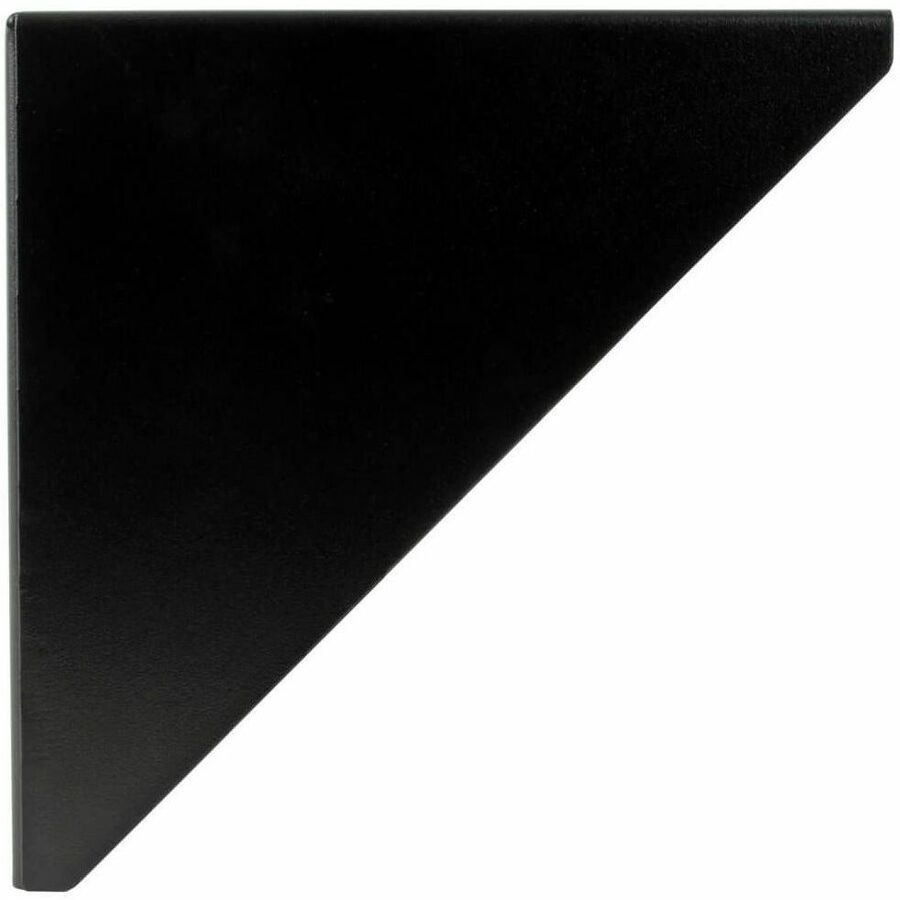

SRWALLBRKT4U Tripp Lite Wallmount Rack 4U Vertical Rack Bracket 175lb Capacity - Black

The SRWALLBRKT4U SmartRack® 4U Vertical Wall-Mount Rack Bracket is recommended for home offices and small businesses with rack-mount equipment that doesn't need to be secured and no room on the premises for a standard 19-inch wall-mount rack.

Made from heavy-duty cold-rolled steel with a durable black powder-coated finish, this 4U wall-mount bracket easily attaches to the wall of your back office or closet with user-supplied hardware. Wall-mounting holes are spaced 16 inches part to match standard wall-stud placement. Or you can install the bracket horizontally beneath a desk or workbench for instant access.

Use the included hardware to attach your 4U rack-mount equipment, such as a network switch or UPS system, to the steel bracket's rails. Its maximum load capacity is 175 pounds. Connected equipment hangs flush against the wall, allowing you unrestricted access. The SRWALLBRKT4U is compatible with most EIA-standard 19-inch two-post rack equipment.

General Information
Manufacturer	Tripp Lite by Eaton
Manufacturer Part Number	SRWALLBRKT4U
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Line	SmartRack
Product Model	SRWALLBRKT4U
Product Name	SmartRack 4U Vertical Wall-Mount Rack Bracket
Packaged Quantity	1
Product Type	Mounting Bracket
Product Information
Device Supported	Server
Device Supported	UPS
Device Supported	Network Switch
Maximum Load Capacity	175 lb
Physical Characteristics
Color Family	Black
Product Color	Black
Height	7.7"
Width	19.7"
Depth	7.7"
Weight (Approximate)	5.29 lb
Miscellaneous
Package Contents	SmartRack 4U Vertical Wall-Mount Rack Bracket 12 x M6 Screws 12 x M6 Cup Washers 12 x M6 Cage Nuts Installation Guide
Environmentally Friendly	Yes
Country of Origin	China
Warranty
Limited Warranty	5 Year
