TRIPP LITE
TRIPP LITE SVT10KX SMART ONLINE 3-PHASE TWR 10KVA INTL 380/400/415V 9KW HRDWR EXT RUN
Mfg Part Number: SVT10KX , Item #: 2972721
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.

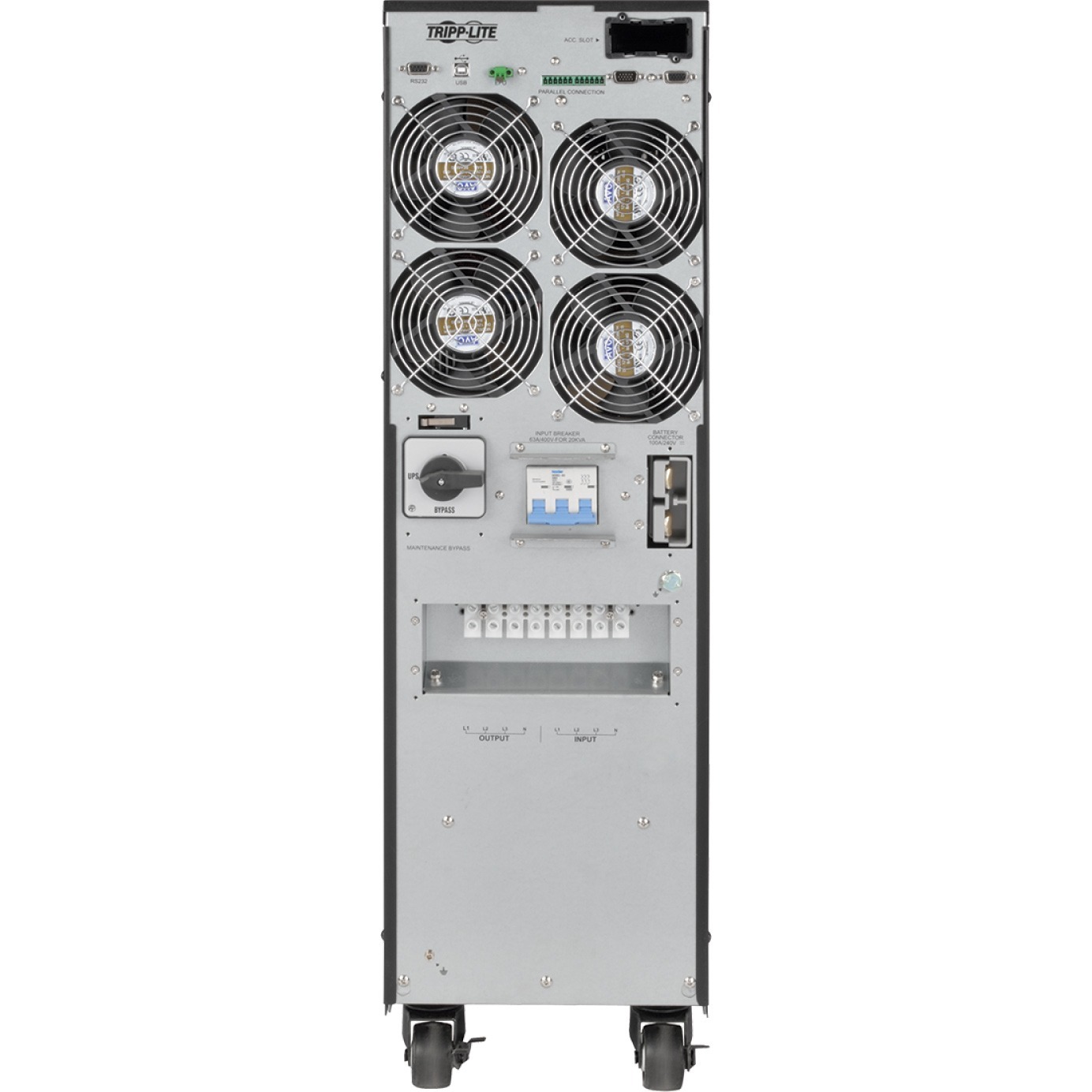

The SVT10KX SmartOnline® SVTX Series 3-Phase 380/400/415V 10kVA 9kW On-Line Double-Conversion UPS with IGBT technology provides battery backup and AC power protection against power disturbances that can damage electronics or destroy data. It's recommended for critical IT or corporate infrastructure, telecom, LAN/WAN, security and emergency, financial and light industrial applications.
The SVT10KX's VFI design allows continuous operation at any supported voltage at either 50 or 60 Hz. Zero transfer time to battery mode ensures no disruption to the attached loads. Automatic and Manual Bypass keeps connected equipment powered even during overloads and UPS maintenance.
IGBT inverter technology produces output power with less than 2% total harmonic distortion (THD) to keep connected equipment functioning at its peak. A 3:1 crest factor safely supports a variety of loads, even those with wildly fluctuating power demands.
Managing the SVT10KX is simplified through the interactive front-panel LCD interface, which displays critical operating conditions and diagnostic data, such as load levels, available runtime, alarm status, battery charge, and voltage and frequency values. Four LEDs indicate bypass, line, battery and fault modes. A serial port allows connection to Tripp Lite's free local shutdown agent. A built-in card slot supports WEBCARDLX or RELAYCARDSV for network interface and remote monitoring and control. The SVT10KX's reduced size and small footprint save valuable space.
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | SVT10KX |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Line | SmartOnline |
| Product Series | SVTX |
| Product Model | SVT10KX |
| Product Name | SmartOnline SVT10KX 10kVA Tower UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | Hardwired |
| Receptacle Type | Hardwired |
| Power Description | |
| Load Capacity (VA) | 10000 VA |
| Input Voltage | 220 V AC |
| Input Voltage | 230 V AC |
| Input Voltage | 415 V AC |
| Input Voltage | 380 V AC |
| Input Voltage | 240 V AC |
| Input Voltage | 400 V AC |
| Output Voltage | 230 V AC |
| Output Voltage | 240 V AC |
| Output Voltage | 380 V AC |
| Output Voltage | 415 V AC |
| Output Voltage | 400 V AC |
| Output Voltage | 220 V AC |
| Management | |
| Network Management | SNMP/HTTP Remote Monitoring |
| Battery Information | |
| Backup/Run Time (Full Load) | 3.80 Minute |
| Backup/Run Time (Half Load) | 10.50 Minute |
| Physical Characteristics | |
| Form Factor | Tower |
| Height | 33.9" |
| Width | 9.8" |
| Depth | 32" |
| Weight (Approximate) | 260 lb |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
