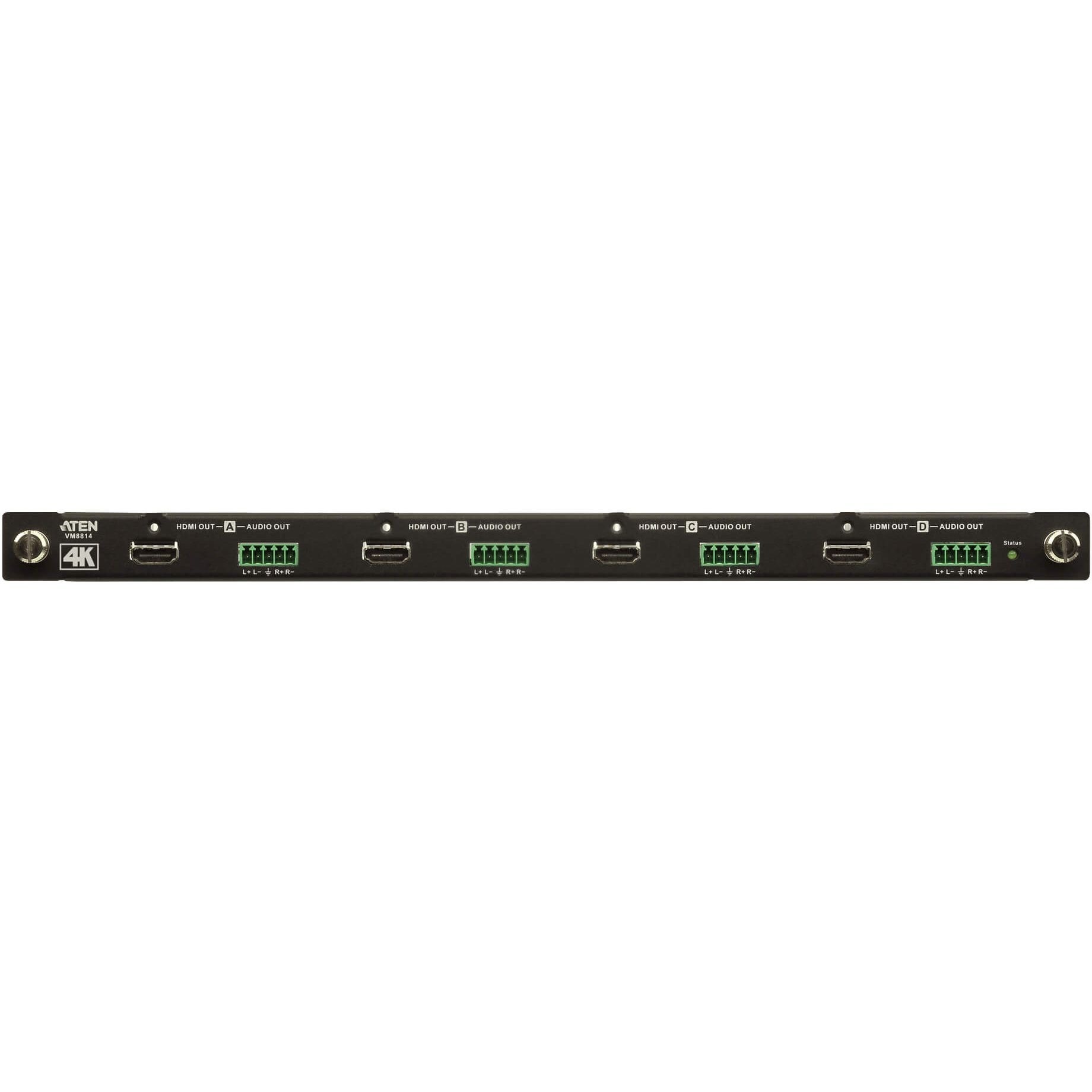

ATEN VM8814 4PORT 4K HDMI OUTPUT CARD

Mfg Part Number:  VM8814
Image may not reflect the actual item.
Price: $2,509.88 + Free Shipping
Quantity:
In Stock: 1
Last Updated: Oct 21, 2025
No Sales Tax except these states
, PO and Wire.

The VM8814 is a 4K HDMI output board that works with an ATEN Modular Matrix Switch to offer an easy way to route 4 HDMI sources to 4 displays. In addition to the HDMI interface that carries digital A/V signals, the VM8814 is equipped with 4 stereo audio output ports that allow HDMI audio extraction.

Considering the need for fast video switching and resolution adaptation in video wall applications, the VM8814 supports Seamless Switch™ and EDID Expert™ that make real-time video switching possible, and contains a built-in 4K scaler that handles different video resolutions. The ATEN VM input/output boards support hot-swappable installation that gives system integrators great flexibility and efficiency for maintenance. The ATEN VM input/output boards along with ATEN Modular Matrix Switches offer ideal solutions that perfectly meet your demands for video-critical applications.

Main Specification
General Information
Manufacturer ATEN Technology, Inc
Manufacturer Part Number VM8814
Manufacturer Website Address http://www.aten.com/us/en/
Brand Name ATEN
Product Series VM
Product Model VM8814
Product Name 4-Port 4K HDMI Output Board with Scaler
Packaged Quantity 1
Product Type HDMI Output Module
Physical Characteristics
Product Material Metal
Material Details
  • Metal - Housing
Form Factor Rack-mountable
Height 0.9"
Width 9.4"
Length 13.9"
Weight (Approximate) 1.43 lb
Miscellaneous
Package Contents
  • 4-Port 4K HDMI Output Board with Scaler
  • 4 x Terminal Blocks
  • 1 x User Instructions
Additional Information
  • Video Output
  • Interfaces 4 x HDMI Type A Female (Black)
  • Impedance 100 ?
  • Max. Distance Up to 15m
  • Video
  • Max. Data Rate 10.2 Gbps (3.4 Gbps Per Lane)
  • Max. Pixel Clock 340 MHz
  • Compliance HDMI (3D, Deep Color, 4K)
  • HDCP 2.2 Compatible
  • Consumer Electronics Control (CEC)
  • Max. Resolution 4096x2160/3840x2160@60Hz (4:2:0);
  • 4096x2160/3840x2160@30Hz (4:4:4)
  • Audio
  • Output 4 x Captive Screw Connector, 5 pole
  • Power Consumption 20W:94BTU
  • Environmental
  • Operating Temperature 0 - 40°C
  • Storage Temperature -20 - 60°C
  • Humidity 0 - 80% RH, Non-Condensing
Application/Usage Matrix Switcher
Compatibility ATEN Matrix Switchers:
  • VM1600
  • VM3200
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
