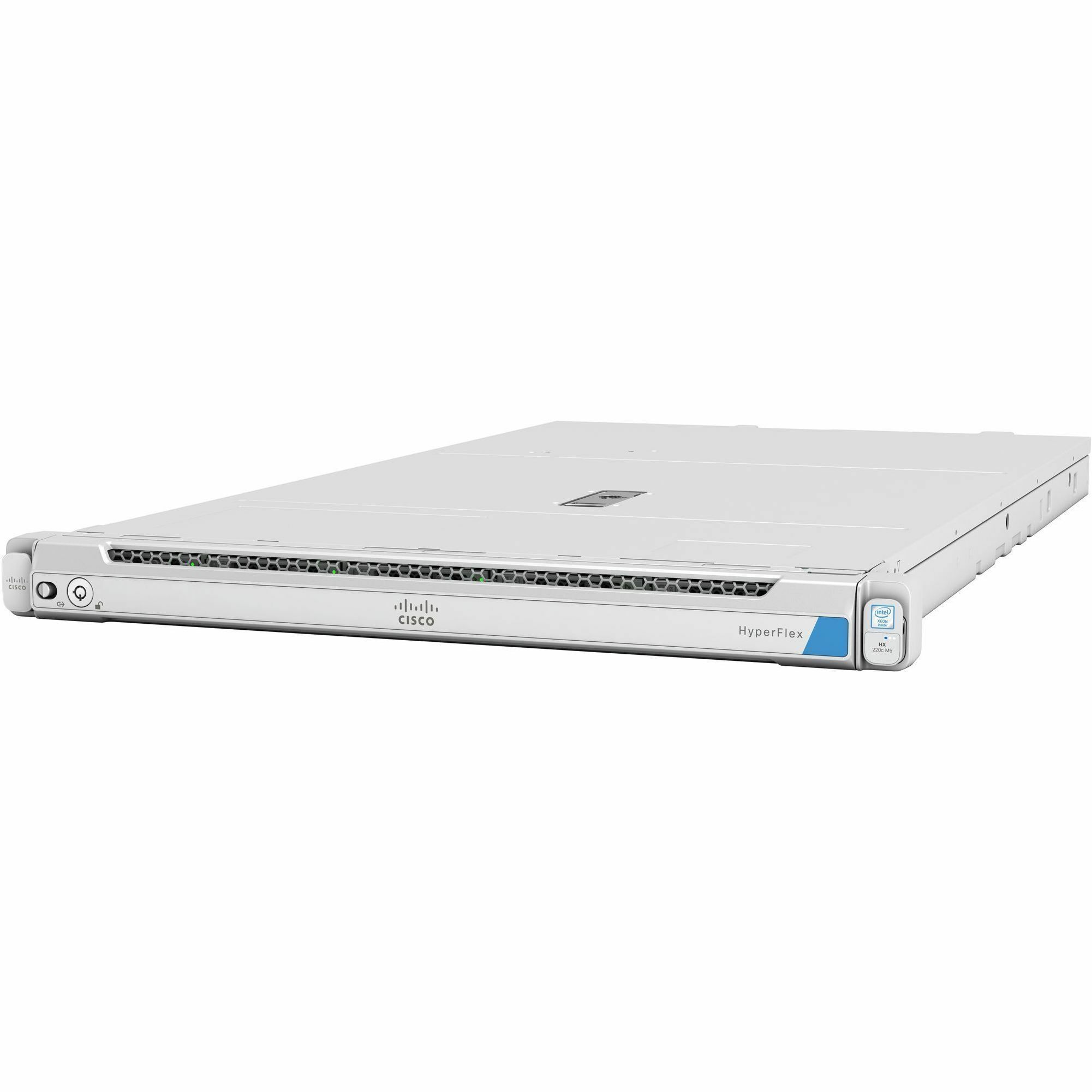

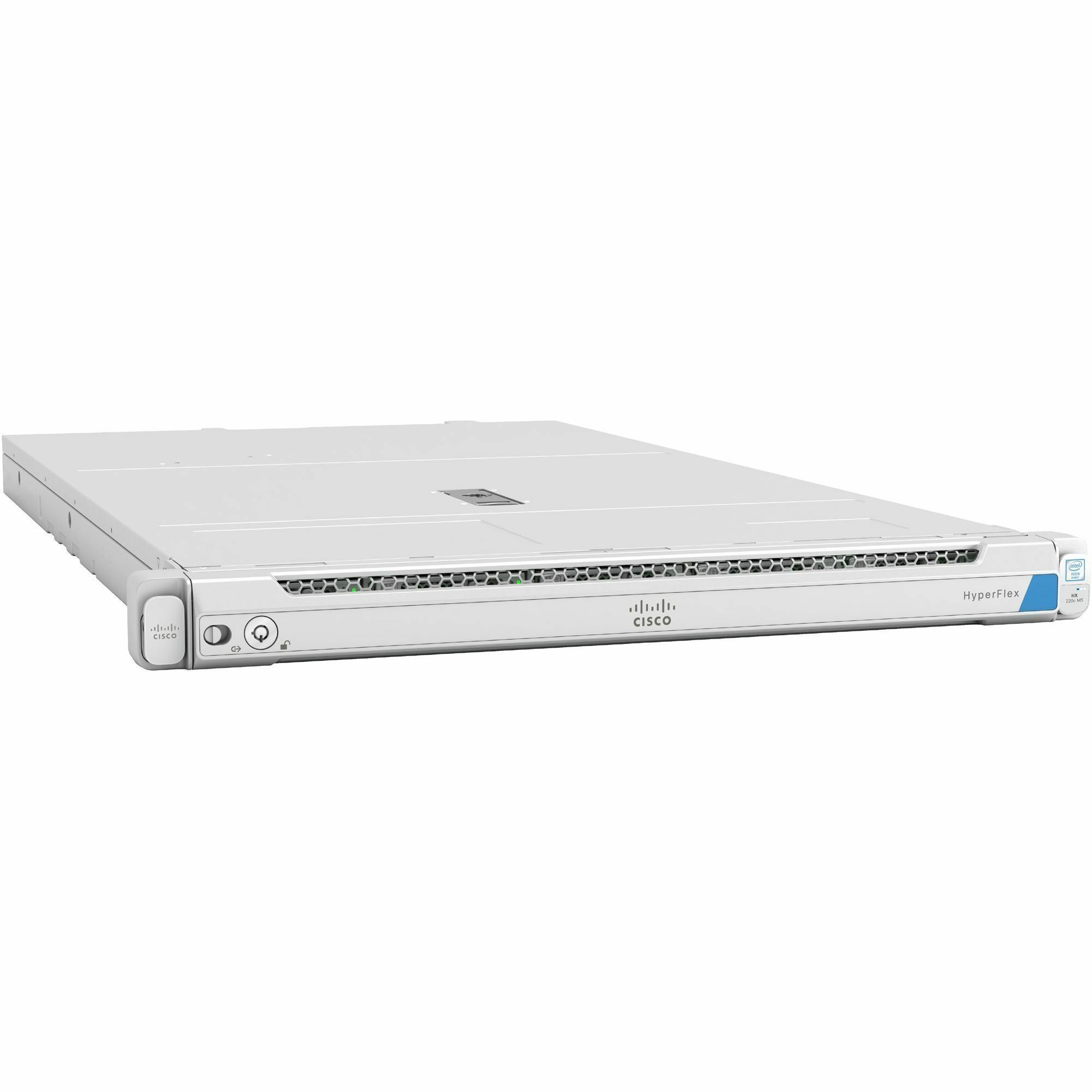

HX-SP-220M5SX-E Cisco UCS Smart Play Select HX220c Hyperflex System - Server - rack-mountable - 1U - 2-way - 2 x Xeon Bronze 3106 / 1.7 GHz - RAM 128 GB - SATA/SAS - hot-swap 2.5" - SSD 240 GB - Pilot 4 - 10 GigE - monitor: none
Mfg Part Number: HX-SP-220M5SX-E , Item #: 2968999
Image may not reflect the actual item.
Price: $8,802.77
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 06, 2025
No Sales Tax except these states
, PO and Wire.
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
The HX220c M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory.
The HX220c M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
The latest update includes support for 2nd Generation Intel® Xeon® Scalable Processors, 2933-MHz DDR4 memory.
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HXSP220M5SXE |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Series | HX220c M5 |
| Product Name | Hyperflex HX220c M5 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Bronze |
| Processor Model | 3106 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 1.70 GHz |
| Cache | 11 MB |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C621 |
| Memory | |
| Standard Memory | 128 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Error Checking | ECC |
| Number of Occupied Memory Slots | 8 |
| Signal Processing | Registered (Buffered) |
| I/O Expansions | |
| Hot Swappable Bays | Yes |
| Display & Graphics | |
| Graphics Controller Model | Pilot 4 |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Network (RJ-45) | Yes |
| VGA | Yes |
| Number of VGA Ports | 1 |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 19" |
| Depth | 31" |
| Weight (Approximate) | 37.50 lb |
| Miscellaneous | |
| Country of Origin | United States |
