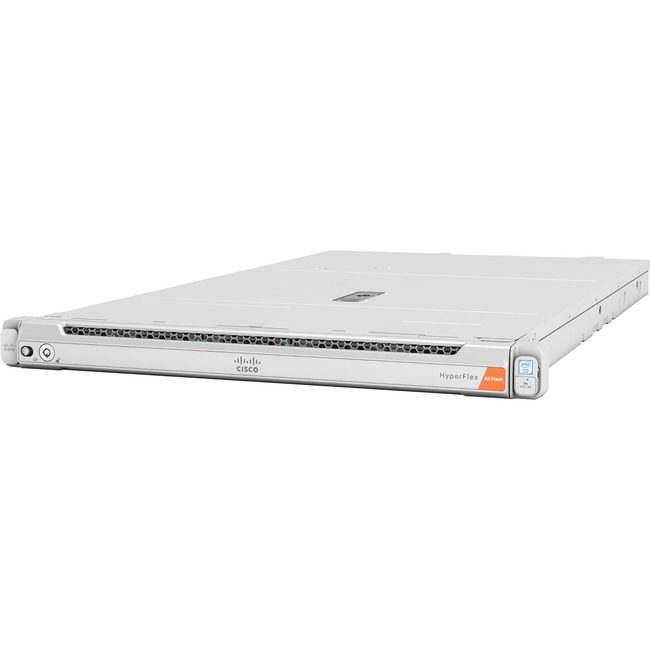

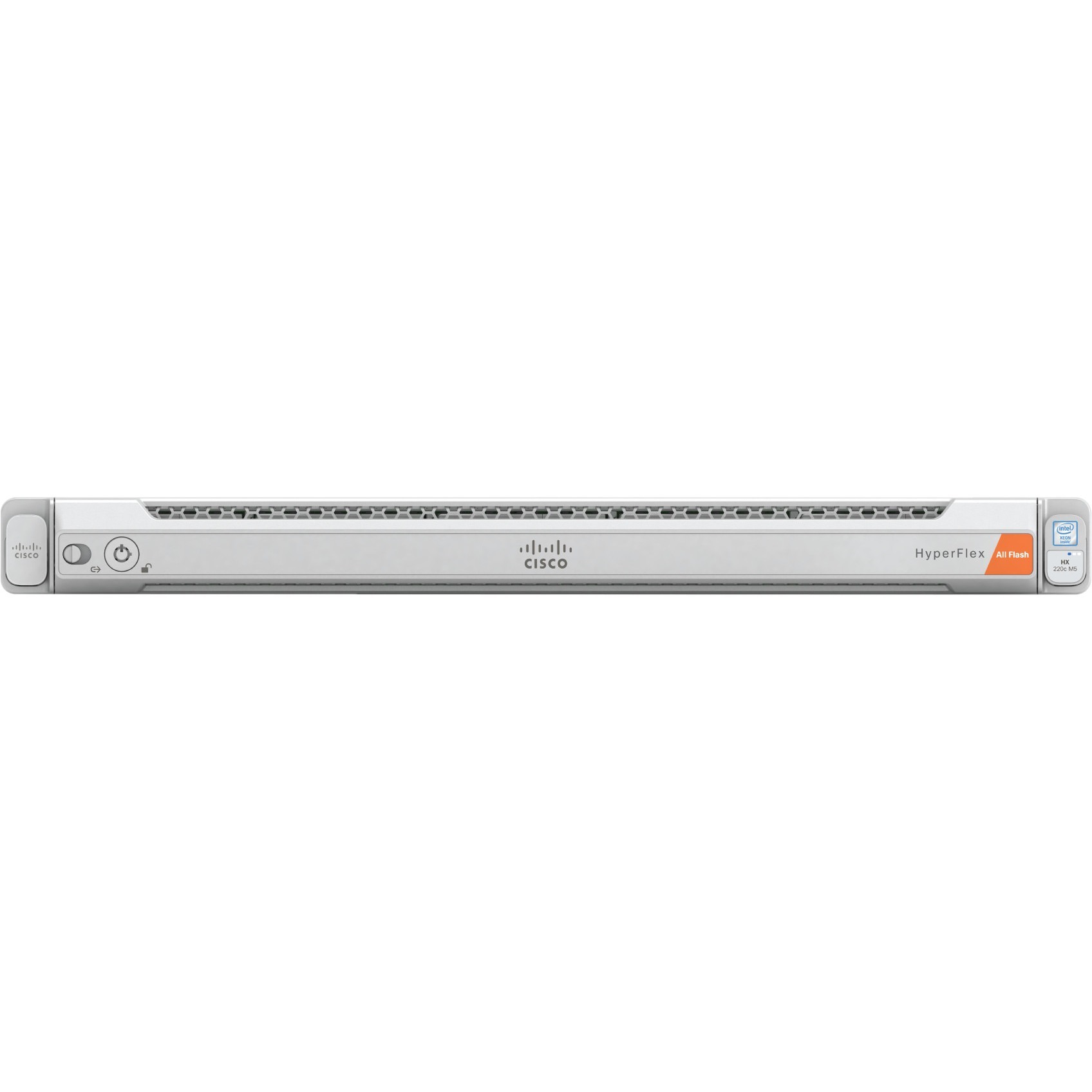

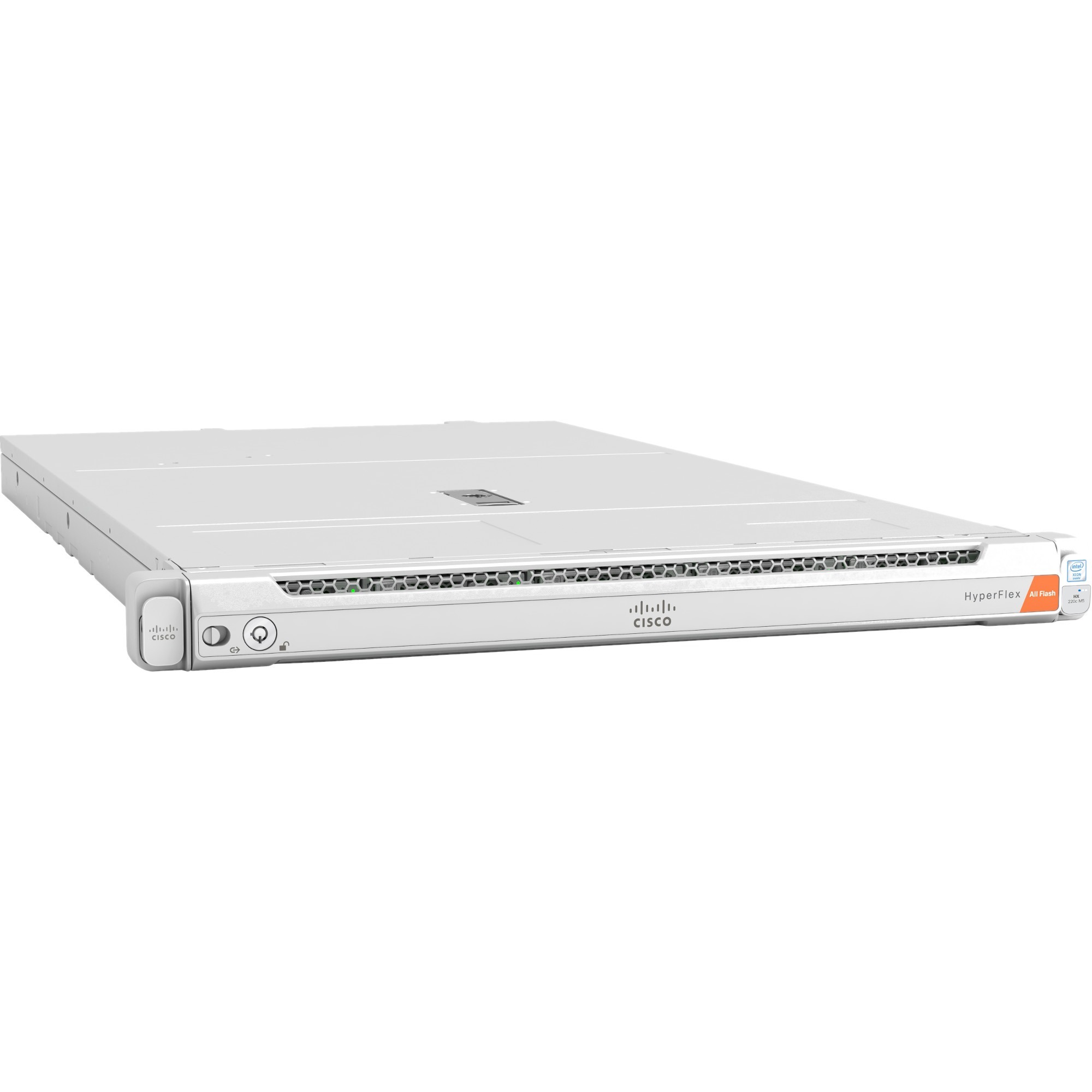

HXAF-SP-220M5SX-V Cisco UCS Smart Play Select HXAF220c Hyperflex System - Server - rack-mountable - 1U - 2-way - 2 x Xeon Silver 4114 / 2.2 GHz - RAM 192 GB - SATA/SAS - hot-swap 2.5" - SSD 240 GB - Pilot 4 - 40 Gigabit LAN - monitor: none
Mfg Part Number: HXAF-SP-220M5SX-V , Item #: 2968864
Image may not reflect the actual item.
Price: $11,614.35
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 06, 2025
No Sales Tax except these states
, PO and Wire.
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
The HXAF220c M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
The HXAF220c M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 1U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots with configuration options ranging from 128GB up to 3TB of DRAM, and an all flash footprint of cache and capacity drives for highly available, high performance storage.
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HXAF-SP-220M5SX-V |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Series | HXAF220c M5 |
| Product Name | HyperFlex HXAF220c M5 Server |
| Product Type | Server |
| Processor | |
| Number of Nodes | 1 |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Silver |
| Processor Model | 4114 |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 2.20 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C620 |
| Memory | |
| Standard Memory | 192 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Memory Standard | DDR4-2666/PC4-21300 |
| Total Number of Memory Slots | 24 |
| Number of Occupied Memory Slots | 12 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 10 |
| Number of Internal 2.5" Bays | 10 |
| Hot Swappable Bays | Yes |
| Display & Graphics | |
| Graphics Controller Model | Pilot 4 |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Interfaces/Ports | |
| Total Number of USB Ports | 2 |
| Number of USB 3.0 Ports | 2 |
| Power Description | |
| Number of Power Supplies Supported | 2 |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 19" |
| Depth | 31" |
| Weight (Approximate) | 37.50 lb |
