CLUB 3D

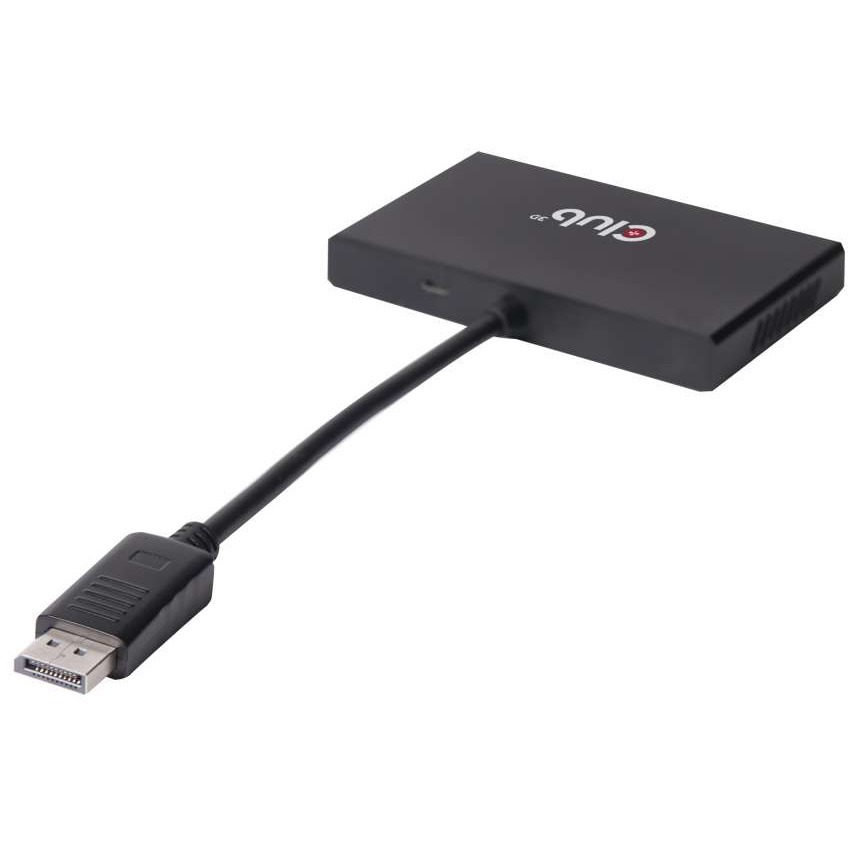

CLUB 3D CSV-6400 DP1.2 TO 4XDP1.2 MST SPLITTER USB POWER
Mfg Part Number: CSV-6400 , Item #: 2967286
, PO and Wire.
Multi Stream Transport (MST) Hub DisplayPort™ 1.2 Quad Monitor USB Powered
CSV-6400 - The Club3D SenseVision MST Hubs utilize Multi Stream Transport, a unique DisplayPort™ 1.2 feature that creates the ability to transport multiple independent uncompressed display (and audio) streams over a single cable, supporting protected content and high performance applications such as 3D gaming. This enables the use of multiple monitors connected by MST hub configuration. The Club3D MST Hubs is able to distribute those video streams to the connected screens.
The Club3D MST Hubs do not increase the bandwidth of DisplayPort™ 1.2 outputs, but it enbales the optimal use of it.
Note: When using a DisplayPort™ 1.1 video card the MST hub will act as a splitter, automatically mirroring your video source across all displays.
| General Information | |
| Manufacturer | Club 3D |
| Manufacturer Part Number | CSV-6400 |
| Manufacturer Website Address | http://www.club-3d.nl |
| Brand Name | Club 3D |
| Product Line | SenseVision |
| Product Model | CSV-6400 |
| Product Name | Multi Stream Transport (MST) Hub DisplayPort 1.2 Quad Monitor USB Powered |
| Product Type | Signal Splitter |
| Video | |
| Maximum Video Resolution | 3840 × 2160 |
| Interfaces/Ports | |
| DisplayPort | Yes |
| USB | Yes |
| Number of DisplayPort Inputs | 1 |
| Number of DisplayPort Outputs | 4 |
| Physical Characteristics | |
| Width | 4.6" |
| Depth | 0.5" |
| Length | 2.6" |
| Weight (Approximate) | 4.73 oz |
| Miscellaneous | |
| Package Contents |
|
| Country of Origin | China |
