I-Star USA TC-ISF08 iStarUSA 8 Ports Fan Sensor Board
Mfg Part Number: TC-ISF08 , Item #: 296586
Image may not reflect the actual item.
Price: $31.78
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: May 01, 2025
No Sales Tax except these states
, PO and Wire.

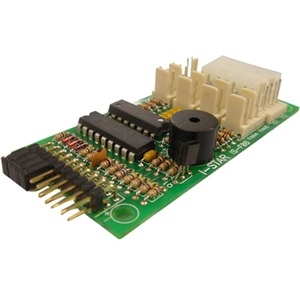

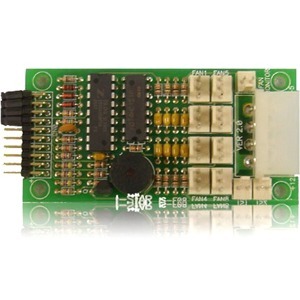

The TC-ISF08 monitoring board allows PC systems to monitor temperature at two separate locations, it derives power via one Molex connector, supports up to 8 fans. A summarized output via a 2-pin fan output line allows your motherboard or add-on card to monitor for any fan failures using just one fan monitoring port. An LED connector lets you visually monitor for temperature or fan failures. The two temperature sensors may be placed at critical points in the system. Selectable jumpers allow the thermal alarm level to be set at 50, 60, or 70 °C. An alarm reset switch lets you silence alarms until repairs can be made. TC-ISF08 is a great accessory board for any system where temperature is critical.
Main Specification
| General Information | |
| Manufacturer | iStarUSA, Inc |
| Manufacturer Part Number | TC-ISF08 |
| Manufacturer Website Address | http://www.istarusa.com |
| Brand Name | iStarUSA |
| Product Model | TC-ISF08 |
| Product Name | 8 Ports Fan Sensor Board |
| Product Type | Fan Sensor Board |
| Physical Characteristics | |
| Height | 2" |
| Width | 3" |
| Depth | 1" |
| Miscellaneous | |
| Compatibility | Chassis:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 1 Year |
Introduction
The TC-ISF08 monitoring board allows PC systems to monitor temperature at two separate locations, it derives power via one Molex connector, supports up to 8 fans. A summarized output via a 2-pin fan output line allows your motherboard or add-on card to monitor for any fan failures using just one fan monitoring port. An LED connector lets you visually monitor for temperature or fan failures. The two temperature sensors may be placed at critical points in the system. Selectable jumpers allow the thermal alarm level to be set at 50, 60, or 70 °C. An alarm reset switch lets you silence alarms until repairs can be made. TC-ISF08 is a great accessory board for any system where temperature is critical.
Specifications:| Model Number | TC-ISF08 |
| RoHS Compliance Version | Yes |
| Fan Connector | 8 x 3-pin |
| Temperature Sensor | 2 |
| Dimensions (W x D) | 3 x 2 inch |
| I/O | Status Out, Jumpers |
| Alarm | Built-in |
| Weight | 0.2 lbs |
