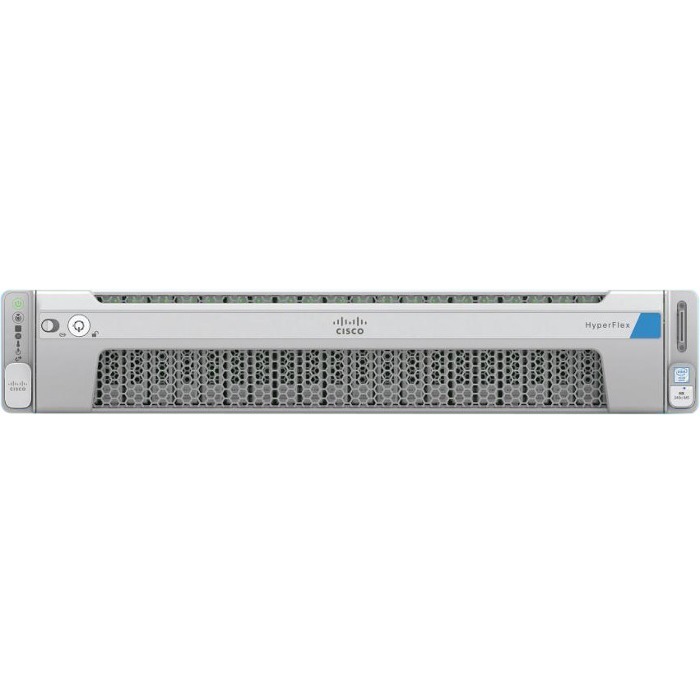

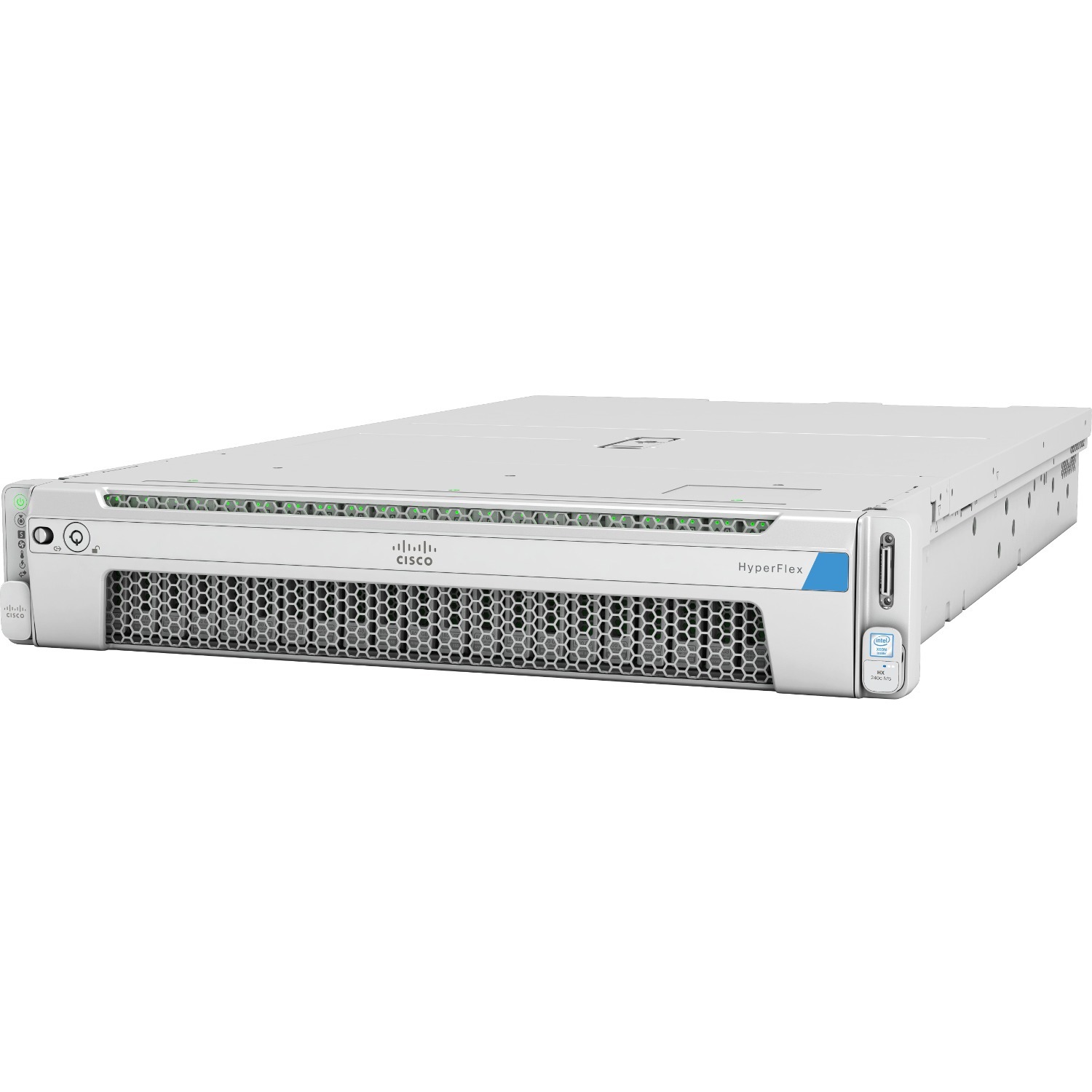

CISCO HX-SP-240M5SX-P SP HX240C HYPERFLEX SYSTEM WITH 2X6140 16X32GMEM
Mfg Part Number: HX-SP-240M5SX-P , Item #: 2958601
Image may not reflect the actual item.
Price: $23,511.59
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 07, 2025
No Sales Tax except these states
, PO and Wire.
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
The HX240C M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs, up to 128GB individual DIMM capacities and up to 3.0TB of total DRAM capacities!
The HX240C M5 servers extend the capabilities of Cisco's HyperFlex portfolio in a 2U form factor with the addition of the Intel® Xeon® Processor Scalable Family, 24 DIMM slots for 2666MHz DIMMs, up to 128GB individual DIMM capacities and up to 3.0TB of total DRAM capacities!
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HX-SP-240M5SX-P |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Series | HX240c M5 |
| Product Name | Hyperflex HX240c M5 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Gold |
| Processor Model | 6140 |
| Processor Core | Octadeca-core (18 Core) |
| Processor Speed | 2.30 GHz |
| Memory | |
| Standard Memory | 512 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 24.0 |
| Number of Occupied Memory Slots | 16 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 26 |
| Number of Internal 2.5" Bays | 26 |
| Hot Swappable Bays | Yes |
| Display & Graphics | |
| Graphics Controller Model | Pilot 4 |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Power Description | |
| Input Voltage | 230 V AC |
| Input Voltage | 120 V AC |
| Number of Power Supplies Supported | 2 |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 2U |
| Height | 3.4" |
| Width | 19" |
| Depth | 30.2" |
| Weight (Approximate) | 57.50 lb |
