MELLANOX
MELLANOX MCP1650-H001E30 1M PASSIVE COPPER CABLE IB HDR UP TO 200GB/S QSFP28 PVC WHITE PULT
Mfg Part Number: MCP1650-H001E30 , Item #: 2940422
, PO and Wire.

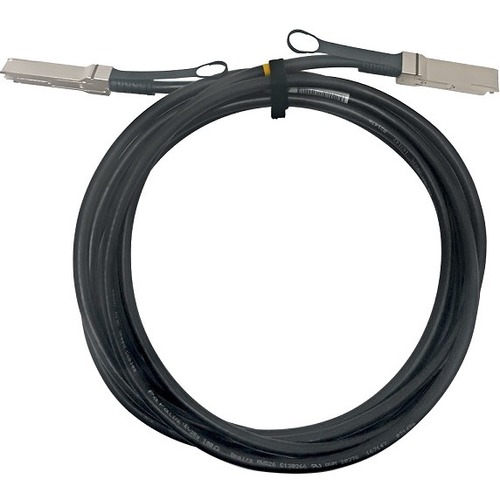

NVIDIA MCP1650-H001E30 Direct Attach Copper Cable InfiniBand HDR up to 200Gb/s QSFP56 LSZH 1m Black Pulltab 30AWG
HDR 200Gb/s QSFP56 Direct Attach Copper Cable
NVIDIA DAC cables are high speed, cost-effective alternatives to fiber optics in 200Gb/s InfiniBand HDR applications.
NVIDIA Networking QSFP56 passive copper cable contains eight high-speed copper pairs, each operating at data rates of up to 50Gb/s. Each QSFP56 port comprises an EEPROM providing product information, which can be read by the host system.
NVIDIA's unique quality passive copper cable solutions provide power-efficient connectivity for short distance interconnects. It enables higher port bandwidth, density and configurability at a low cost and reduced power requirement in the data centers.
Rigorous cable production testing ensures best out-of-the-box installation experience, performance and durability.
Highlights
- IBTA InfiniBand HDR compliant
- Up to 200Gb/s data rate
- 4x 50Gb/s PAM4 modulation
- SFF-8665 compliant
- Operating case temperature 0-70C
- Single 3.3V supply voltage
- Bit Error Rate (BER) better than 1E-15 with InfiniBand HDR systems
- Hot pluggable
- RoHS compliant
- LSZH (Low Smoke Zero Halogen) jacket
- LF (Lead Free) HF (Halogen Free) PCB
- SFF-8636 compliant I2C management interface
| General Information | |
| Manufacturer | NVIDIA Corporation |
| Manufacturer Part Number | MCP1650H001E30 |
| Manufacturer Website Address | http://www.nvidia.com |
| Brand Name | NVIDIA |
| Product Line | LinkX |
| Product Name | MCP1650-H001E30 DAC Cable IB HDR up to 200Gb/s QSFP56 1m |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | QSFP56 |
| Cable Length | 3.28 ft |
| Connector Type on First End | QSFP56 Network |
| Connector on First End Details | 1 x QSFP56 Network |
| Connector Type on Second End | QSFP56 Network |
| Connector on Second End Details | 1 x QSFP56 Network |
| Jacket Type | LSZH |
| Device Supported | Network Device |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 200 Gbit/s |
| Number of Pairs | 8 |
| Features | Halogen Free |
| Features | Passive |
| Features | Bendable |
| Features | HDR Support |
| Features | Lead-free |
| Physical Characteristics | |
| Product Color | Black |
| Color Details | Black - Pulltab |
| Product Material | Copper |
| Material Details | Copper - Cable |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Warranty | |
| Limited Warranty | 1 Year |
