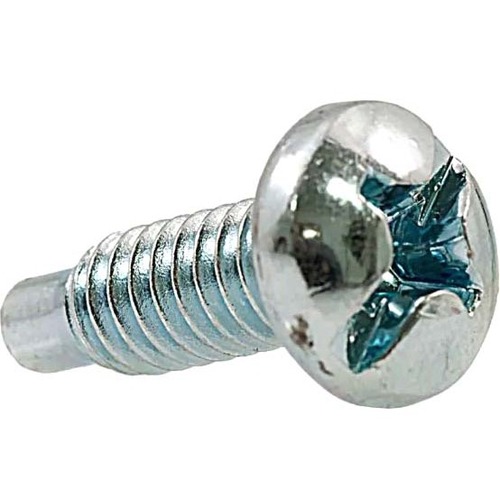

Rack Solutions SCREW-1224-500-100PK 100PK OF 12-24 1/2IN SCREWS PILOT POINT
Mfg Part Number: SCREW-1224-500-100PK , Item #: 2937121
, PO and Wire.
Rack screws are used to attach equipment to the vertical uprights of a 19" rack. Racks do not have a standard thread type. There are three common thread types for rack screws: 10-32, 12-24 and M6. Since the introduction of the square hole rack and Cage Nuts, the exact thread can be selected and changed at will. 12-24 is now more common than 10-32 in pre-threaded racks. 12-24 fasteners are slightly larger than 10-32 and have courser threads. The term 12-24 comes from Unified and American Screw Threads for Bolts, Nuts, and Machine Screws standards published by ANSI B1.1-1974. The number "12" is simply a size designator corresponding to the nominal diameter of the bolt. The number "24" refers to 24 threads per inch. You can identify a 12-24 screw by measuring the diameter with a ruler at slightly less than 7/32" (slightly larger than 3/16" or 0.210").
| General Information | |
| Manufacturer | Rack Solutions |
| Manufacturer Part Number | SCREW-1224-500-100PK |
| Manufacturer Website Address | http://www.racksolutions.com |
| Brand Name | Rack Solutions |
| Product Name | 12-24 x 1/2in Pan Head Phillip Drive Pilot Point Screw 100-Pack |
| Packaged Quantity | 100 Pack |
| Product Type | Screw |
| Product Information | |
| Fastener Type | Pan Head Screw |
| Maximum Fractional Diameter | 12" |
| Maximum Length | 0.50" |
| Head Type | Pan |
| Drive Type | Philips |
| Threads Per Inch (TPI) | 24 |
| Miscellaneous | |
| TAA Compliant | No |
