ALTRONIX

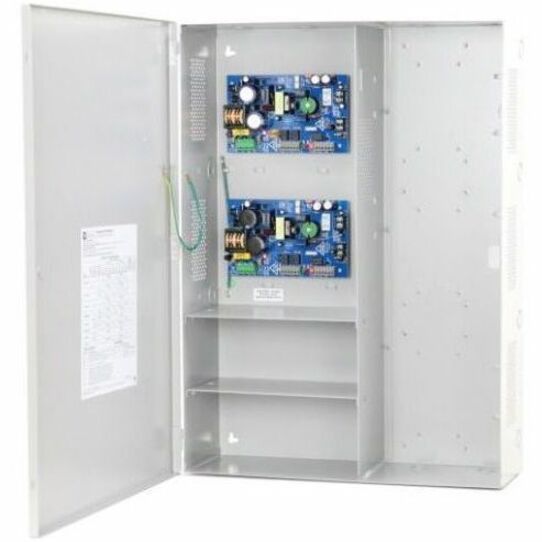

ALTRONIX MAXIMAL11FE 2 POWER SUPPLY/CHARGERS
Mfg Part Number: MAXIMAL11FE , Item #: 2923994
Image may not reflect the actual item.
Price: $853.41
+ Free Shipping
Quantity:
More to Come
Last Updated: Nov 01, 2025
No Sales Tax except these states
, PO and Wire.
Maximal Expandable Power Systems provide system designers and installers with optimum power choices and the highest levels of versatility. They provide 12VDC, 24VDC, or 12VDC and 24VDC simultaneously via two (2) single output power supply/chargers. Includes AC fail, low battery, and battery presence monitoring. Enclosure accommodates up to four (4) 12VDC/12AH batteries.
Main Specification
| General Information | |
| Manufacturer | Altronix Corporation |
| Manufacturer Part Number | MAXIMAL11FE |
| Manufacturer Website Address | http://www.altronix.com |
| Brand Name | Maximal |
| Product Series | FE |
| Product Model | MAXIMAL11FE |
| Product Name | FE MAXIMAL11FE Proprietary Power Supply |
| Product Type | Proprietary Power Supply |
| Technical Information | |
| Protection Type | Over Voltage |
| Protection Type | Short Circuit |
| Protection Type | Thermal |
| Features | LED indicator |
| Power Description | |
| Number of +12V Rails | 2 |
| Input Voltage | 120 V AC |
| Output Voltage | 24 V DC |
| Output Voltage | 12 V DC |
| Output Voltage Detail | 12 V DC @ 3.5 A |
| Output Voltage Detail | 12 V DC @ 4 A |
| Output Voltage Detail | 24 V DC @ 3 A |
| Output Voltage Detail | 24 V DC @ 3.5 A |
| Output Current | 4 A |
| Output Current | 3.50 A |
| Output Current | 3 A |
| Input Frequency | 60 Hz |
| Environmental Conditions | |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 120.2°F (49°C) |
| Physical Characteristics | |
| Form Factor | Enclosure |
| Height | 26" |
| Width | 19" |
| Depth | 6.3" |
| Weight (Approximate) | 42.30 lb |
| Miscellaneous | |
| Certifications & Standards |
|
| Country of Origin | United States |
| Warranty | |
| Limited Warranty | Lifetime |
