HANWHA TECHWIN

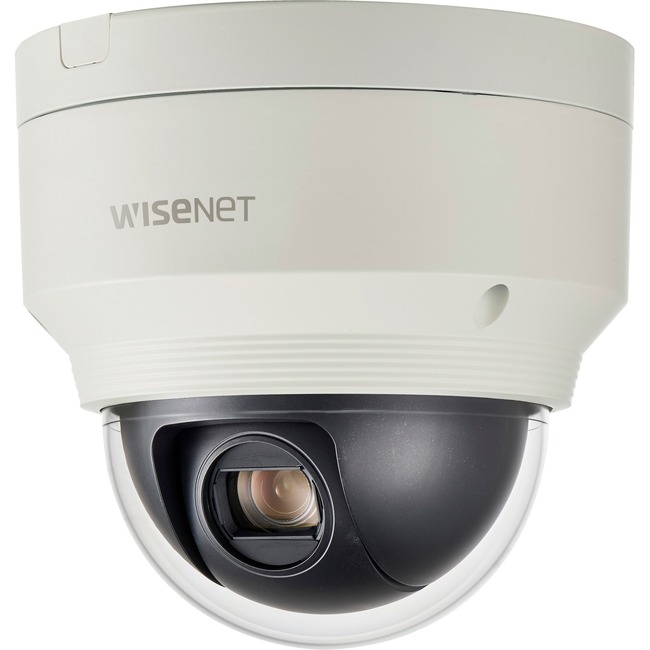

HANWHA TECHWIN XNP-6120H WiseNet X powered by WiseNet 5 network outdoor PTZ camera 2MP Full HD(1080p) @ 60fps WDR off/on(120dB) or @30fps WDR on(150dB) 12X optical zoom lens (5.2mm ~62.4mm) (54.58 ~ 5.30 ) Pan: 360 Endless. Tilt: -5 ~ 185 H.265/H.264/MJPEG
Mfg Part Number: XNP-6120H , Item #: 2921162
Image may not reflect the actual item.
Price: $1,211.01
+ Free Shipping
Quantity:
More to Come
Last Updated: Dec 17, 2025
No Sales Tax except these states
, PO and Wire.
Main Specification
| General Information | |
| Manufacturer | Hanwha Group |
| Manufacturer Part Number | XNP-6120H |
| Manufacturer Website Address | http://www.hanwha.com |
| Brand Name | Wisenet |
| Product Series | X |
| Product Model | XNP-6120H |
| Product Name | 2M Full HD 12x Network PTZ Dome Camera |
| Product Type | Network Camera |
| Technical Information | |
| Recording Formats | Full HD |
| HD Recording | Yes |
| Display & Graphics | |
| Image Sensor Type | CMOS |
| Color Supported | Color |
| Field of View | H : 54.58°(Wide) ~ 5.30°(Tele)/ V : 32.19°(Wide) ~ 3.00°(Tele) |
| Effective Camera Resolution | 2 Megapixel |
| Video | |
| Video Formats | H.265 |
| Video Formats | MJPEG |
| Video Formats | H.264 (MPEG-4 Part 10/AVC) |
| Maximum Video Resolution | 1920 x 1080 |
| Maximum Frame Rate | 60 fps |
| Analog Video Signal Format | CVBS |
| Lens | |
| Lens Type | Varifocal |
| Minimum Focal Length | 5.20 mm |
| Maximum Focal Length | 62.40 mm |
| Lens Included | Yes |
| Lens Mount Type | Board Mount |
| Minimum Aperture | f/3 |
| Maximum Aperture | f/1.6 |
| Optical Zoom | 12x |
| Exposure | |
| Shortest Shutter Speed | 1/12000 Second |
| Longest Shutter Speed | 2 Second |
| Network & Communication | |
| Connectivity Technology | Wired |
| Remote Management | Yes |
| Storage | |
| Storage Type | Memory Card |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Power Description | |
| Input Voltage | 12 V DC |
| Physical Characteristics | |
| Mount Type | Flush Mount |
| Mount Type | Pole Mount |
| Mount Type | Box Mount |
| Mount Type | Pipe Mount |
| Mount Type | Wall Mount |
| Mount Type | Ceiling Mount |
| Form Factor | Dome |
| Durability | Vandal Resistant |
| Color Family | White |
| Product Color | Ivory |
| Height | 6.4" |
| Diameter | 6.6" |
| Weight (Approximate) | 4.19 lb |
| Environmental Conditions | |
| Minimum Operating Temperature | -22°F (-30°C) |
| Maximum Operating Temperature | 131°F (55°C) |
| Maximum Operating Humidity | 90% |
| Miscellaneous | |
| Features | Automatic Defog |
| Features | 2D Digital Noise Reduction (2DNR) |
| Features | Audio Detection |
| Features | Highlight Compensation (HLC) |
| Features | 3D Digital Noise Reduction |
| Features | Privacy Masking |
| Features | Wide Dynamic Range |
| Features | Day/Night |
| Features | Motion Detection |
| Features | SD Card Local Storage |
| Features | Back Light Compensation (BLC) |
| Indoor/Outdoor | Outdoor |
| Impact Protection Rating | IK10 |
| Ingress Protection Rating | IP66 |
| NDAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
