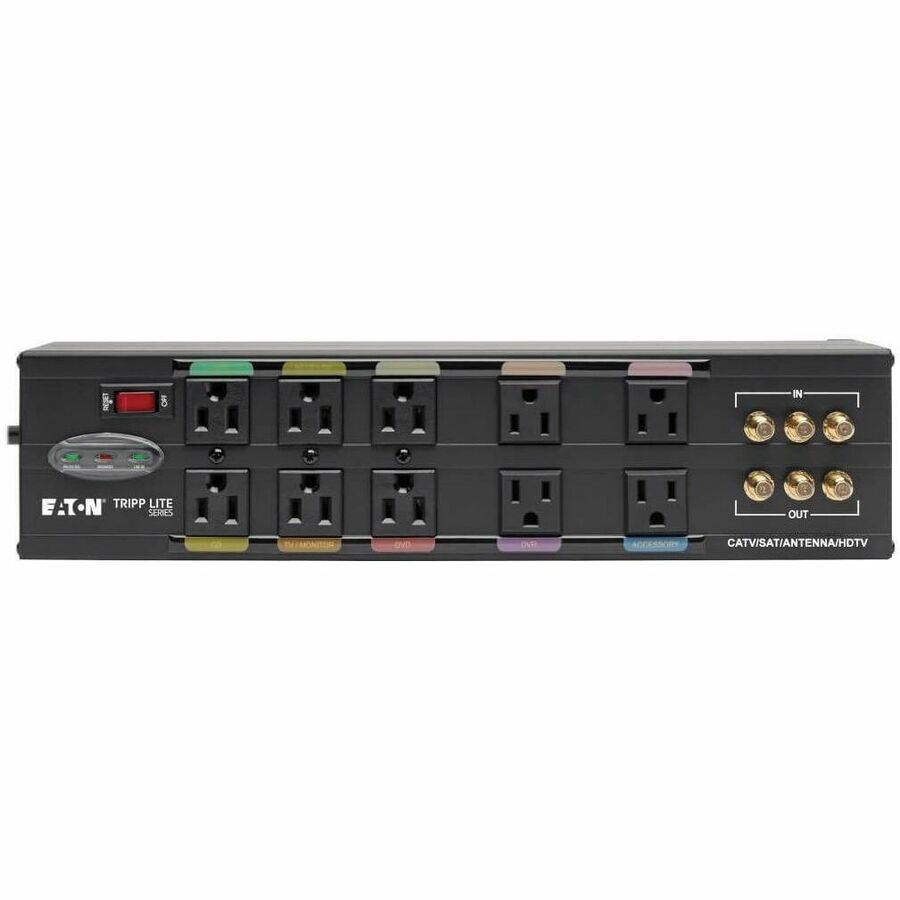

Tripp Lite's HT10DBS Isobar Home/Business Theater Surge Suppressor provides premium protection--3840 joules--stopping damaging surges and filtering disruptive line noise so components perform at their peak! You can see and hear the difference: sharper, crisper video; deeper, fuller audio and longer component life spans. Perfect for medium-to-large home/business theater installations: high-definition TVs, PVRs, satellite and A/V receivers, subwoofers, DVD/CD players and more. Exclusive Isolated Filter Banks eliminate noise interference between components. 10 outlets (with transformer spacing and plug-in safety covers), 3-line coaxial protection, 1-line tel/modem protection and 1-line network (100BaseT, high-speed) protection safeguard an entire home/business theater system. $500,000 Ultimate Lifetime Insurance coverage (USA and Canada only). Includes all-metal housing, color-coordinated outlet/plug labels, three diagnostic LEDs, 8-ft. cord with a right-angle plug, 6-ft. gold coax cable, 6-ft. phone cord and 6-ft. network cable.
More from the Manufacturer
Main Specification
| General Information |
| Manufacturer |
Eaton Corporation |
| Manufacturer Part Number |
HT10DBS |
| Manufacturer Website Address |
http://www.eaton.com |
| Brand Name |
Tripp Lite by Eaton |
| Product Name |
Isobar Home/Business Theater Surge Suppressor |
| Product Type |
Surge Suppressor/Protector |
| Technical Information |

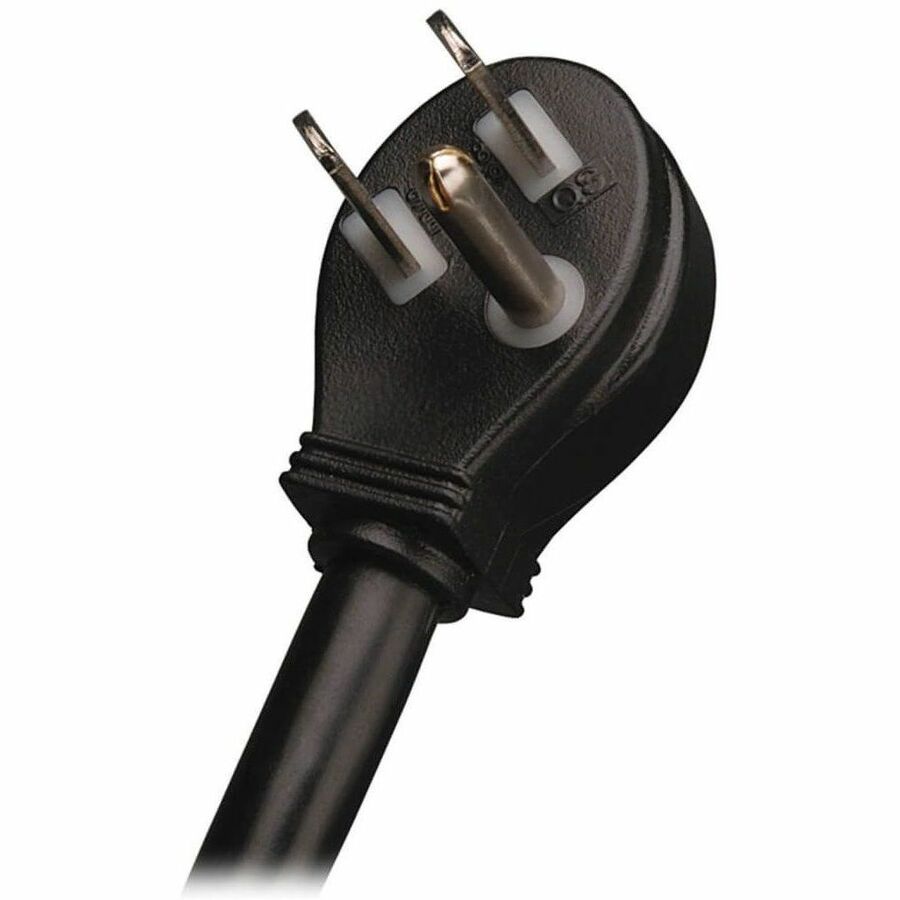

| Plug/Connector Type |
NEMA 5-15P |
| Receptacles |
10 x NEMA 5-15R |
| Protection Type |
Surge |
| Power Description |
| Input Voltage |
120 V AC |
| Output Voltage |
120 V AC |
| Power Handling |
1440 VA |
| Surge Energy Rating |
3840 J |
| Controls/Indicators |
| Status Indicators |
Line Power Protected Grounded |
| Physical Characteristics |
| Color Family |
Black |
| Product Color |
Black |
| Power Cord/Cable Length |
8 ft |
| Height |
14.3" |
| Width |
2.3" |
| Depth |
3.5" |
| Weight (Approximate) |
3.50 lb |
| Miscellaneous |
| Package Contents |
- Isobar Home/Business Theater Surge Suppressor
- HT10DBS Home/Business Theater Surge Suppressor
- 6-ft. DSS cable
- 6-ft. phone cord
- 6-ft. network cable
- Instruction manual with warranty information
|
| Additional Information |
- Isolated Filter Banks eliminate interference between connected components
- All-metal housing safely withstands the strongest surges
- Widely-spaced outlets accommodate up to 6 transformers
- Four plug-in safety covers protect against accidental contact with unused outlets

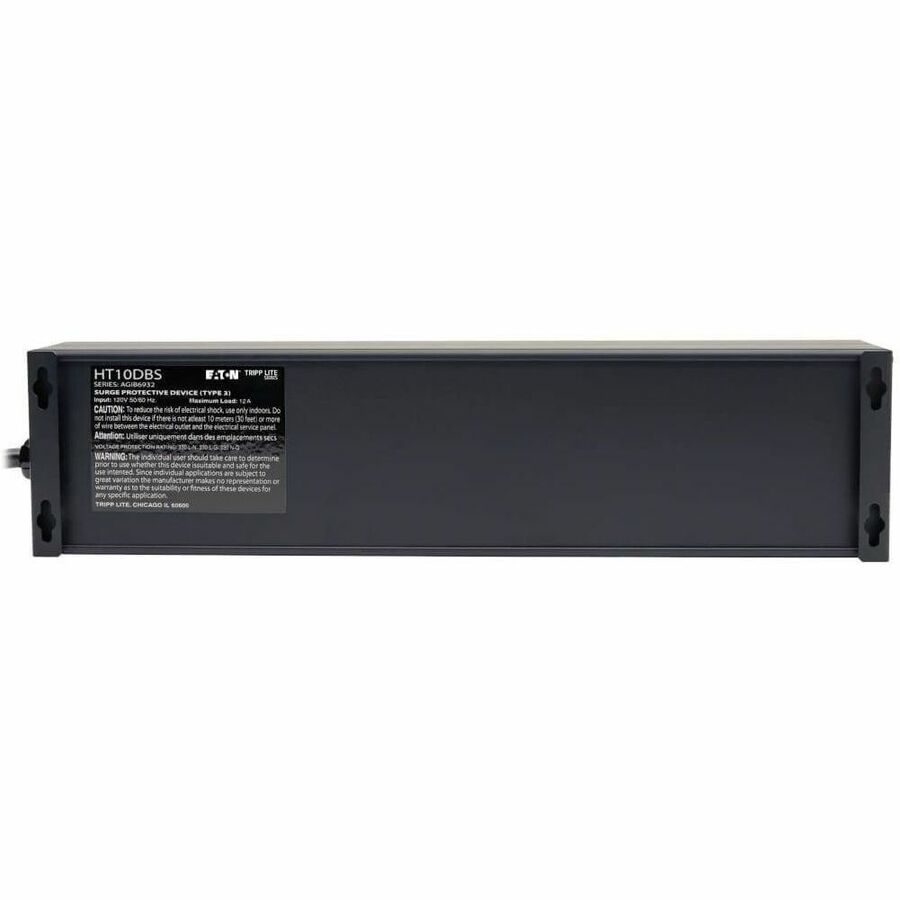

- Keyhole slots provide convenient wall or cabinet mounting
- Color-coordinated outlet/plug labels
- Input cord:
|
| Compatibility |
- Perfect for medium-to-large home/business theater installations: high-definition TVs, PVRs, satellite and A/V receivers, subwoofers, DVD/CD players and more
|
| Certifications & Standards |
- CSA
- AC Suppression: UL1449 (let through rating 330V)
- Power Tap: UL1363
- Exceeds IEEE 587 category A&B specifications
- Communications:
|
| Country of Origin |
China |
| Warranty |
| Limited Warranty |
Lifetime |
| General Information |
| Product |
-
|
| Number of Outlets |
-
|
| Surge Energy Rating |
-
|
| Data Line Protection |
-
|
| Cord Length |
-
|
| Mounting Style |
-
|
| Output Voltage |
-
|
| Current Rating |
-
|
|
| Manufacturer |
Tripp Lite |
| Manufacturer Part Number |
HT10DBS |
| Manufacturer Website Address |
www.tripplite.com |
| Product Line |
Included |
| Product Series |
Isobar |
| Product Name |
Isobar Home/Business Theater Surge Suppressor |
| Marketing Information |
HT10DBS Isobar Home/Business Theater Surge Suppressor provides
premium protection, 3570 joules energy rating, stopping damaging surges
and filtering disruptive line noise so components perform at their
peak! You can see and hear the difference: sharper, crisper video;
deeper, fuller audio and longer component life spans.
|
|
| Plug/Connector Type |
NEMA 5-15P |
| Receptacles |
10 x NEMA 5-15R |

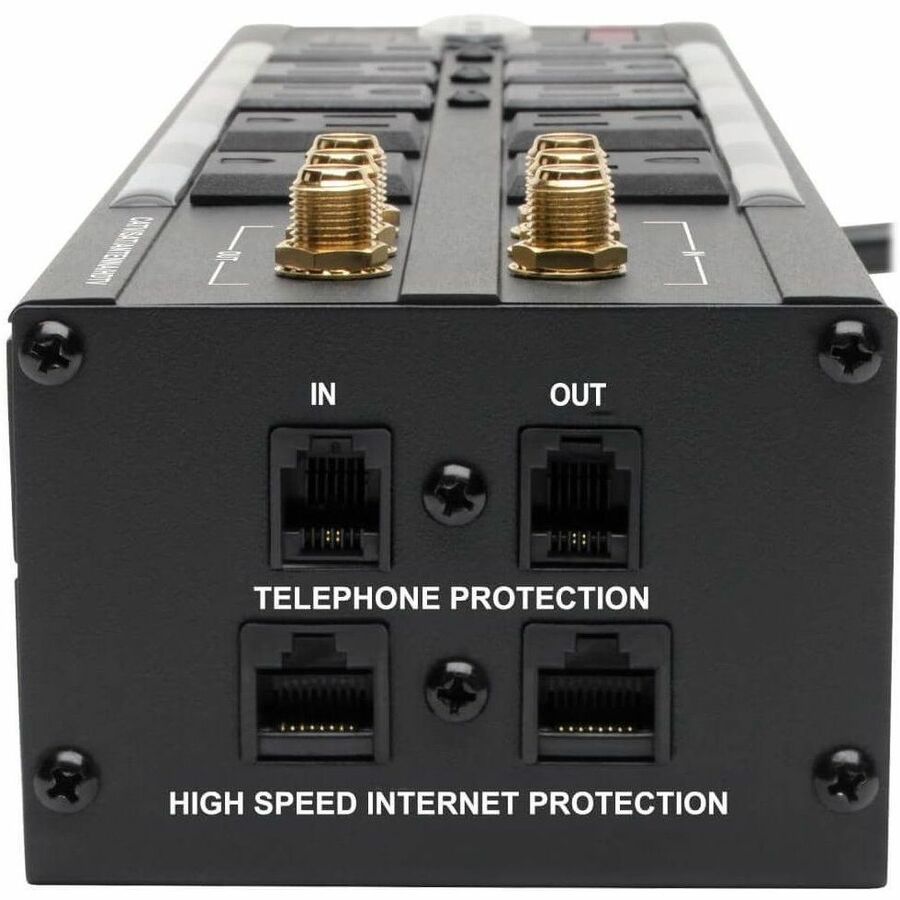

| Dataline Protection |
RJ-11 Phone/Modem
RJ-45 10/100Base-T Ethernet
Type F Connector Coaxial Cable Line
|
| Protection Types |
Includes full normal mode (H-N) and common mode (N-G / H-G)
line surge suppression
|
|
| Input Voltage |
120 V AC |
| Output Voltage |
120 V AC |
| Current |
Included |
| Frequency |
50 Hzor 60 Hz |
| Power Handling |
1440W |
| Surge Energy Rating |
3570J |
| Filtering |
EMI/RFI filtering Up to 60 dB |
| Power Switch |
Lighted Circuit Breaker Switch |
|
| Status Indicators |
Line Power
Protected
Grounded
|
|
| Power Cord/Cable |
8 ft |
| Color |
Black |
| Dimensions |
14.25" Height x 2.25" Width x 3.5" Depth |
| Shipping Dimensions |
16" Height x 9" Width x 3" Depth |
| Weight |
3.5 lb |
| Shipping Weight |
4 lb |
|
| Package Contents |
HT10DBS Home/Business Theater Surge Suppressor
6 ft. DSS cable
6 ft. phone cord
6 ft. network cable
Instruction manual with warranty information
|
| Additional Information |
Isolated Filter Banks eliminate interference between
connected components
All-metal housing safely withstands the strongest surges
Widely-spaced outlets accommodate up to 6 transformers
Four plug-in safety covers protect against accidental contact
with unused outlets
Keyhole slots provide convenient wall or cabinet mounting
Color-coordinated outlet/plug labels
Input cord:
|
| Compatibility |
Perfect for medium-to-large home/business theater
installations: high-definition TVs, PVRs, satellite and A/V receivers,
subwoofers, DVD/CD players and more
|
| Certifications & Standards |
CSA
AC Suppression: UL1449 (let through rating 330V)
Power Tap: UL1363
Exceeds IEEE 587 category A&B specifications
Communications:
|
|
| Standard Warranty |
Lifetime |
