HANWHA TECHWIN

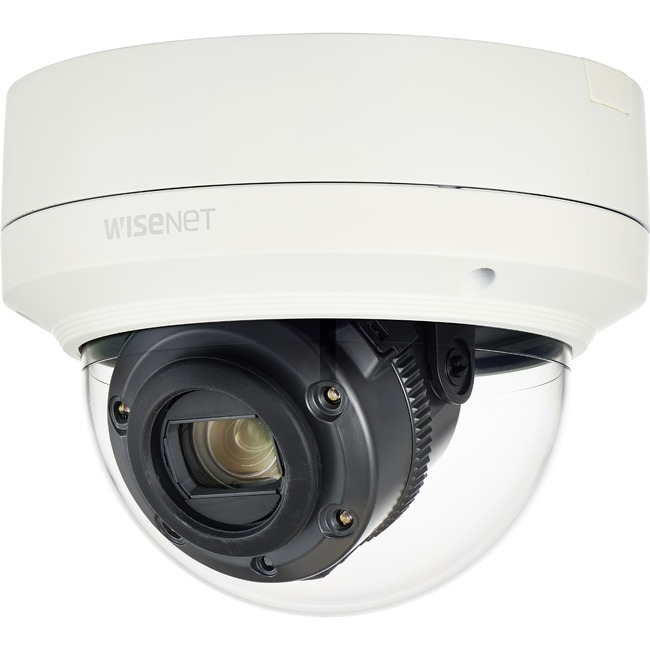

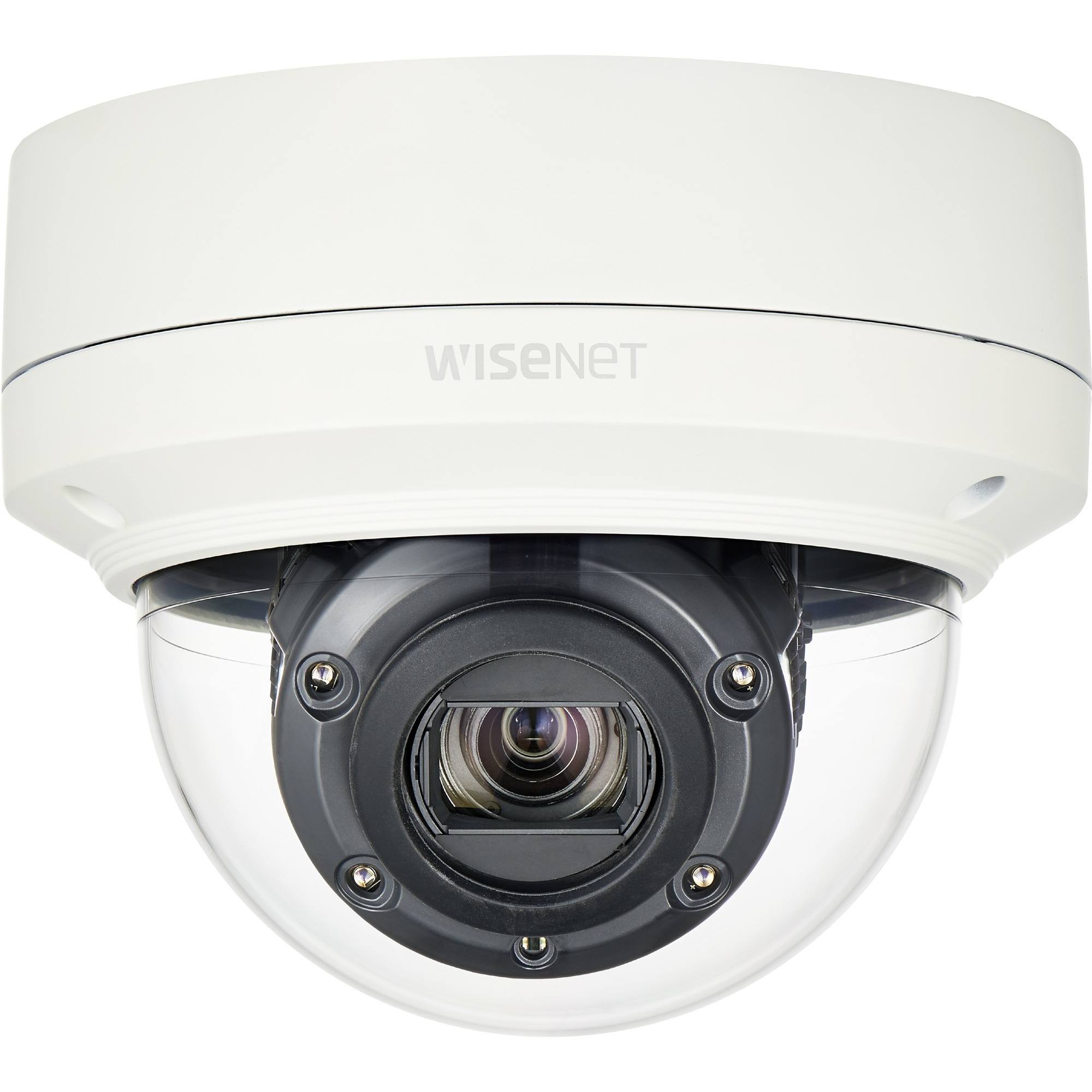

HANWHA TECHWIN XNV-6120R WiseNet X powered by WiseNet 5 network IR outdoor vandal dome camera 2MP Full HD(1080p) @60fps WDR off/on(120dB) or @30fps WDR on(150dB) 12X optical zoom lens (5.2mm ~62.4mm) (54.58 ~ 5.30 ) H.265/H.264/MJPEG WiseStream II compression technology

Mfg Part Number:  XNV-6120R
Image may not reflect the actual item.
Price: $1,104.04 + Free Shipping
Quantity:
More to Come
Last Updated: Mar 25, 2026
No Sales Tax except these states
, PO and Wire.
Main Specification
General Information
Manufacturer Hanwha Group
Manufacturer Part Number XNV-6120R
Manufacturer Website Address http://www.hanwha.com
Brand Name Wisenet
Product Series X
Product Model XNV-6120R
Product Name 2MP Outdoor Network IR 12X Optical Zoom Dome Camera
Product Type Network Camera
Technical Information
Recording Formats Full HD
HD Recording Yes
Night Vision Yes
Night Vision Distance 229.66 ft
Night Vision Type Infrared
Display & Graphics
Image Sensor Type CMOS
Color Supported Color
Field of View H : 54.58°(Wide) ~ 5.30°(Tele)/ V : 32.19°(Wide) ~ 3.00°(Tele)/ D : 61.40°(Wide) ~ 6.06°(Tele)
Effective Camera Resolution 2 Megapixel
Video
Video Formats MJPEG
Video Formats H.265
Video Formats H.264 (MPEG-4 Part 10/AVC)
Maximum Video Resolution 1920 x 1080
Maximum Frame Rate 60 fps
Analog Video Signal Format CVBS
Lens
Lens Type Varifocal
Minimum Focal Length 5.20 mm
Maximum Focal Length 62.40 mm
Lens Included Yes
Lens Mount Type Board Mount
Minimum Aperture f/3
Maximum Aperture f/1.6
Optical Zoom 12x
Exposure
Shortest Shutter Speed 1/12000 Second
Longest Shutter Speed 2 Second
Network & Communication
Connectivity Technology Wired
Remote Management Yes
Storage
Storage Type Memory Card
Interfaces/Ports
Network (RJ-45) Yes
Power Description
Input Voltage 24 V AC
Input Voltage 12 V DC
Physical Characteristics
Mount Type Ceiling Mount
Mount Type Pipe Mount
Mount Type Flush Mount
Mount Type Pole Mount
Mount Type Wall Mount
Mount Type Box Mount
Form Factor Dome
Durability Vandal Resistant
Color Family White
Product Color Ivory
Height 5.1"
Diameter 6.3"
Weight (Approximate) 2.19 lb
Environmental Conditions
Minimum Operating Temperature -40°F (-40°C)
Maximum Operating Temperature 131°F (55°C)
Maximum Operating Humidity 90%
Miscellaneous
Features Automatic Defog
Features 2D Digital Noise Reduction (2DNR)
Features Face Detection
Features Audio Compression
Features Audio Detection
Features Highlight Compensation (HLC)
Features 3D Digital Noise Reduction
Features Privacy Masking
Features Automatic White Balance
Features Alarm Triggering
Features Wide Dynamic Range
Features Digital Image Stabilization
Features Day/Night
Features Motion Detection
Features SD Card Local Storage
Features Back Light Compensation (BLC)
Features Auto Gain Control
Indoor/Outdoor Outdoor
Impact Protection Rating IK10
Ingress Protection Rating IP66
Ingress Protection Rating IP67
NDAA Compliant Yes
Warranty
Limited Warranty 3 Year
