AXIOM

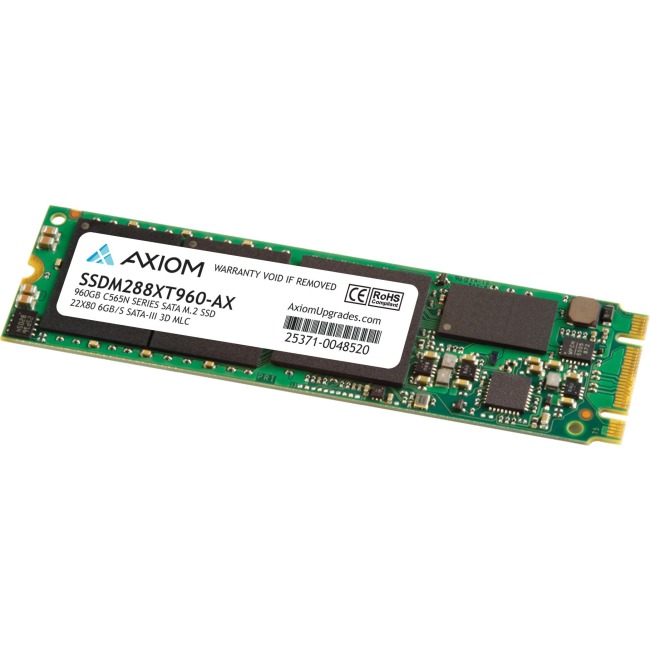

AXIOM SSDM288XT960-AX 960GB SSD C565N SERIES SATA M.2 22X80 6GB/S SATA-III 3D MLC

Mfg Part Number:  SSDM288XT960-AX
Image may not reflect the actual item.
Price: $101.22 + Free Shipping
Quantity:
In Stock: 9
Last Updated: May 18, 2025
No Sales Tax except these states
, PO and Wire.

The Axiom C565n Series M.2 SSD combines performance and reliability with low power operation to make the ideal mobile drive. The high read and write performance will satisfy the most demanding power user. While the low power mode extends battery life for the road warrior.

Providing an industry-leading bandwidth of more than 565MB/sec transfers, the Axiom C565n Series M.2 SSD can approach the limits of the SATA 6Gb/s interface on large transfers. Performance reaches enterprise class standards with up to 86,000 IOPS.

A robust LDPC algorithm and StaticDataRefresh technology protect the data. Efficient bad block management and reduced write amplification further bolster endurance. Drive health is monitored using an SSD-specific set of S.M.A.R.T. attributes. The combination of these techniques provides data protection unrivaled in the storage industry.

Main Specification
General Information
Manufacturer Axiom Memory Solutions
Manufacturer Part Number SSDM288XT960-AX
Manufacturer Website Address http://www.axiommemory.com
Brand Name Axiom
Product Series C565n
Product Name C565n Series M.2 SSD
Product Type Solid State Drive
Technical Information
Storage Capacity 960 GB
Drive Performance
Maximum Read Transfer Rate 565 MB/s
Maximum Write Transfer Rate 525 MB/s
Network & Communication
Wireless LAN No
Interfaces/Ports
Drive Interface SATA
Drive Interface Standard SATA/600
Power Description
Operating Power Consumption 2.10 W
Physical Characteristics
Drive Type Internal
Form Factor M.2 2280
Width 0.9"
Depth 3.1"
Weight (Approximate) 1.41 oz
Miscellaneous
Compatibility
  • ASUS - VivoMini UN65H
  • Acer - Veriton N Series N4640G Mini
  • Dell - Inspiron 13 5000 (5368)
  • Dell - Inspiron 13 5000 (5370)
  • Dell - Inspiron 13 5000 (5378)
  • Dell - Inspiron 13 7000 (7368)
  • Dell - Inspiron 13 7000 (7378)
  • Dell - Latitude 12 (5280)
  • Dell - Latitude 12 (5289) 2-in-1
  • Dell - Latitude 12 (7280)
  • Dell - Latitude 12 7000 (E7270)
  • Dell - Latitude 13 (7350)
  • Dell - Latitude 13 (7370)
  • Dell - Latitude 13 (7380)
  • Dell - Latitude 14 (5480)
  • Dell - Latitude 14 (5490)
  • Dell - Latitude 14 (7490)
  • Dell - Latitude 14 5000 (E5470) with 1 SODIMM
  • Dell - Latitude 14 5000 (E5470) with 2 SODIMMsDell - Latitude 14 7000 (E7470)
  • Dell - Latitude 14 7000 Series (7480)
  • Dell - Latitude 15 (5580)
  • Dell - Latitude 15 (5590)
  • Dell - Latitude 15 (5591)
  • Dell - Latitude 15 5000 (E5570)
  • Dell - Latitude 3490
  • Dell - Latitude 3590
  • Dell - Latitude 5290
  • Dell - Latitude 7389 (2-in-1)
  • Dell - Latitude 7390
  • Dell - OptiPlex 7040 MT
  • Dell - OptiPlex 7040 Micro
  • Dell - OptiPlex 7040 SFF
  • Dell - OptiPlex 7050 SFF / Tower
  • Dell - OptiPlex 7060 Micro
  • Dell - OptiPlex 7060 Small Form Factor (SFF) / Tower
  • Dell - OptiPlex 7440 AIO
  • Dell - OptiPlex 7450 All-in-One Desktop
  • Dell - Precision 15 3000 Series (3510)
  • Dell - Precision 15 7000 Series (7510)
  • Dell - Precision 3520
  • Dell - Precision 7710
  • Dell - XPS 13 (9370)
  • HP-Compaq - 250 G5 (Core i3-5005U, DDR3)
  • HP-Compaq - 250 G5 (Pentium N3710/Celeron N3010, DDR3)
  • HP-Compaq - 250 G5 (i3-6100U/i5-6200U/i7-6500U, DDR4)
https://www.axiomupgrades.com/productdetail/SSDM288XT120-AX/
Device Supported Desktop PC
Device Supported Motherboard
TAA Compliant Yes
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty 3 Year
