B+B SmartWorx/Advantech

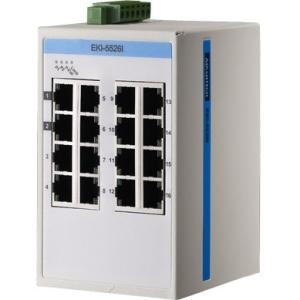

B+B SmartWorx/Advantech EKI-5526I-AE 16PORT 10/100MBP LITE-MANAGED ETHERNET SWITCH -40-75C
Mfg Part Number: EKI-5526I-AE , Item #: 2906487
, PO and Wire.
The EKI-5526/I are the world's first convergence switches for process control and IT networking management. This series uses Modbus/TCP to communicate with the SCADA software and SNMP to communicate with the NMS (Networking Management System) at the same time, thereby allowing full read control over the devices either for control engineers or for IT. The devices come with the Port-based QoS for deterministic data transmission allows the priority ports to prioritize the traffic coming over those ports and delay the less immediately necessary data over the remaining ports. EKI-5526/I switches use the highest quality components, to enable the range to operate in temperatures of between -40 and 75°C along with EMS Level 3 protection to repel electromagnetic interface for industrial resistance.
| General Information | |
| Manufacturer | Advantech Co., Ltd |
| Manufacturer Part Number | EKI-5526I-AE |
| Manufacturer Website Address | http://www.advantech.com |
| Brand Name | Advantech |
| Product Model | EKI-5526 |
| Product Name | 16FE Unmanaged Ethernet Switch, ATEX/C1D2/IECEx, -40~75? |
| Packaged Quantity | 1 |
| Product Type | Ethernet Switch |
| Interfaces/Ports | |
| Total Number of Network Ports | 16 |
| Uplink Port | No |
| Modular | No |
| Stack Port | No |
| Port/Expansion Slot Details | 16 x Fast Ethernet Network |
| Media & Performance | |
| Media Type Supported | Twisted Pair |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 10/100Base-TX |
| Network & Communication | |
| Layer Supported | 2 |
| Management & Protocols | |
| Manageable | No |
| Physical Characteristics | |
| Form Factor | DIN Rail Mountable |
| Form Factor | Wall Mountable |
| Height | 4.7" |
| Width | 2.9" |
| Depth | 3.3" |
| Weight (Approximate) | 1.54 lb |
| Miscellaneous | |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Warranty | |
| Limited Warranty | 5 Year |
