MINUTEMAN
MINUTEMAN ED3000RTXL2UNC ED3000RTXL2U W/SNMP CARD
Mfg Part Number: ED3000RTXL2UNC , Item #: 2904574
, PO and Wire.

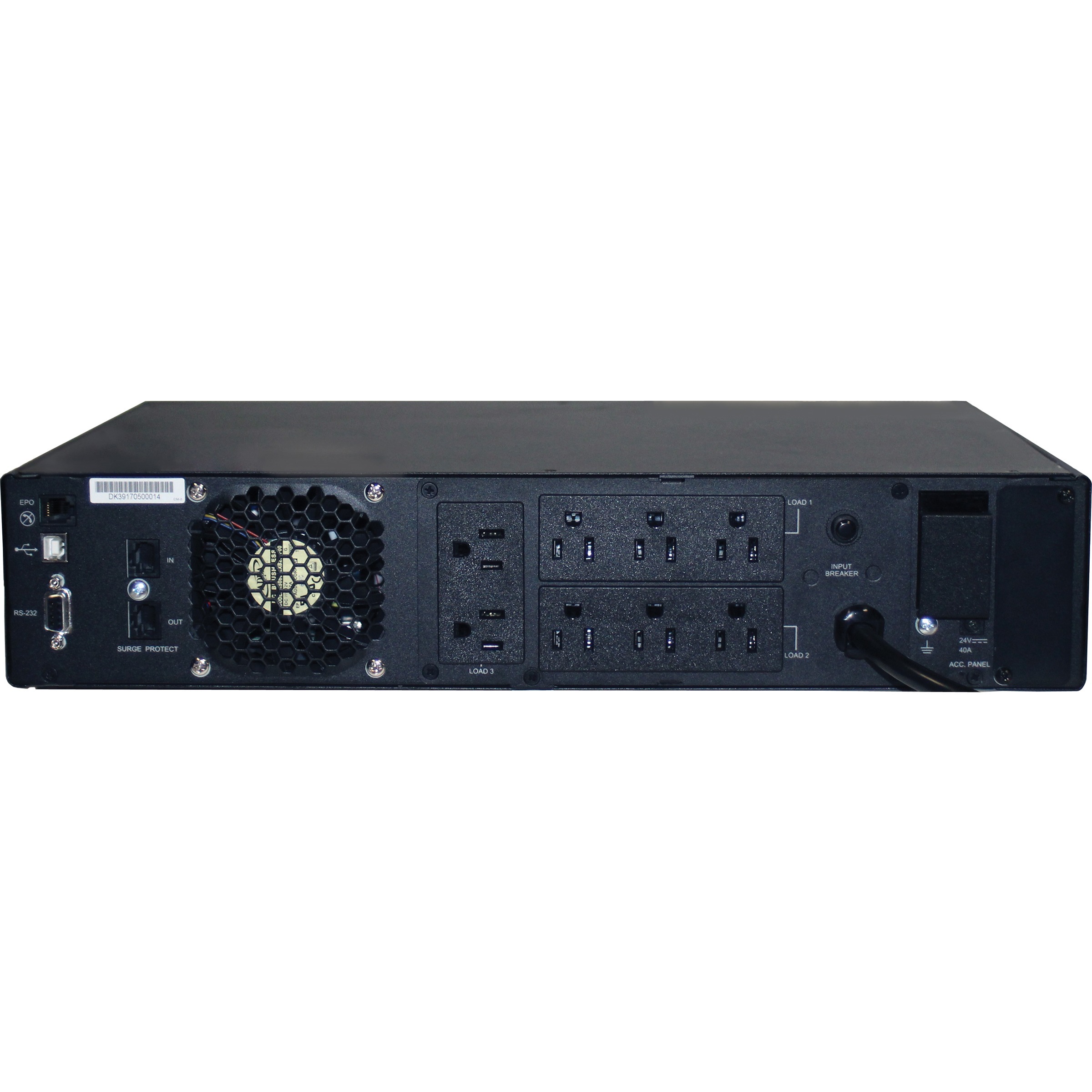

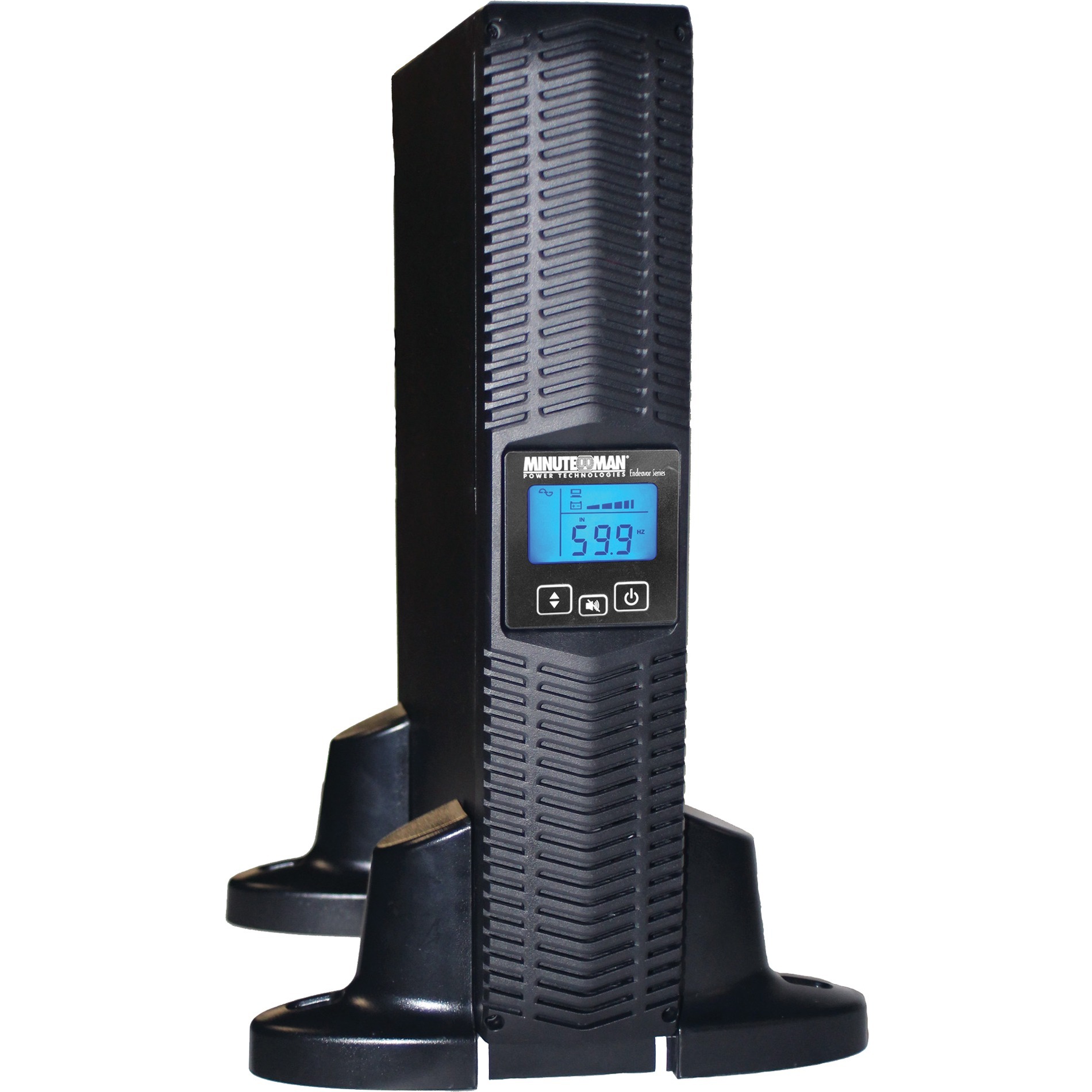

Endeavor® LCD On-line Uninterruptible Power Supply
In today's 24/7, "always on" business world, downtime is a not an option. Minuteman's Endeavor LCD Series products are engineered to provide the best features that demanding users require for supporting critical applications, while also offering unmatched reliability in a true on-line UPS. This premium-level product provides a sinewave output and is backed with the industry's first comprehensive 5-year warranty, including parts, labor and batteries.
The Endeavor LCD Series delivers continuous power conditioning through Minuteman's double conversion on-line technology, providing emergency backup power with zero transfer time. For extended runtime applications, these products allow the connection of optional external battery packs for long backup times required in certain applications, along with being generator friendly.
The Endeavor LCD Series is designed to protect servers, data storage, switches, and routers used in data centers or network closets, DAS and small cell systems, light industrial applications, telecom and VOIP systems, plus security systems.
Offering premium protection that meets critical application needs, users can confidently rely on Minuteman's Endeavor LCD Series to provide complete power protection when reliability really matters.
| General Information | |
| Manufacturer | Para Systems, Inc |
| Manufacturer Part Number | ED3000RTXL2UNC |
| Manufacturer Website Address | http://www.minutemanups.com |
| Brand Name | Minuteman |
| Product Line | Endeavor |
| Product Model | ED3000RTXL2UNC |
| Product Name | Endeavor ED3000RTXL2UNC 3000VA Tower/Rack/Wall Mountable UPS |
| Product Type | Double Conversion Online UPS |
| Technical Information | |
| Plug/Connector Type | NEMA L5-30P |
| Receptacle Type | NEMA L5-30R |
| Receptacle Type | NEMA 5-15/20R |
| Receptacle Detail | 1 x NEMA L5-30R |
| Receptacle Detail | 7 x NEMA 5-15/20R |
| Application/Usage | Security System |
| Application/Usage | Network Closet |
| Application/Usage | Network |
| Application/Usage | VoIP Phone System |
| Power Description | |
| Load Capacity (VA) | 3000 VA |
| Load Capacity (Watt) | 2700 W |
| Input Voltage | 120 V AC |
| Input Voltage Range | 0 V AC - 160 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Battery Information | |
| Backup/Run Time (Full Load) | 3.50 Minute |
| Hot Swappable | Yes |
| Physical Characteristics | |
| Height | 3.5" |
| Width | 19" |
| Rack Height | 2U |
| Form Factor | Tower/Rack/Wall Mountable |
| Weight (Approximate) | 70.50 lb |
| Miscellaneous | |
| Package Contents |
|
| Certifications & Standards | |
| Energy Star | Yes |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 2 |
| Warranty | |
| Limited Warranty | 5 Year |
