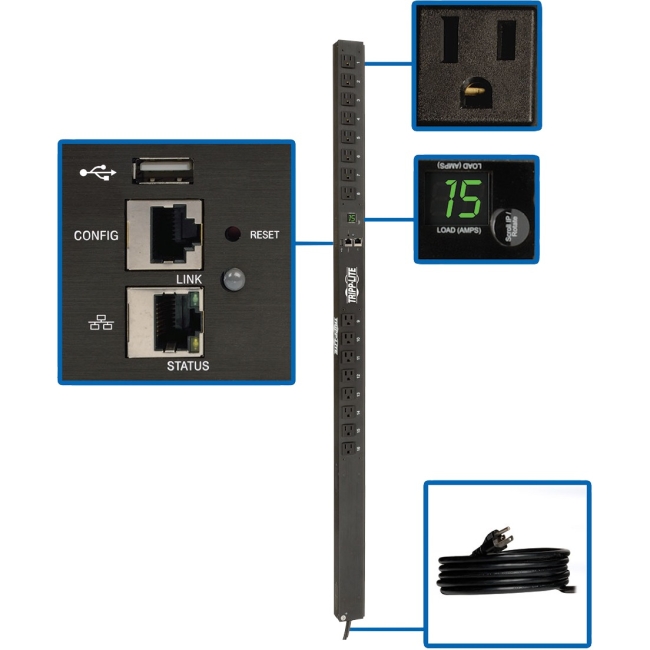

TRIPP LITE PDUMNV15LX PDU MONITORED 1.4KW 16 5-15R 120V LX PLATFORM INTERFACE 0URM TAA

The PDUMNV15LX 1.4kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network interface. Recommended for any IT or industrial application, it features 16 NEMA 5-15R outlets with included cord retention brackets to prevent cables from becoming accidentally disconnected. A 10-foot cord with NEMA 5-15P plug connects the PDU to a compatible AC power source, generator or protected UPS.

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

A digital ammeter allows you to monitor the PDU's current level in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.

More from the Manufacturer

General Information
Manufacturer	Eaton Corporation
Manufacturer Part Number	PDUMNV15LX
Manufacturer Website Address	https://tripplite.eaton.com/
Brand Name	Tripp Lite by Eaton
Product Model	PDUMNV15LX
Product Name	PDUMNV15LX 16-Outlet PDU
Product Type	PDU
Technical Information
PDU Type	Monitored
Phase	Single Phase
Plug/Connector Type	NEMA 5-15P
Receptacle Type	NEMA 5-15R
Receptacle Detail	16 x NEMA 5-15R
Power Description
Input Voltage	120 V AC
Input Voltage Range	100 V AC - 127 V AC
Output Voltage	120 V AC
Power Rating (Watt)	1520 W
Input Current	15 A
Management
Management	Protocols: HTTP HTTPS SMTP SNMPv1 SNMPv2 SNMPv3 telnet SSH FTP DHCP NTP
Physical Characteristics
Mounting Orientation	Vertical
Mount Type	Rack-mountable
Rack Height	0U
Height	49"
Width	2.2"
Depth	1.8"
Weight (Approximate)	7 lb
Miscellaneous
Package Contents	PDUMNV15LX 16-Outlet PDU Built-in LX Platform Interface Configuration Cable 16 x Cable Ties 2 x Cord Retention Brackets Rack-mounting Hardware Mounting Bracket Accessory Owner's Manual
Country of Origin	Taiwan
TAA Compliant	Yes
Environmentally Friendly	Yes
Environmental Compliance	Restriction of Hazardous Substances (RoHS)
Warranty
Limited Warranty	2 Year
