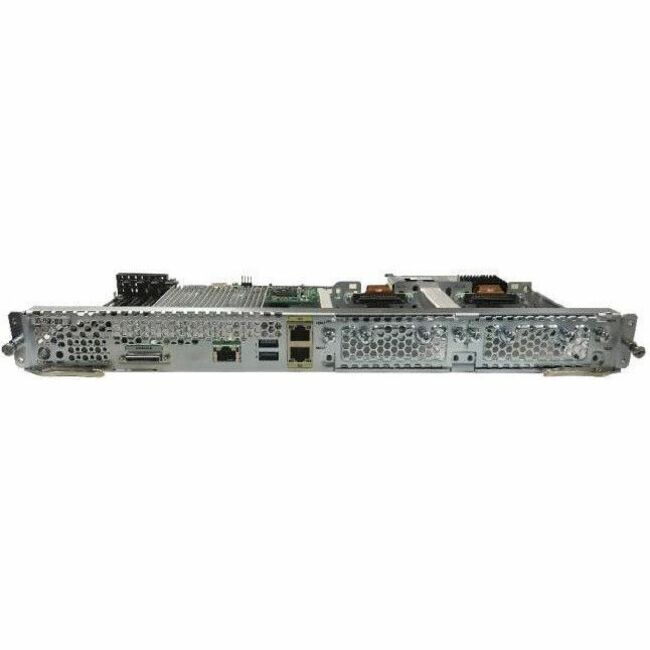

CISCO UCS-E180D-M3/K9 UCS-E DOUBLEWIDE 8C X/1.8 CPU 4 HD
Mfg Part Number: UCS-E180D-M3/K9 , Item #: 2897664
, PO and Wire.
Cisco UCS E-Series Servers
The Cisco Unified Computing System™ (Cisco UCS) E-series M3 Server is available in two flavors: as singlewide and as doublewide module. The singlewide version occupies a single service-module slot in the Cisco 4000 Series ISR as shown above. The doublewide module occupies two service-module slots sideby-side.
All Cisco UCS E-Series M3 Servers are high-density blade servers with single-socket Intel Xeon-D processors. They balance simplicity, performance, and application density while operating in an energyefficient environment providing better energy efficiency than preceding models. The servers also include integrated remote lights-out management.
They thus provide an excellent platform for introducing virtualization into the branch office and supporting mission-critical business applications. The innovative, zero-footprint form factor of the Cisco UCS E-Series Servers in conjunction with the lower total cost of ownership (TCO) of the Intel Xeon processor increases business agility and enhances reliability when compared to standalone rack-mount and tower servers.
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCSE180DM3K9 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | E |
| Product Model | E180D M3 |
| Product Name | UCS E180D M3 Server |
| Product Type | Server Barebone System |
| Processor | |
| Number of Processors Supported | 1 |
| Number of Processors Installed | 1 |
| Processor Socket | Socket BGA-1667 |
| Processor Type | Xeon |
| Processor Model | D-1548 |
| Processor Core | Octa-core (8 Core) |
| Processor Speed | 2 GHz |
| Maximum Turbo Speed | 2.60 GHz |
| 64-bit Processing | Yes |
| Chipset | |
| Chipset Manufacturer | Intel |
| Memory | |
| Maximum Memory Supported | 128 GB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 4 |
| Storage | |
| Supported Storage Drive Interfaces | SAS |
| Supported Storage Drive Types | HDD |
| Supported Storage Drive Types | SSD |
| Controllers | |
| Controller Type | Serial Attached SCSI (SAS) |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 5, 10 |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| I/O Expansions | |
| Number of Total Expansion Bays | 4 |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Physical Characteristics | |
| Form Factor | Blade |
| Height | 1.6" |
| Width | 16.2" |
| Depth | 7.5" |
| Weight (Approximate) | 7.05 lb |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 90 Day |
