CISCO
CISCO UCS-SP-B200M5-C2 UCS B200M5 ADV1 2X6148 12X32GB VIC1348
Mfg Part Number: UCS-SP-B200M5-C2 , Item #: 2893032

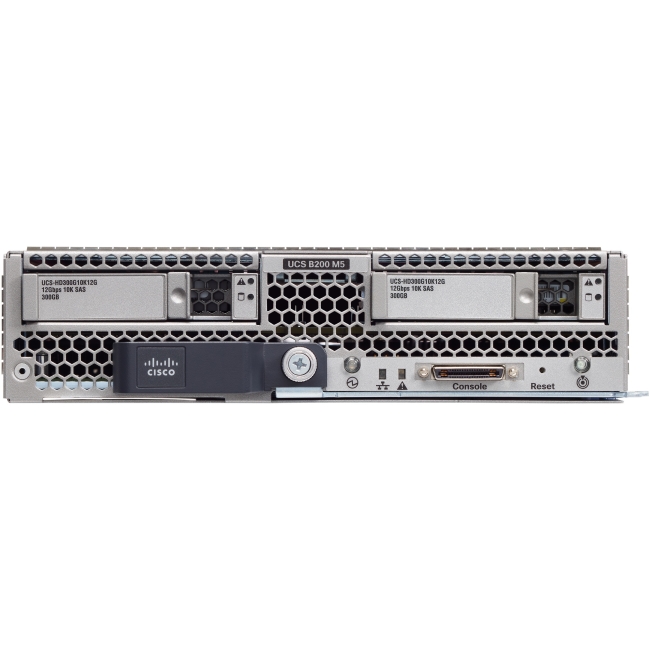

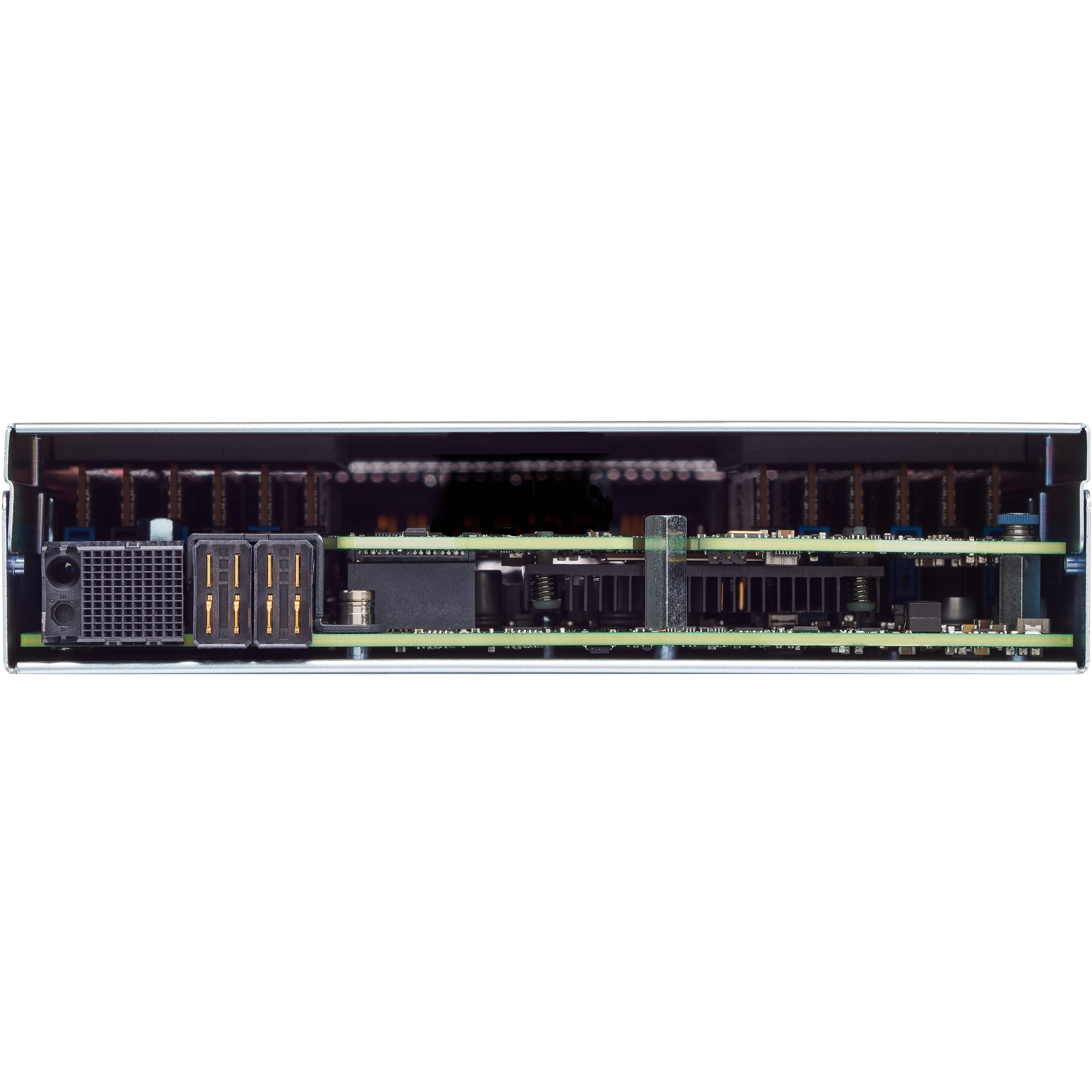

Image may not reflect the actual item.
Price: $16,497.53
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 04, 2025
No Sales Tax except these states
, PO and Wire.
Delivering performance, versatility and density without compromise, the Cisco UCS B200 M5 Blade Server addresses the broadest set of workloads, from IT and web infrastructure through distributed database.
The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
The enterprise-class Cisco UCS B200 M5 blade server extends the capabilities of Cisco's Unified Computing System portfolio in a half-width blade form factor. The Cisco UCS B200 M5 harnesses the power of the latest Intel® Xeon® processor scalable family CPUs with up to 3072 GB of RAM (using 128 GB DIMMs), two solid-state drives (SSDs) or hard disk drives (HDDs), and up to 80 Gbps throughput connectivity.
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | UCS-SP-B200M5-C2 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Series | B200 M5 |
| Product Name | UCS B200 M5 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon Gold |
| Processor Model | 6148 |
| Processor Core | Icosa-core (20 Core) |
| Processor Speed | 2.40 GHz |
| Memory | |
| Standard Memory | 192 GB |
| Maximum Memory Supported | 3 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 24 |
| Number of Occupied Memory Slots | 12 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| Controller Type | Serial ATA |
| RAID Supported | Yes |
| I/O Expansions | |
| Number of Total Expansion Bays | 2 |
| Number of Internal 2.5" Bays | 2 |
| Hot Swappable Bays | Yes |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Physical Characteristics | |
| Form Factor | Blade |
| Height | 2" |
| Width | 8" |
| Depth | 24.4" |
| Weight (Approximate) | 9.50 lb |
| Warranty | |
| Limited Warranty | 3 Year |
