APC

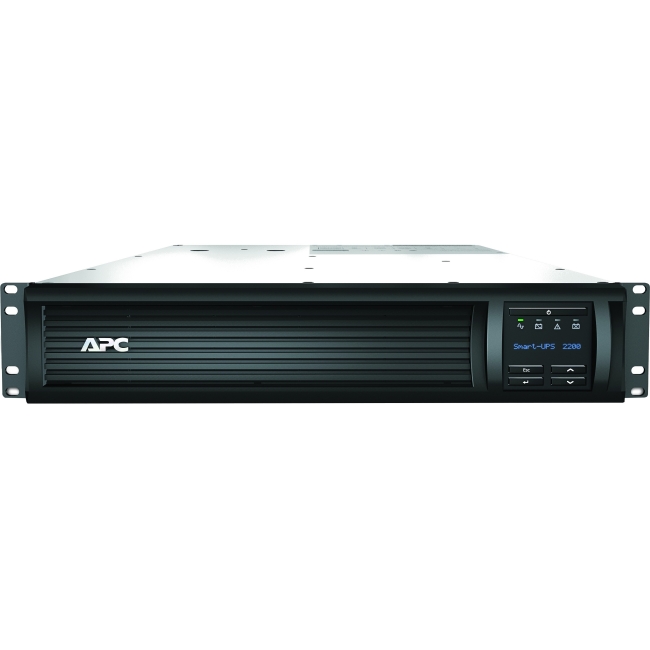

SMT2200RM2UNC APC SMART-UPS 2200VA LCD RM 2U 120V WITH NETWORK CARD
Mfg Part Number: SMT2200RM2UNC , Item #: 2883600
Special Note: Jan 05, 2020
NCNR; If you do not have loading facility, please contact our CST for special handling service.
, PO and Wire.
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 1920VA line interactive 2U rackmount UPS provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6 NEMA 5-15R and 2 NEMA 5-20R outlets. It has a preinstalled Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
| General Information | |
| Manufacturer | Schneider Electric SA |
| Manufacturer Part Number | SMT2200RM2UNC |
| Manufacturer Website Address | http://www.schneider-electric.com |
| Brand Name | APC by Schneider Electric |
| Product Line | Smart-UPS |
| Product Name | Smart-UPS 2200VA LCD RM 2U 120V with Network Card |
| Product Type | Line-interactive UPS |
| Technical Information | |
| Plug/Connector Type | NEMA 5-20P |
| Receptacle Type | NEMA 5-20P |
| Receptacle Detail | 6 x NEMA 5-15R |
| Receptacle Detail | 2 x NEMA 5-20R |
| Number of Battery & Surge Outlets | 8 |
| Cord Length | 8 ft |
| Transfer Time | 4 ms |
| Phase | Single Phase |
| Application/Usage | Network Hub |
| Application/Usage | Server |
| Application/Usage | POS Terminal |
| Application/Usage | Network Router |
| Application/Usage | Network Switch |
| Power Description | |
| Load Capacity (VA) | 1920 VA |
| Load Capacity (Watt) | 1920 W |
| Input Voltage | 120 V AC |
| Output Voltage | 120 V AC |
| Waveform Type | Sine Wave |
| Surge Energy Rating | 530 J |
| Battery Information | |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Typical Battery Recharge Time | 3 Hour |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Height | 3.4" |
| Width | 18.9" |
| Depth | 26.9" |
| Rack Height | 2U |
| Form Factor | Rack-mountable |
| Mounting Preference | Lower |
| Mounting Location | Front |
| Weight (Approximate) | 93.28 lb |
| Miscellaneous | |
| For Country/Region | United States |
| Package Contents | |
| Certifications & Standards | CSA |
| Energy Star | Yes |
| Optimized Energy Efficiency | Yes |
| Product Take Back Program | Yes |
| Mercury Free | Yes |
| RoHS Exemption Information | https://download.schneider-electric.com/files?p_enDocType=Declaration+of+Conformity+%28Sustainability%29&p_Doc_Ref=SMT2200RM2UNC_ROHS_DECLARATION&p_FileName=SMT2200RM2UNCKIT_ROHS_DECLARATION_US.pdf |
| REACH Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=exportPdfReach&pid=465940386&lang=en-us |
| EU RoHS Declaration URL | https://checkaproduct.se.com/DistantRequestDispatcher.aspx?action=export&pid=465940386&lang=en-us |
| Environmental Profile Availability | https://download.schneider-electric.com/files?p_enDocType=Environmental+Disclosure&p_Doc_Ref=ENVPEP1612029EN |
| End of Life Manual Availability | https://download.schneider-electric.com/files?p_enDocType=Circularity+Profile&p_Doc_Ref=ENVEOLI1612029_EN |
| REACH free of SVHC | No |
| WEEE Statement | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Country of Origin | Philippines |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Warranty | |
| Limited Warranty | 3 Year |
| Additional Warranty Information | UPS: 36 month(s)|Battery: 24 month(s) |
| Directly Connected Equipment Guarantee | $150000 Lifetime |
