TAOGLAS
TAOGLAS AA.162.301111 MINI MAG MOUNT GPS/GLONASS 28DB 3M RG174 SMA M 37.8 40.4 10MM
Mfg Part Number: AA.162.301111 , Item #: 2882264
Image may not reflect the actual item.
Price: $43.10
Quantity:
In Stock: 722
Last Updated: Sep 08, 2025
No Sales Tax except these states
, PO and Wire.

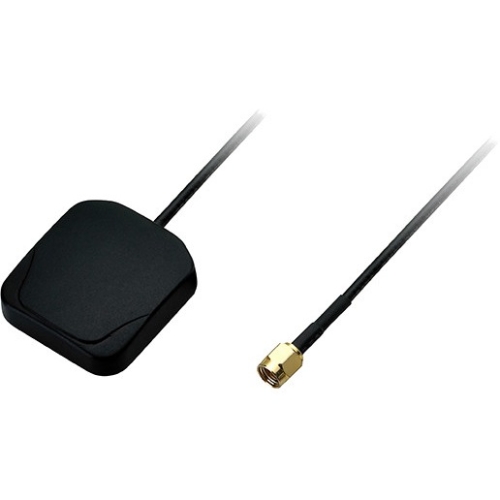

The Ulysses miniature super low profile (only 10mm in height) GNSS antenna is designed for applications which require high positioning accuracy by combining signals from GPS, GALILEO and GLONASS systems. A high gain wide-band patch antenna on an integral ground delivers reliable performance. Fully IP67 waterproof rating allows use in outdoors environments. Front end SAW filter configuration eliminates potential LNA burn-out from nearby out of band radiated power bursts from other antennas that may be co-located nearby.
The antenna is manufactured to strict first tier Automotive quality controlled manufacturing process in TS16949 approved facility.
The antenna is manufactured to strict first tier Automotive quality controlled manufacturing process in TS16949 approved facility.
Main Specification
| General Information | |
| Manufacturer | Taoglas |
| Manufacturer Part Number | AA.162.301111 |
| Manufacturer Website Address | http://www.taoglas.com |
| Brand Name | Taoglas |
| Product Line | Ulysses |
| Product Name | Ulysses Ultra-Low Profile Miniature Magnet Mounted GPS-GLONASS-GALILEO Antenna |
| Packaged Quantity | 1 |
| Product Type | Antenna |
| Package Type | Bulk |
| Technical Information | |
| Frequency Band Type | UHF |
| Operating Frequency Range | 1575 MHz to 1610 MHz |
| Antenna Gain (Isotropic) | 27 dBi |
| Interfaces/Ports | |
| Connector Type | SMA |
| Physical Characteristics | |
| Product Color | Black |
| Height | 0.39" |
| Width | 1.49" |
| Form Factor | Magnetic Mount |
| Weight (Approximate) | 2.08 oz |
| Miscellaneous | |
| Application/Usage | GLONASS |
| Application/Usage | GPS |
| Application/Usage | Outdoor |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
