BLACK BOX

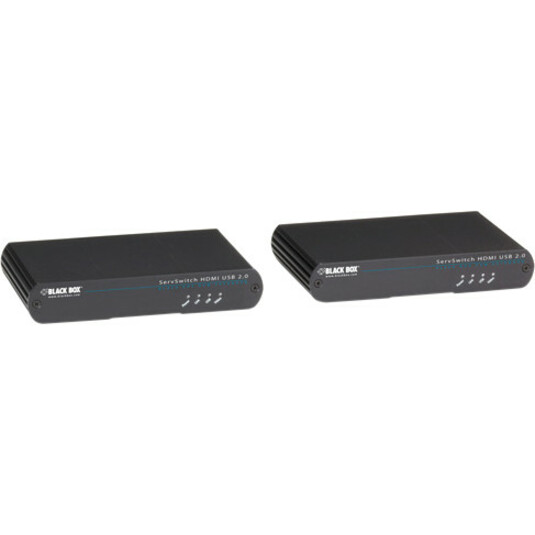

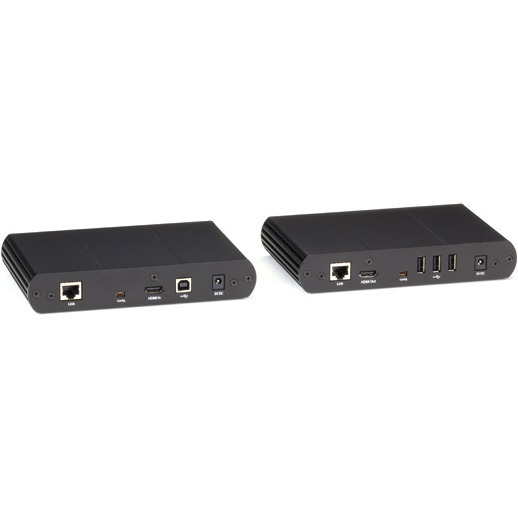

BLACK BOX ACU2500A-R3 KVM EXTENDER HDMI USB 2.0 SINGLE ACCESS CATX

Mfg Part Number:  ACU2500A-R3
Image may not reflect the actual item.
Price: $1,021.98
Quantity:
In Stock: 4
Last Updated: Nov 30, 2025
No Sales Tax except these states
, PO and Wire.

Protect your computer and secure it in a safe place up to 330 feet (100 m) from your workstation, connected with a single inexpensive CATx cable. Supports Full HD video and USB 2.0, including control of the keyboard, mouse, Web cameras, Flash drive, speakers, microphone, and other USB 1.1 and USB 2.0 devices.

The ideal high-resolution KVM extender
The ServSwitch™ HDMI with USB 2.0 KVM Extender preserves the quality of the HDMI video signal and offers real-time transmission without the delays and compression that degrades the high-resolution viewing experience. Now you can take full advantage of the high-def video you get with HDMI and extend those signals 100 meters without compromise. It's ideal for use in applications such as high-end medical imaging, interactive digital signage, home theaters, even industrial controls.

USB HID support
The extender supports of a variety of HIDs. Keyboards and mice are the most common HIDs, but other devices based on HID protocol, including some touch screens, will work as well.

DDC read channel
The DDC read capability enables true EDID information to be received from the attached display. This guarantees optimum plug-and-play support.

Main Specification
General Information
Manufacturer Black Box Corporation
Manufacturer Part Number ACU2500A-R3
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Line ServSwitch
Product Model ACU2500A-R3
Product Name KVM Extender, HDMI, USB 2.0, Single Access, CATx
Product Type KVM Console/Extender
Technical Information
Connectivity Technology Wired
Number of Computers Supported 1
Number of Remote Users Supported 1
Maximum Operating Distance 328.08 ft
Video
Graphic Mode WUXGA
Maximum Video Resolution 1920 x 1200
Interfaces/Ports
Network (RJ-45) Yes
USB Yes
HDMI Yes
Number of HDMI Ports 2
Number of Network (RJ-45) Ports 2
Number of USB Ports 6
Power Description
Input Voltage 120 V AC
Input Voltage 230 V AC
Physical Characteristics
Transmitter Height 4.40"
Transmitter Width 6.90"
Transmitter Depth 1.20"
Receiver Height 4.40"
Receiver Width 6.90"
Receiver Depth 1.20"
Miscellaneous
Package Contents
  • Transmitter
  • Receiver
  • 1 x USB Type A to B Cable
  • 2 x 5-VDC Power Supplies
  • 2 x 6-ft. Power Cords
  • 1 x 6-ft. HDMI Cable
  • Rubber Feet
Certifications & Standards CE
Platform Supported Linux
Platform Supported Mac
Platform Supported PC
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Country of Origin China
Warranty
Limited Warranty 1 Year
