TRIPP LITE

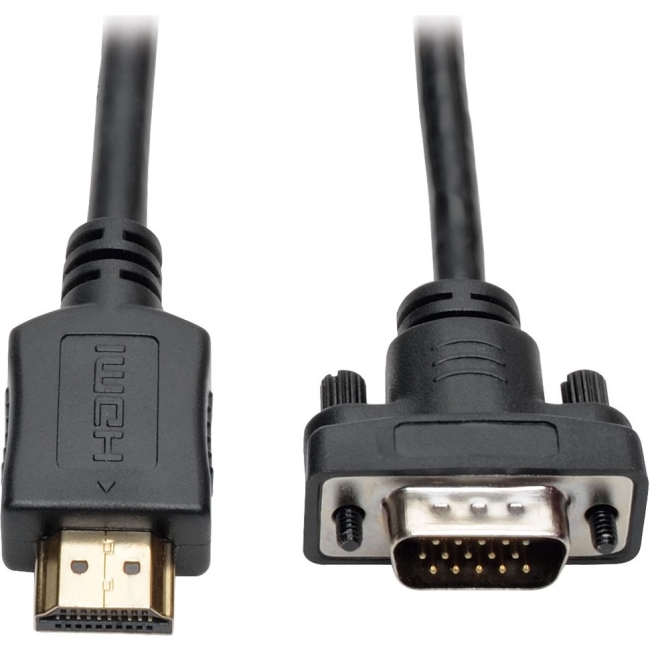

TRIPP LITE P566-010-VGA 10FT HDMI TO VGA M/M ADAPTER CABLE ACTIVE LOW PROFILE HD15 1080P
Mfg Part Number: P566-010-VGA , Item #: 2880485
, PO and Wire.
The P566-010-VGA HDMI to VGA Active Converter Cable connects a computer, cable box, Blu-ray™ player or other HDMI source to the VGA port on a monitor, projector or television. This allows you to use your existing VGA display instead of investing time, effort and money into upgrading to a new HDMI display. The low-profile HD15 connector fits neatly into tight spaces without jamming between the monitor and wall or blocking nearby connections.
Ideal for displaying video on a large monitor or digital sign, this 10-foot converter cable supports high-definition video resolutions up to 1920 x 1200 at 60 Hz. No software or drivers are required. If additional power is needed, connect a USB cable (sold separately) between the cable's USB Micro-B port and a USB wall charger or computer port.
Foil and braid shielding delivers reliable, error-free signal quality and protection from EMI/RFI line noise that can distort or destroy data. The corrosion-resistant gold-plated HDMI connector and contacts provide maximum conductivity and minimize data loss. Integral strain relief gives the cable extra flexibility, reduces stress, and helps the cable and connectors move freely without cracking.
Features
Send High-Definition HDMI Video Signals to a VGA Display
- Connects HDMI source to a VGA monitor, projector or TV
- Ideal for displaying video on large monitor or digital sign
- Low-profile HD15 connector fits neatly into tight spaces
- Plug-and-play-no software or drivers necessary
Vibrant, Superior Video Quality
- Supports HD video resolutions up to 1920 x 1200 @ 60 Hz
Superior Materials for Superior Performance
- Foil and braid shielding for reliable protection from EMI/RFI line noise
- Gold-plated HDMI connector and contacts for maximum conductivity and minimum data loss
- Integral strain relief reduces stress and adds flexibility
- Impedance-matched twisted-pair construction reduces crosstalk and interference
- USB Micro-B port provided in case additional power is needed
| General Information | |
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P566-010-VGA |
| Manufacturer Website Address | https://tripplite.eaton.com/ |
| Brand Name | Tripp Lite by Eaton |
| Product Model | P566-010-VGA |
| Product Name | P566-010-VGA HDMI to VGA Active Converter Cable, 10 ft. |
| Product Type | Video Cable |
| Technical Information | |
| Cable Type | HDMI/VGA |
| Cable Length | 10 ft |
| Connector Type on First End | HDMI Digital Audio/Video - Male |
| Connector on First End Details | 1 x HDMI Digital Audio/Video - Male |
| Connector Type on Second End | HD-15 - Male |
| Connector on Second End Details | 1 x 15-pin HD-15 - Male |
| Connector Plating | Gold |
| Contact Plating | Gold |
| Shielding | Yes |
| Device Supported | Monitor |
| Device Supported | TV |
| Device Supported | Blu-ray Player |
| Device Supported | Video Device |
| Device Supported | Projector |
| Supported Resolution | 1920 x 1200 |
| Features | Corrosion Resistant |
| Features | Flexible |
| Features | EMI/RF Protection |
| Features | Active |
| Physical Characteristics | |
| Color Family | Black |
| Product Color | Black |
| Shipping Height | 10" |
| Shipping Width | 8" |
| Shipping Weight (Approximate) | 6.88 oz |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Warranty | |
| Limited Warranty | 3 Year |
Connector Cables
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
