STARTECH

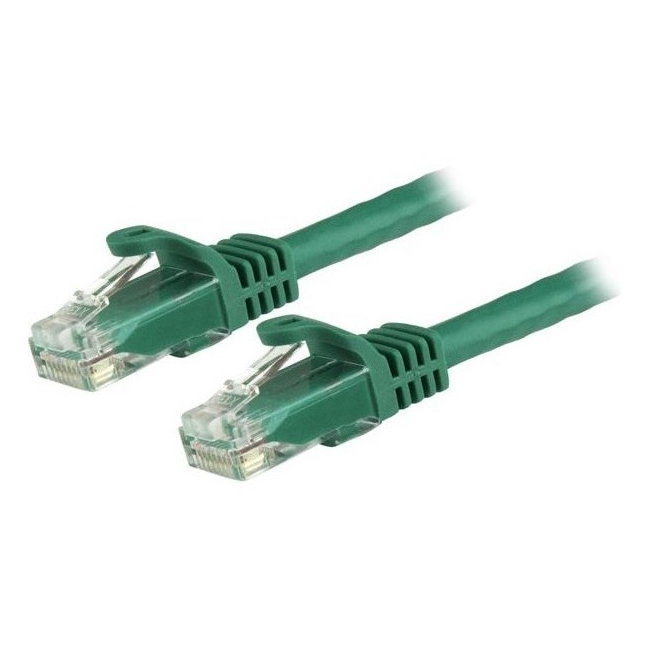

STARTECH N6PATCH1GN 1FT CAT6 GREEN SNAGLESS ETHERNET CABLE UTP
Mfg Part Number: N6PATCH1GN , Item #: 2873871
, PO and Wire.
This Cat6cable delivers reliable Gigabit network connections, which ensures high-performance capability for your demanding Ethernet applications.
Find the length and color you need
This 1-foot green patch cable is perfect for use in server closets, patch panels and with Ethernet hubs. The cable is intended for short-distance applications such as point-to-point in-rack and across-rack network switch and server connections.
For easier network installations, our Cat6patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.
Snagless RJ45 clips help protect your network connections
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features moldedboots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat6 Ethernet cables. Each of our patch cables is manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.
24-gaugewire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWGcopper.
50-micron gold connectors provide peak conductivity
You can rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATCH1GN is backed by StarTech.com's lifetime warranty for guaranteed reliability.
More from the Manufacturer
| General Information | |
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH1GN |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Cat6 Patch Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Technical Information | |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 1 ft |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Conductor | Copper |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | IP Phone |
| Device Supported | Workstation |
| Device Supported | Distribution Panel |
| Device Supported | Server |
| Device Supported | Network Device |
| Device Supported | Wall Outlet |
| Device Supported | Patch Panel |
| Device Supported | Hub |
| Device Supported | Network Switch |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Boot Type | Molded |
| Features | Flexible |
| Features | Strain Relief |
| Features | PoE |
| Features | Break Resistant |
| Features | Damage Resistant |
| Features | PoE++ |
| Features | Bend Resistant |
| Features | Corrosion Resistant |
| Features | Near End Cross Talk (NEXT) |
| Features | Fray Resistant |
| Features | Rust Resistant |
| Features | Stranded |
| Features | Molded |
| Physical Characteristics | |
| Color Family | Green |
| Product Color | Green |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 0.05 lb |
| Shipping Height | 0.39" |
| Shipping Width | 7.87" |
| Shipping Weight (Approximate) | 1.12 oz |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Warranty | |
| Limited Warranty | Lifetime |
WARNING:: The plastic used in cable products can expose you to lead and lead components,
chemicals known to the State of California to cause cancer, birth defects, or other reproductive harm.
For more information go to www.P65Warnings.ca.gov
