Overview

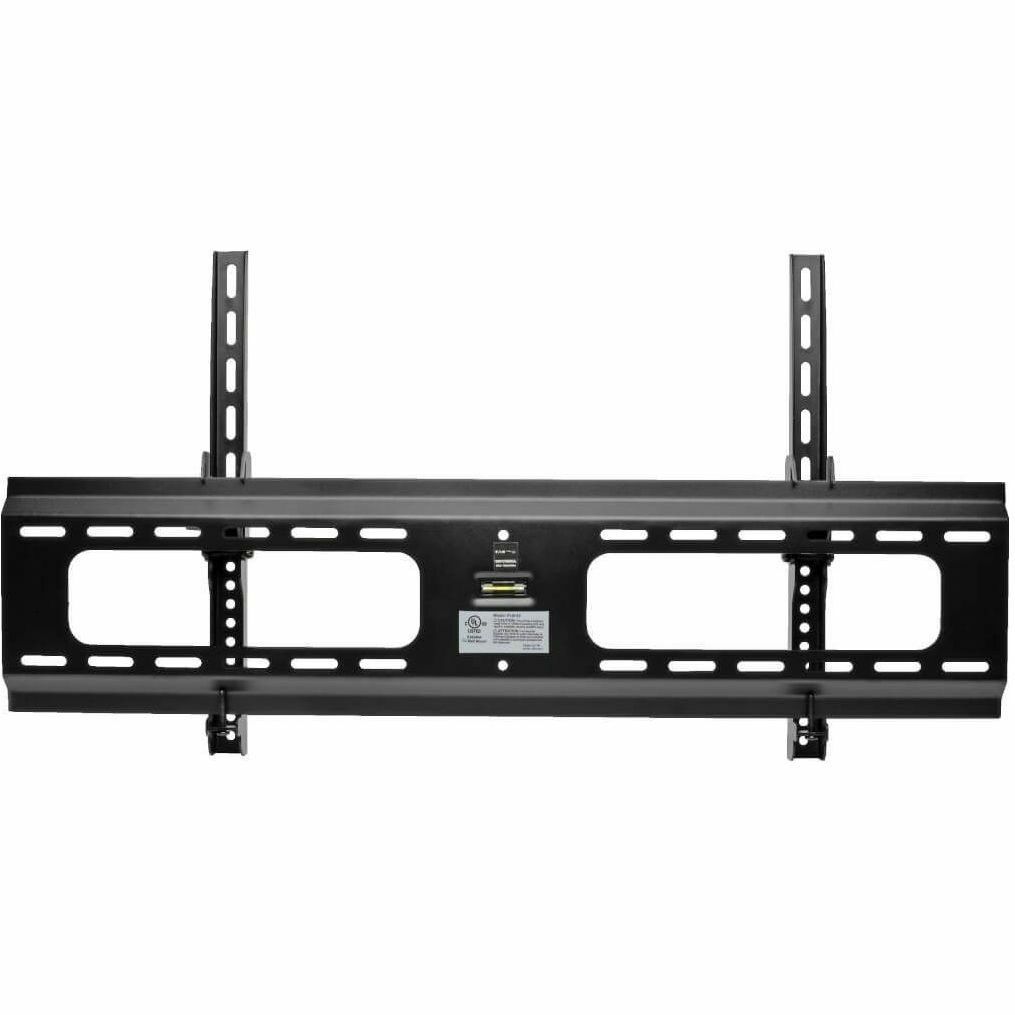

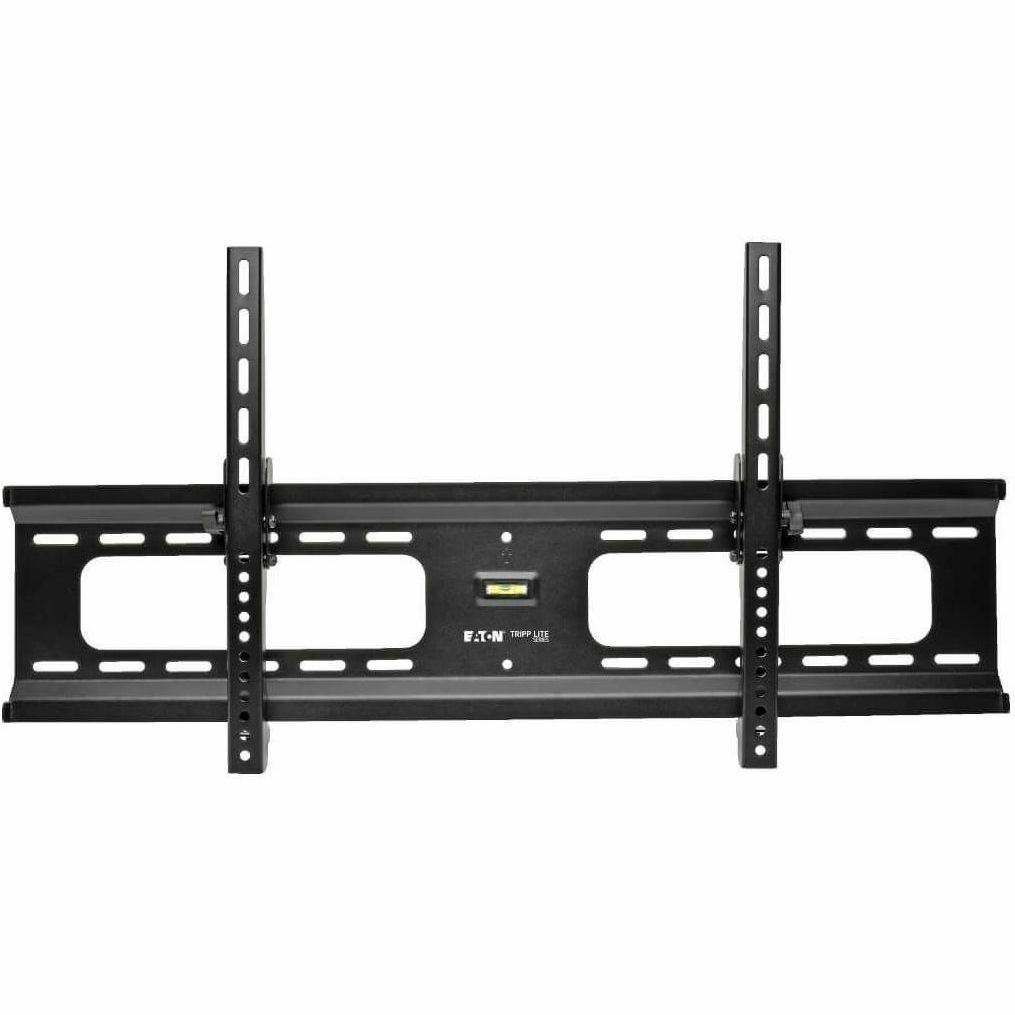

The VESA-compliant DWT3780XUL Heavy-Duty Tilt Wall Mount allows you to mount your flat-panel or curved-screen television, monitor or other display on the wall. Recommended for home theaters, classrooms, boardrooms, hotels, bars and restaurants, it fits most displays from 37 to 80 inches.
A -10° to 0° tilt capability minimizes glare and provides comfortable viewing from multiple angles. Adjusting the tilt angle is simple using the easy-grip twin knobs located on the wall plate.
The mount is concealed behind the display to give a sleek, professional appearance. An open back enables easy access to cabling. Built-in bubble level allows accurate wall plate leveling. Durable all-metal frame with scratch-resistant powder-coated finish supports up to 165 pounds. Mounting hardware included.
Conforms to VESA-compliant displays with any of the following mounting hole patterns: 200 x 200 mm, 300 x 300 mm, 400 x 200 mm, 400 x 400 mm, 600 x 400 mm and 800 x 400 mm.
This mount has been tested in accordance with UL Standard 2442.
Features
Mounts Your TV or Monitor to the Wall
Convenient Angle Adjustment
Durable Metal Construction
General Information | |
Manufacturer | Tripp Lite by Eaton |
Manufacturer Part Number | DWT3780XUL |
Manufacturer Website Address | https://tripplite.eaton.com/ |
Brand Name | Tripp Lite by Eaton |
Product Model | DWT3780XUL |
Product Name | DWT3780XUL Wall Mount |
Product Type | Wall Mount |
Product Information | |
Device Supported | Monitor |
Maximum Load Capacity | 165 lb |
Maximum Screen Size Supported | 80" |
Physical Characteristics | |
Color Family | Black |
Product Color | Black |
Mounting Pattern | 200 x 200 |
Mounting Pattern | 600 x 400 |
Mounting Pattern | 300 x 300 |
Mounting Pattern | 400 x 200 |
Mounting Pattern | 800 x 400 |
Mounting Pattern | 400 x 400 |
Height | 33.5" |
Width | 1.8" |
Depth | 8" |
Weight (Approximate) | 7.89 lb |
Miscellaneous | |
Package Contents |
|
Country of Origin | China |
Environmentally Friendly | Yes |
Warranty | |
Limited Warranty | 5 Year |
