CISCO

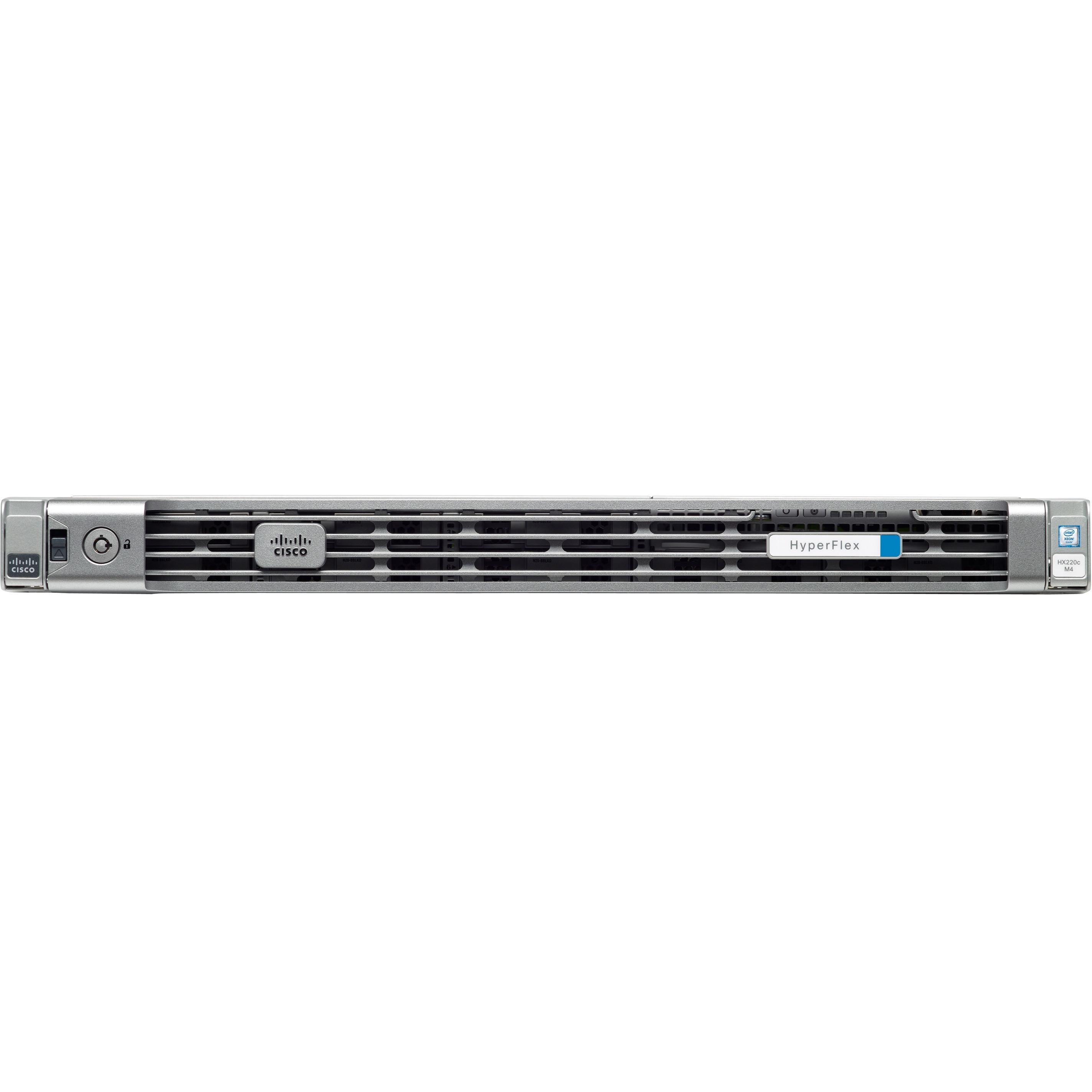

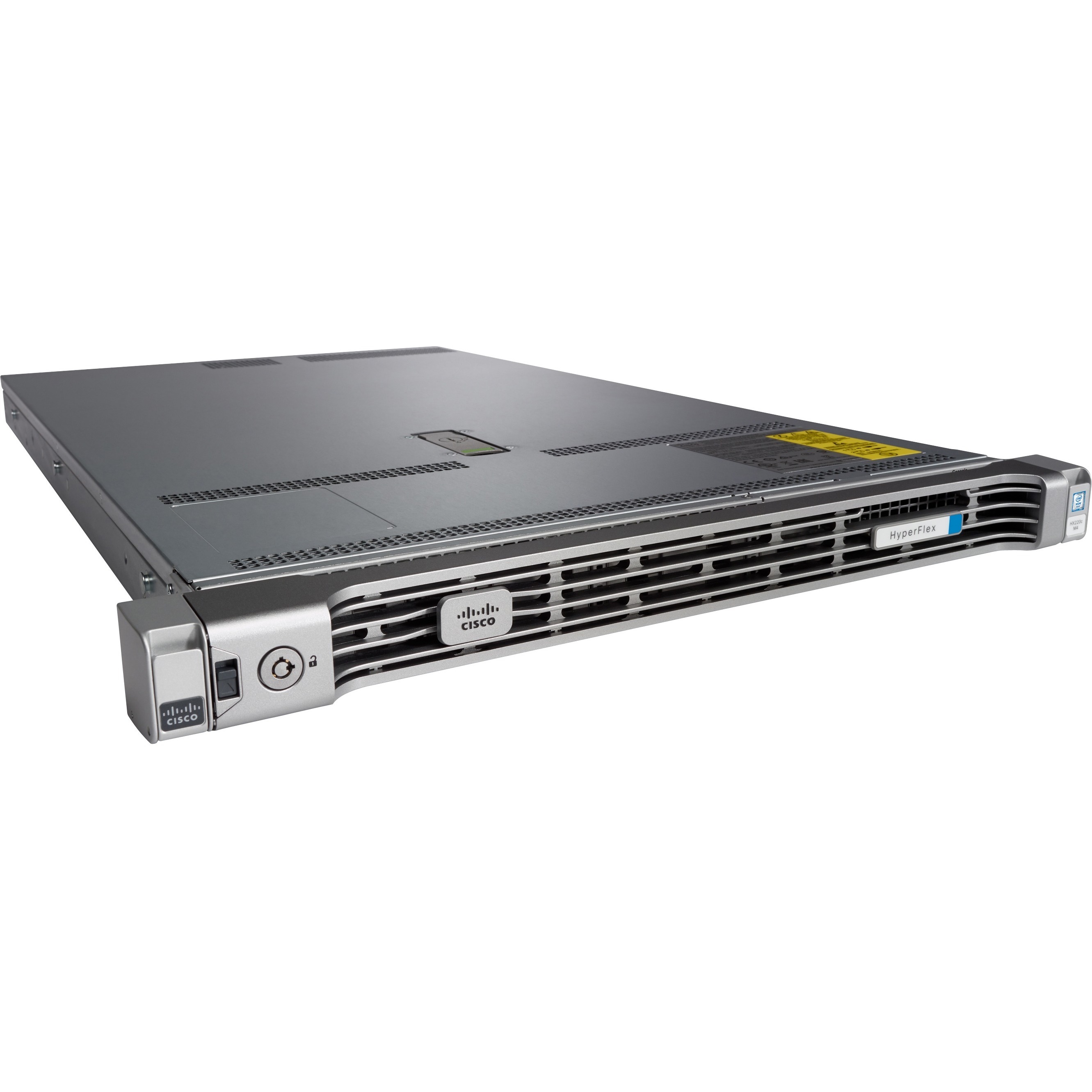

CISCO HX-SP-220M4-BR2 UCS SP HX220C HYPERFLEX EDGE 2 SYS
Mfg Part Number: HX-SP-220M4-BR2 , Item #: 2855056
Image may not reflect the actual item.
Price: $11,402.79
+ Free Shipping
Quantity:
In Stock/Mfg Direct Ship
Last Updated: Jun 09, 2025
No Sales Tax except these states
, PO and Wire.
Cisco HyperFlex™ Systems unlock the full potential of hyperconvergence. The systems are based on an end-to-end software-defined infrastructure, combining software-defined computing in the form of Cisco Unified Computing System (Cisco UCS) servers; software-defined storage with the powerful Cisco HX Data Platform and software-defined networking with the Cisco UCS fabric that will integrate smoothly with Cisco Application Centric Infrastructure (Cisco ACI™). Together with a single point of connectivity and hardware management, these technologies deliver a preintegrated and adaptable cluster that is ready to provide a unified pool of resources to power applications as your business needs dictate.
Main Specification
| General Information | |
| Manufacturer | Cisco Systems, Inc |
| Manufacturer Part Number | HX-SP-220M4-BR2 |
| Manufacturer Website Address | http://www.cisco.com |
| Brand Name | Cisco |
| Product Line | HyperFlex |
| Product Series | HX220c M4 |
| Product Name | HyperFlex HX220c M4 Server |
| Product Type | Server |
| Processor | |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon |
| Processor Model | E5-2630 v4 |
| Processor Core | Deca-core (10 Core) |
| Processor Speed | 2.20 GHz |
| Memory | |
| Standard Memory | 128 GB |
| Maximum Memory Supported | 1.50 TB |
| Memory Technology | DDR4 SDRAM |
| Total Number of Memory Slots | 24 |
| Number of Occupied Memory Slots | 8 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | No |
| I/O Expansions | |
| Number of Total Expansion Bays | 8 |
| Number of Internal 2.5" Bays | 8 |
| Hot Swappable Bays | Yes |
| Display & Graphics | |
| Graphics Controller Model | G200e |
| Graphics Memory Capacity | 8 MB |
| Network & Communication | |
| Ethernet Technology | Gigabit Ethernet |
| Power Description | |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 2 |
| Maximum Power Supply Wattage | 770 W |
| Redundant Power Supply | Yes |
| Physical Characteristics | |
| Form Factor | Rack |
| Rack Height | 1U |
| Height | 1.7" |
| Width | 19" |
| Depth | 31" |
| Weight (Approximate) | 37.92 lb |
| Warranty | |
| Limited Warranty | 3 Year |
Cable Management
Connector Cables
Fasteners
Hard Drives/Solid State Drives
Microprocessors
CISCO
(HX-CPU-E52609E)
Intel Xeon E5-2609V4 - 1.7 GHz - 8-core - 8 threads - 20 MB cache - for Hyperflex System HX220c M4, HX220c M4S, HX240c M4, UCS Smart Play Select HXAF240
Intel Xeon E5-2609V4 - 1.7 GHz - 8-core - 8 threads - 20 MB cache - for Hyperflex System HX220c M4, HX220c M4S, HX240c M4, UCS Smart Play Select HXAF240
$580.89
CISCO
(HX-CPU-E52640E)
Intel Xeon E5-2640V4 - 2.4 GHz - 10-core - 20 threads - 25 MB cache - for Hyperflex System HX220c M4, HX220c M4S, HX240c M4, UCS Smart Play Select HXAF240
Intel Xeon E5-2640V4 - 2.4 GHz - 10-core - 20 threads - 25 MB cache - for Hyperflex System HX220c M4, HX220c M4S, HX240c M4, UCS Smart Play Select HXAF240
$1,902.67
Mounting Kits
Network Interface Cards
CISCO
(UCSC-MLOM-CSC-02)
Cisco UCS Virtual Interface Card 1227 - Network adapter - PCI Express 2.0 x8 - 10Gb Ethernet / FCoE x 2 - for UCS C220 M4, Smart Play 8 C220
Cisco UCS Virtual Interface Card 1227 - Network adapter - PCI Express 2.0 x8 - 10Gb Ethernet / FCoE x 2 - for UCS C220 M4, Smart Play 8 C220
$952.90
PC Fans/Heat Sinks
CISCO
(UCSC-FAN-C220M4=)
Cisco - Fan unit - for UCS SmartPlay Select C220 M4, SmartPlay Select C220 M4S, SmartPlay Select C220 M4SX
Cisco - Fan unit - for UCS SmartPlay Select C220 M4, SmartPlay Select C220 M4S, SmartPlay Select C220 M4SX
$116.23
Panels
Power Cords
Power Modules
RAM Modules
CISCO
(UCS-ML-1X644RV-A=)
Cisco - DDR4 - 64 GB - LRDIMM 288-pin - 2400 MHz / PC4-19200 - 1.2 V - Load-Reduced - ECC - for UCS B200 M4, Smart Play 8 B200, SmartPlay B200 M4, SmartPlay Select B200 M4
Cisco - DDR4 - 64 GB - LRDIMM 288-pin - 2400 MHz / PC4-19200 - 1.2 V - Load-Reduced - ECC - for UCS B200 M4, Smart Play 8 B200, SmartPlay B200 M4, SmartPlay Select B200 M4
$4,089.41
Rack Equipment
Riser Cards
SCSI/RAID Controllers
Software Licensing
Thermal Grease
