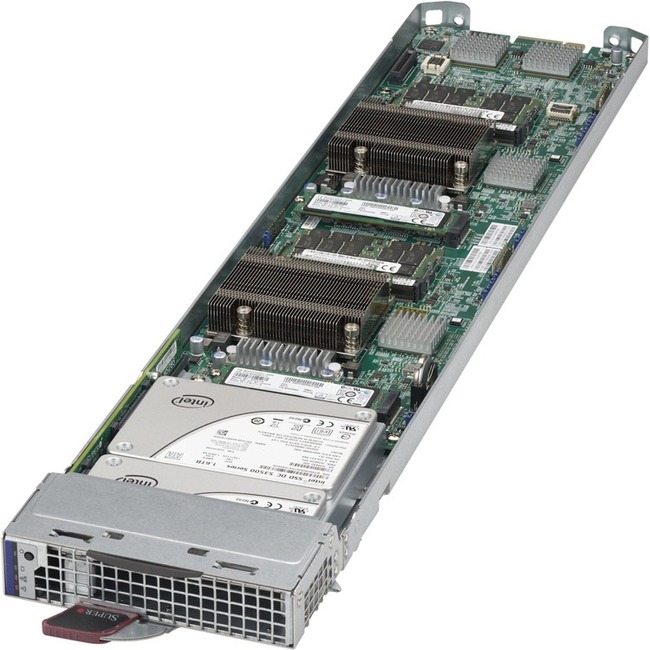

Supermicro MicroBlade MBI-6219G-T8HX - Server - blade - 2-way - 2 x Xeon E3-1585V5 - RAM 0 MB - no HDD - Iris Pro Graphics P580 - no OS - monitor: none

The Supermicro MicroBlade microserver represents an entirely new type of computing platform. It is a powerful and flexible extreme-density 6U/3U all-in-one total system that features 28/14 hot-swappable MicroBlade Servers supporting 28/14 Newest Dual-Node Xeon UP systems with Intel E3-1200 v5 family configurations with up to 2 SSDs/1 HDD per Node. The 6U/3U MicroBlade enclosure can incorporate up to 2 Chassis Management Modules, and up to 2 Switch Modules for efficient, high-bandwidth communications. It can incorporate up to 8 redundant (N+1 or N+N) 1600/2000W High-Efficiency (95%/96%) power supplies with cooling fans. This innovative new generation architecture includes microserver, networking, storage, and unified remote management for cloud computing, Video Streaming, Content Delivery, Social Networking, Desktop Virtualization and Remote Workstation applications.

General Information
Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBI-6219G-T8HX
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	MicroBlade
Product Model	MBI-6219G-T8HX
Product Name	MicroBlade MBI-6219G-T8HX
Product Type	Server
Processor
Number of Processors Supported	1
Number of Processors Installed	1
Processor Type	Xeon
Processor Model	E3-1585 v5
Memory
Maximum Memory Supported	32 GB
Memory Technology	DDR4 SDRAM
Total Number of Memory Slots	2
Controllers
Controller Type	Serial ATA/600
I/O Expansions
Number of Total Expansion Bays	1
Number of Internal 2.5" Bays	1
Network & Communication
Ethernet Technology	10 Gigabit Ethernet
Physical Characteristics
Form Factor	Blade
Height	1.2"
Width	4.9"
Depth	23.2"
Miscellaneous
Package Contents	MicroBlade MBI-6219G-T8HX 1x MicroBlade Board 1 x M628 MicroBlade Skylake UP transcoding (complete assembly) 2 x M628 Sled AOM-BPN Bracket 1 x M628 Sled Node Cover with asset tag 1 x M628 Sled Front Window with asset tag opening 1 x M628 MicroBlade Skylake UP transcoding Sled Base 1 x AOM-BPN-MS28HS-P
