WESTERN DIGITAL

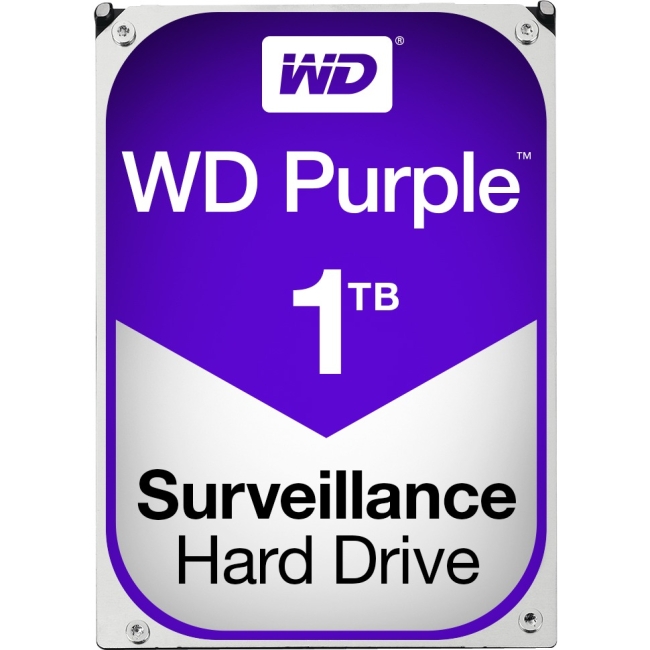

WESTERN DIGITAL WD10PURZ 1TB AV SATA 6 Gbs 3.5" 64MB
Mfg Part Number: WD10PURZ , Item #: 2843757
, PO and Wire.
Uncompromising Storage
Built for 24/7, always-on, high-definition security systems. With a supported workload rate of up to 180 TB/yr1 and support for up to 64 cameras, WD Purple drives are optimized for surveillance systems. WD Purple 8TB, 10TB, 12TB & 14TB drives are designed to support Deep Learning analytics in AI capable NVRs, and feature an enhanced workload rating of up to 360TB/yr
The Right Drive for the Job
WD Purple drives have been engineered specifically for the extreme demands of high temperature, 24/7 surveillance systems.
Performance You Can Trust
From a worldwide leader in the storage industry, WD Purple is engineered for quality video playback when you need it most.
Expand Your View to 64
WD Purple drives are optimized to support up to 64 cameras, giving you flexibility to upgrade or expand your security system.
Seamless Integration
With A Wide Range Of Industry-Leading Enclosures And Chipsets Supported, You're Sure To Find The Configuration And Compatibility That's Right For Your Nvr.
Less Is More
Low Power Consumption Is A Must In A High-Temperature, Always-On Surveillance Environment. Intelliseek Technology Helps Reduce Damaging Ambient Noise And Vibrations.
Designed For Surveillance
The WD Purple Drive Is Designed For Both Dvr And Nvr Security Systems, And Is Compatible With Many Of The The Leading Surveillance And Security Manufacturers. We Can Help You Find The Perfect Storage For Your System.
3-Year Limited Warranty
Every WD Purple Drive Comes With A 3-Year Limited Warranty, So You Can Be Confident Of Your Surveillance Storage.
| General Information | |
| Manufacturer | Western Digital Corporation |
| Manufacturer Part Number | WD10PURZ |
| Manufacturer Website Address | http://www.wdc.com |
| Brand Name | Western Digital |
| Product Line | Purple |
| Product Model | WD10PURZ |
| Product Name | Purple Surveillance Hard Drive - 1TB |
| Product Type | Hard Drive |
| Technical Information | |
| Storage Capacity | 1 TB |
| Recording Technology | Conventional Magnetic Recording (CMR) |
| Drive Performance | |
| Spindle Speed (rpm) | 5400 |
| Buffer | 64 MB |
| Endurance (TBW) | 360 TB |
| Interfaces/Ports | |
| Drive Interface | SATA |
| Drive Interface Standard | SATA/600 |
| Physical Characteristics | |
| Drive Type | Internal |
| Form Factor | 3.5" |
| Height | 1" |
| Width | 4" |
| Length | 5.8" |
| Weight (Approximate) | 15.84 oz |
| Miscellaneous | |
| Device Supported | Video Surveillance System |
| Device Supported | Network Video Recorder |
| Device Supported | Digital Video Recorder |
| Device Supported | Camera |
| Country of Origin | Thailand |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | China Restriction of Hazardous Substances (China RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Warranty | |
| Limited Warranty | 3 Year |
Specifications
- Mfr Part Number: WD10PURZ
- Capacity: 1 TB
- Rotational Speed: 5400RPM
- Cache: 64 MB
- Interface: SATA 6Gb/s
- Data Transfer Rate (Max):
- Buffer to Host: 6 Gb/s
- Host to/from Drive (Sustained): 110 MB/s
- Shock:
- Operating: 30Gs @ 2ms (read/write); 65Gs @ 2ms (read)
- Non-operating: 350Gs @ 2ms
- Operating: 30Gs @ 2ms (read/write); 65Gs @ 2ms (read)
- Acoustics:
- Idle Mode: 21 dBA
- Seek Mode: 22Â dBA (average)
- Power Management:
- Read/Write: 3.3 W
- Idle: 2.9 W
- Standby: 0.4Â W
- Sleep: 0.4Â W
- Read/Write: 3.3 W
- Form Factor: 3.5 inch
- Dimensions (WxLxH): 4.000 x 5.787 x 1.028 inch / 101.6 x 147.0 x 26.1 mm
- Weight: 0.99 lbs / 0.45 kg
- RoHS Compliant
