Thermaltake View 31 RGB Dual Tempered Glass SPCC ATX Mid Tower Tt LCS Certified Gaming Computer Case with 3 RGB LED Ring Fan Pre-installed CA-1H8-00M1WN-01

The View 31 Tempered Glass RGB Edition mid tower chassis features dual durable 4mm thick tempered glass window, riser GPU support bracket with optional PCI-e riser cable, and three preinstalled patented 140mm Riing RGB LED fans, which give users the option of 256 color selections while ensuring outstanding cooling performance. The View 31 TG RGB supports the latest PC hardware and all high-end GPU solutions, guarantees on unparalleled expandability for high-end configurations and liquid cooling system to satisfy the market where users have opted for stylish PC chassis with advanced features and aesthetic appeal.

Tt LCS Certified

Tt LCS Certified is a Thermaltake exclusive certification applied to only products that pass the design and hardcore enthusiasts standards that a true LCS chassis should be held to. The Tt LCS certification was created so that we at Thermaltake can designate to all power users which chassis have been tested to be best compatible with extreme liquid cooling configurations to ensure you get the best performance from the best features and fitment.

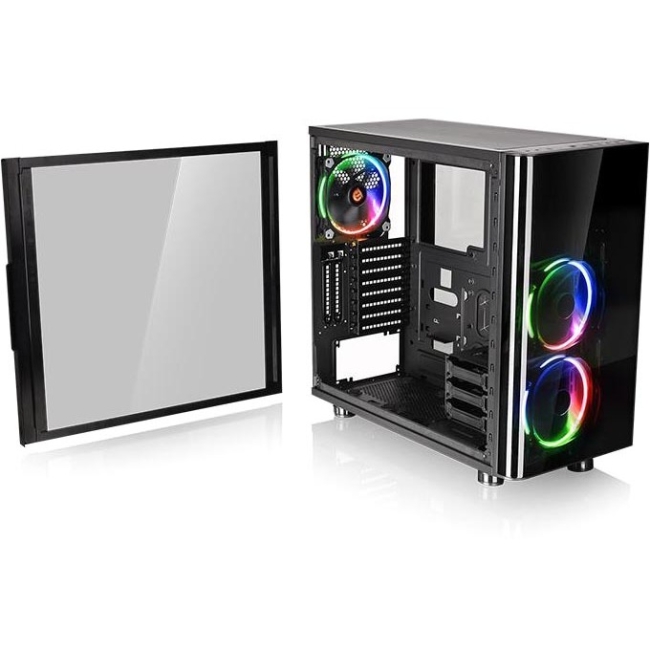

Left and Right 4 mm Thick Tempered Glass Window Design

View 31 TG RGB with left and right 4 mm thick tempered glass window guarantees the durability of the window; moreover, the enlarged window design permits users to fully display and admire all components of the liquid-cooling system. Show off your dedicated set in the subtlest manner!

Fully Modular Concept

The View 31 TG RGB comes with fully modular drive cages that provide the ease of installation/removal and maximize the interior space for custom cooling loop. Especially, the tool-less drive bay design allows users to freely interchange the 3.5" and 2.5" hard-drives to suit their particular needs.

Riser GPU Support Bracket

Specially designed with dual GPU placement, the View 31 TG RGB has the support for vertical graphic card layout with dual PCI-E slots design. The PCI-e riser cable is optional. Plus, the included riser GPU support bracket not only can prevent the graphic card from sagging, but also helps to reduce the weight on the motherboard. Thermaltake PCI-e X16 Riser Cable (Optional) - Support a wide range of GPU solutions.

Dust Reduction

Magnetic fan filter on the top simply attaches the filter for dust filtration. Super fine fan filters with excellent protection and reduction against dirt and dust at the bottom.

Made for High-End PCs with Outstanding Expandability

The View 31 TG RGB features its cable management with maximum 50mm in width, and supports up to a tower CPU cooler with maximum height 180mm, and a dual expansion slot VGA of up to 420mm in length without HDD rack. Moreover, the View 31 TG RGB has the ability to accommodate multiple 3.5"/2.5" storage devices at the same time. Most importantly, the hidden drive bay design guarantees expandability for more liquid cooling components.

Advanced Ventilation

The View 31 TG RGB Series delivers advanced cooling performance for DIY/AIO liquid cooling and air cooling systems. With wide top-to-bottom side ventilation grills, the View 31 TG RGB maximizes the air intake with three built-in 140mm Riing RGB LED fans. It includes options for up to (3) 120mm or 140mm front fans, combined with (2) bottom mount 120mm fan locations for maximum fan space selection. Dissipate heat properly with (1) rear built-in 140mm fan and (3) sectional top mounts to manage proper air flow in and out.

General Information
Manufacturer	Thermaltake Technology Co., Ltd
Manufacturer Part Number	CA-1H8-00M1WN-01
Manufacturer Website Address	http://www.thermaltakeusa.com
Brand Name	Thermaltake
Product Line	View
Product Model	31
Product Name	View 31 Tempered Glass RGB Edition Mid Tower Chassis
Product Type	Computer Case
Technical Information
Motherboard Supported	Mini ITX
Motherboard Supported	ATX
Motherboard Supported	Micro ATX
Number of Fans Supported	9
Number of Fans Installed	2
Installed Fan Size	5.51"
Bays
Number of Internal 3.5" Bays	3
Number of Total Expansion Bays	3
I/O Expansions
Total Number of Expansion Slots	10
Interfaces/Ports
Total Number of USB Ports	4
Total Number of Audio In Ports	1
Total Number of Audio Out Ports	1
Power Description
Power Supply Installed	No
Number of Power Supplies Supported	1
Physical Characteristics
Product Material	Tempered Glass
Product Material	SPCC
Form Factor	Mid-tower
Height	19.6"
Width	9.8"
Depth	20.1"
Weight (Approximate)	23.59 lb

Specifications

• Mfr Part Number: CA-1H8-00M1WN-01
• Case Type: ATX Mid Tower
• Color: Black
• Material: SPCC
• M/B Type: ATX (12.0" x 9.6"), MicroATX (9.6" x 9.6"), Mini ITX (6.7" x 6.7")

• Drive Bays: 3
  • Internal Bay: 3x 3.5" or 2.5"
• Expansion Slots: 8 + 2
• Cooling System:
  • Front (Intake): 2x 140 x 140 x 25 mm Riing RGB Fans (1400rpm, 28dBA)
  • Rear (Exhaust): 1x 140 x 140 x 25 mm Riing RGB Fan (1400rpm, 28dBA)
  • Liquid Cooling System Upgradable: Supports 1/2", 3/8", 1/4" water tube
• Side Windows: Yes, 2x 4mm Tempered Glass (Left & Right)
• Front I/O Panel: 2x USB 3.0 Ports, 2x USB 2.0 Ports, 1x HD Audio
• Maximum Compatibility:
  • VGA Card Length: 278 mm (with HDD rack), 420 mm (w/o HDD rack)
  • CPU Cooler Height: 180 mm
  • PSU Length: 180 mm (w/ one Bottom Fan), 220 mm (w/o Bottom Fan)
• Power Supply: None, Supports Standard PS2 Power Supply (optional)
• Dimensions (WxDxH): 9.8 x 20.1 x 19.5 inch / 250.0 x 511.0 x 497.0 mm
• Weight: 23.6 lbs / 10.7 kg
